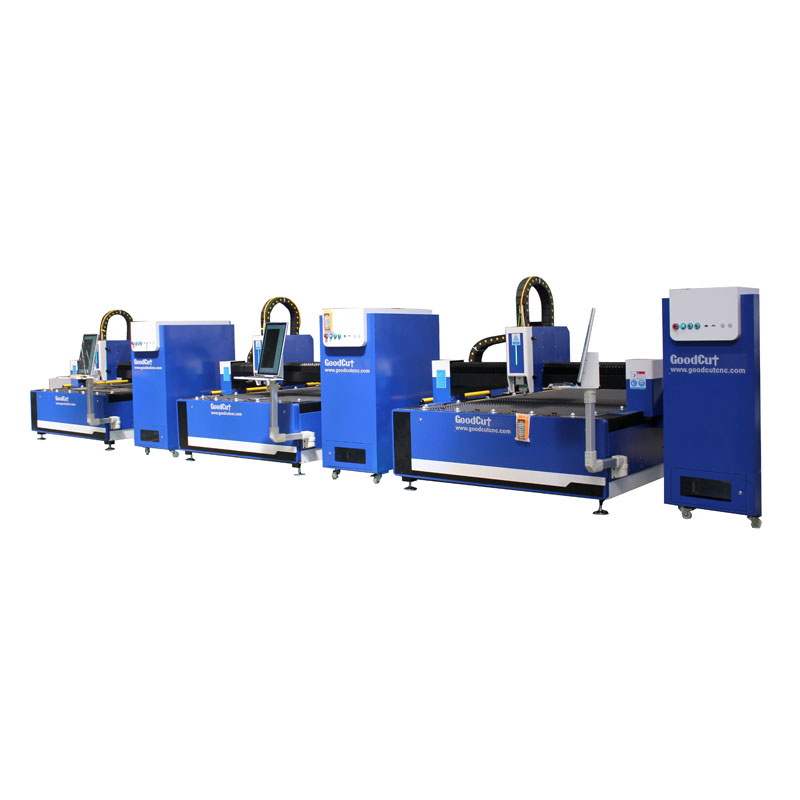

GC1530F Fiber Laser Cutting Machine with Independent Cabinet for SS CS MS Al Cu Cutting

  • 1500*3000mm
  • Raycus Max IPG Laser source
  • Raytools laser head
  • CypCut controller
  • Product description: 1500*3000mm fiber laser plate cutter Raycus, IPG, MAX laser source 1000w-8000w laser source for optional Japan Yaskawa/Fuji servo motor driver
  • INQUIRY   EMAIL

GC1530F Fiber Laser Cutting Machine withIndependent Cabinet for SS CS MS Al Cu Cutting

Parameter:

Working area

1500*3000mm

Laser power

1000W/ 1500W/ 2000W / 3000w / 4000w etc

Laser source

Raycus / IPG / MAX etc

Controller

Cypcut controller

Motor driver

Japan Fuji servo motor driver (Yaskawa optional)

Repeated positioning accuracy

0.03mm

Max moving speed

80m/min

Max acceleration

1.0G

Transmission

Rack and gear, double drive on Y axis

Power consumption

<10kw

Independent cabinet

Yes


Feature:

1. Machine Structure

The machine structure adopts industrial heavy steel structure, under heat treatment, suffer lower temperature tempering and annealing, won't deform after long time use. the machine base is very stable when the processing


2. CYPCUT Control System

The best control system in fiber laser machine industry. It is suitably applied to high power fiber laser machine and can support the rotary device, exchange table and automatic focus
cutting head.

3. S & A Chiller
Focus on the research and development of industrial cold machine, independent research and development of core parts strictly implement ISO production management system, With excellent quality and leading research retrength, S &A has become a leding enterprise in the domestic industrial refrigeration industry.

4. Raycus Laser Source
Fiber laser is compact in structure, stable in performance and widely used, Fiber laser has high photoelectric conversion efficiency, good beam quality and low maintenance cost,(The USA IPG Laser source is optional)

5. Japan Shimpo Servo Reducer
Our fiber laser machine adopts the Shimpo Servo Reducer from Japan with low noise when the machine is processing the metal materials,After many refinements,it has small size in installation but high precision function.

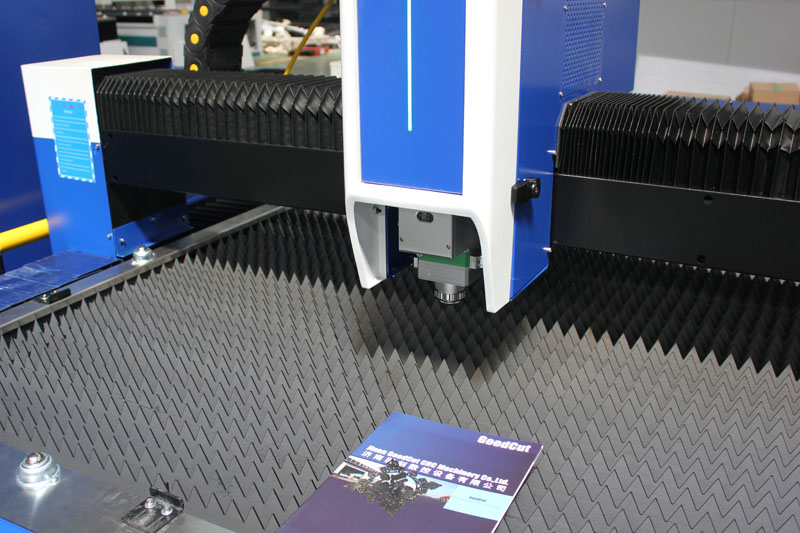

6. Raytools Fiber Laser Cutting Head
Our fiber laser machine install the Raytools manual focus cutting head, The machine also can optional automatic focus cutting head, Fast perforation (especially the thick materials), The plate is not easy to heat, Does not affect the cutting head following.

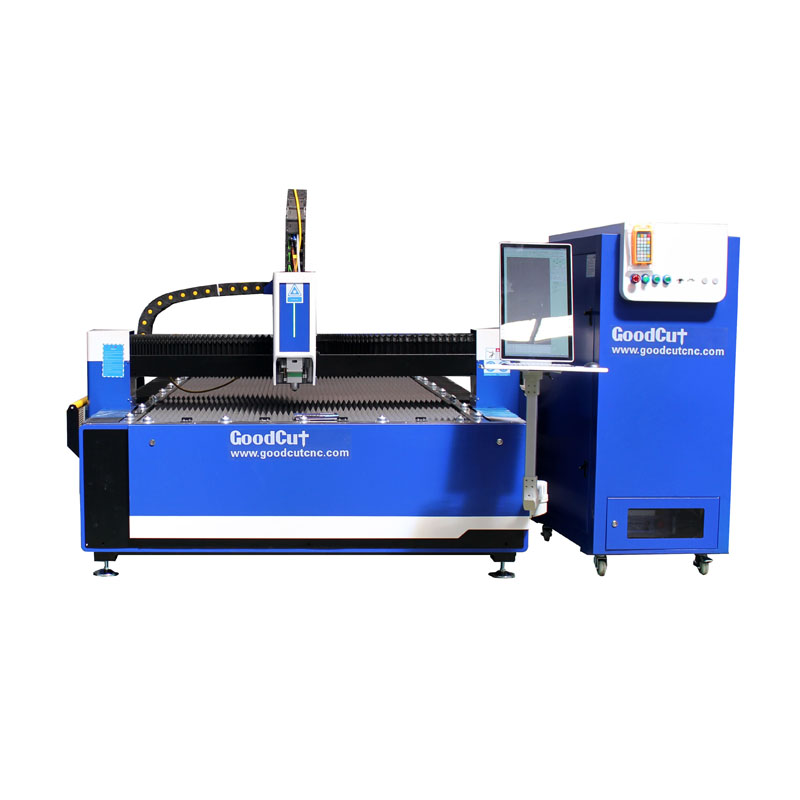

7. Independent sabinet

Application:

Fiber cutting head (Metal Material):

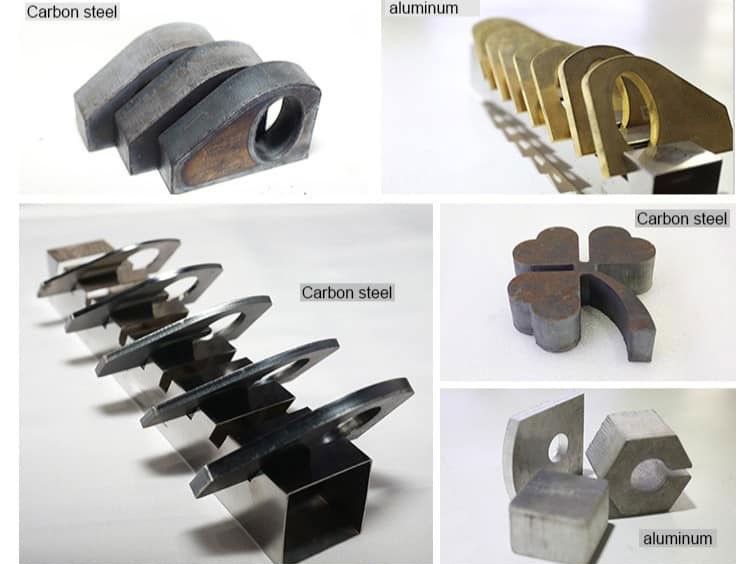

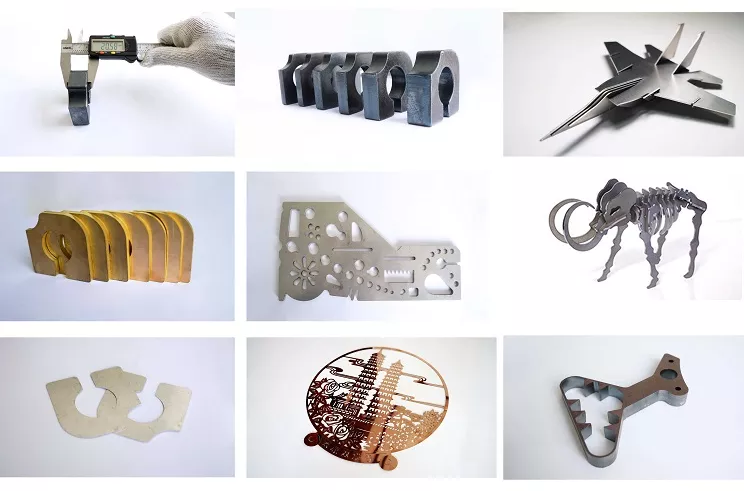

Mainly used for cutting carbon steel, silicon steel, stainless steel, aluminum alloy, titanium alloy, galvanized steel sheet, pickling board, aluminum zinc plate, copper and many kinds of metal materials cutting and so on.

Fiber cutting head (Metal Industries):

Applied in sheet metal processing, aviation, spaceflight, electronics, electrical appliances, subway parts, automobile, machinery, precision components, ships, metallurgical equipment, elevator, household appliances, gifts and crafts, tool processing, adornment, advertising, metal foreign processing various manufacturing processing industries.
