GC-SWC Solid Wood Cutting Machine for Solid Wood Furniture Production

Solid wood cutting
Furniture making
Max cutting thickness 150mm
Cutting length 1.5m
Product description: Solid wood cutting Furniture making
INQUIRY EMAIL

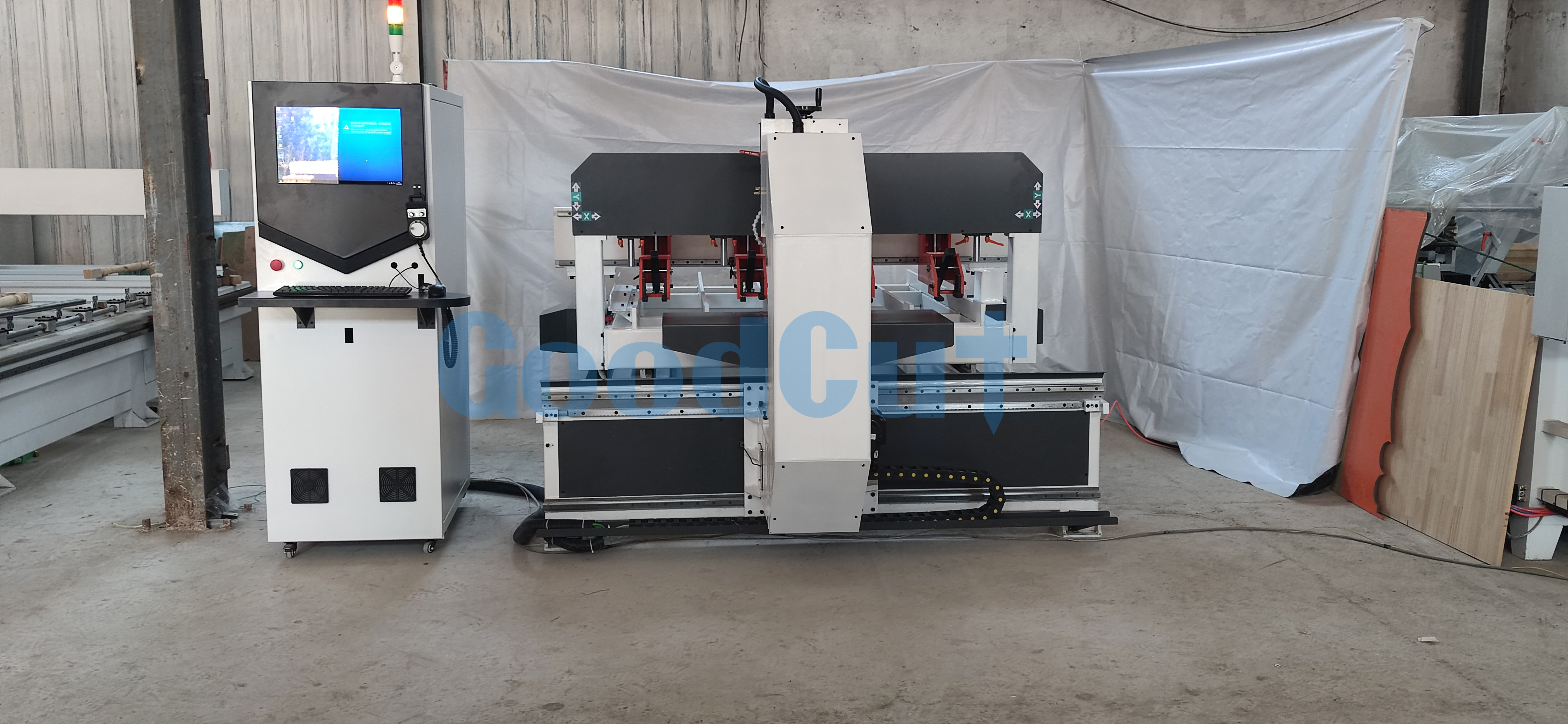

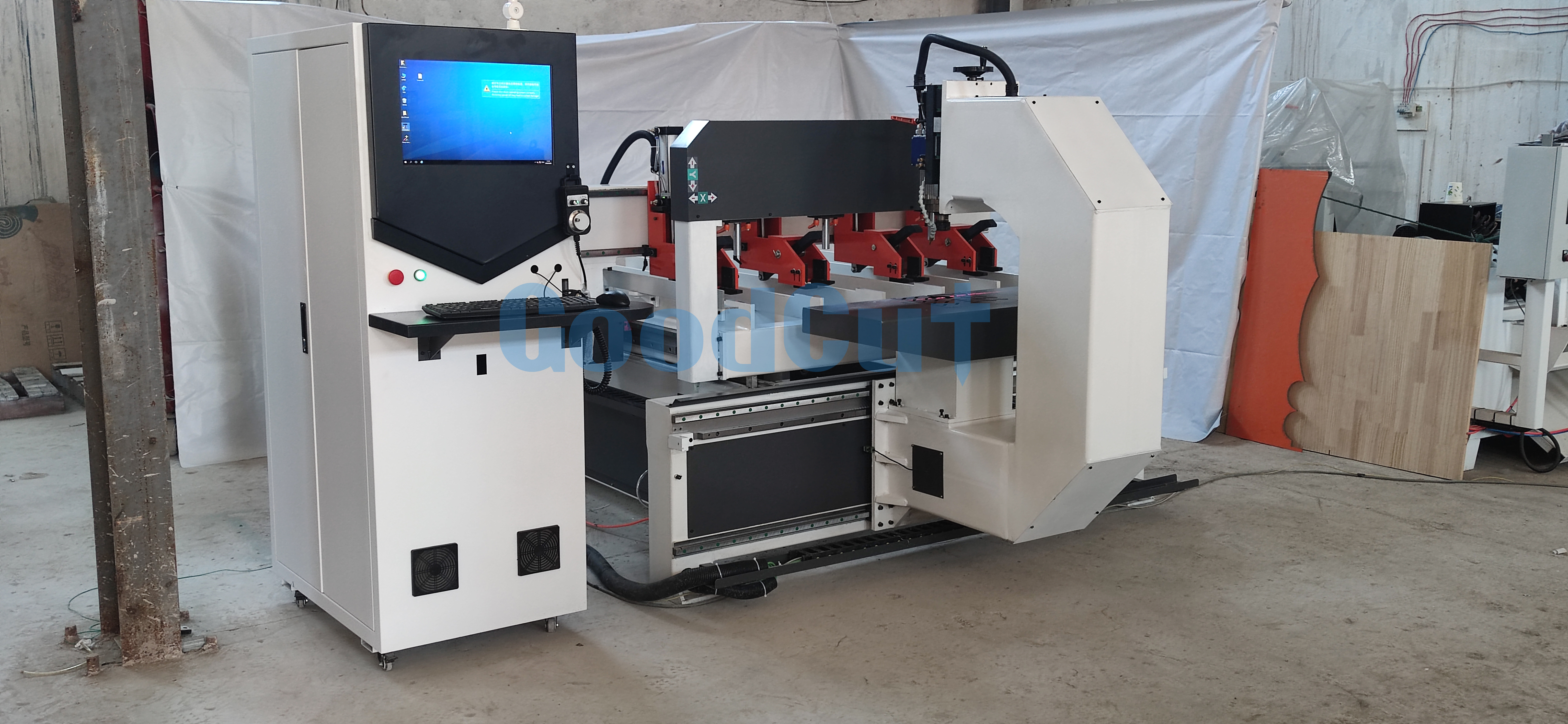

Solid Wood Cutting Machine for Solid Wood Furniture Production

Specification

Main Parts	Main parts name
System	CNC Solid wood cutting machine customized system
Motor	IVT servo motor 1.5kw and 750W
Guide line	Taiwan Hiwin 25mm guide line
Inverter	E&T 15KW
Ball Screw	Taiwan TBI screw
Reducer	Japan shimpo 1:10 and 1:8
Machine body	Rear wall square pipe welding failure treatment

Product Paramenters

Model	GC-WC1500	GC-WC2000	GC-WC2500
Machine size(mm)	210026001800	260026001800	310026001800
Max working length	1500 mm	2000 mm	2500 mm
Max working width	1500mm	1500mm	1500mm
Max working thickness	10—150mm	10—150mm	10—150mm
Running speed	10000 mm/min	10000 mm/min	10000 mm/min
Max working speed	8000mm/min	8000mm/min	8000mm/min
Machine power	14.5KW	14.5KW	14.5KW
Spindle rotate speed	18000rpm	18000rpm	18000rpm
Spindle	9.7KW	9.7KW	9.7KW
Working accuracy	0.1mm	0.1mm	0.1mm
Single wood max working diameter	500mm	500mm	500mm

Tools Parameter

Tool length (mm)	Cutter blade length(mm)	Handle diameter(mm)	Working wood thickness(mm)
120	60	4	0-60
150	80	6	0-80
200	130	8	0-130
230	155	8	0-150

Advantages

1. Automatic processing operation and stable quality, improve efficiency exponentially and lay ground work for lather
processing operation which will smooth and speed processing line.
2. Use Germany Numerical control system, with high precision and more stable.
3. Advanced CNC system,simple and easy control.Only with basic CAD knowledge,technicians operated the machine easily without the other software application.
4. Strong cylinder fixtures, the clamping device is reliable, clamping range is wide, it can saw the multi-layer sheet
synchronously.

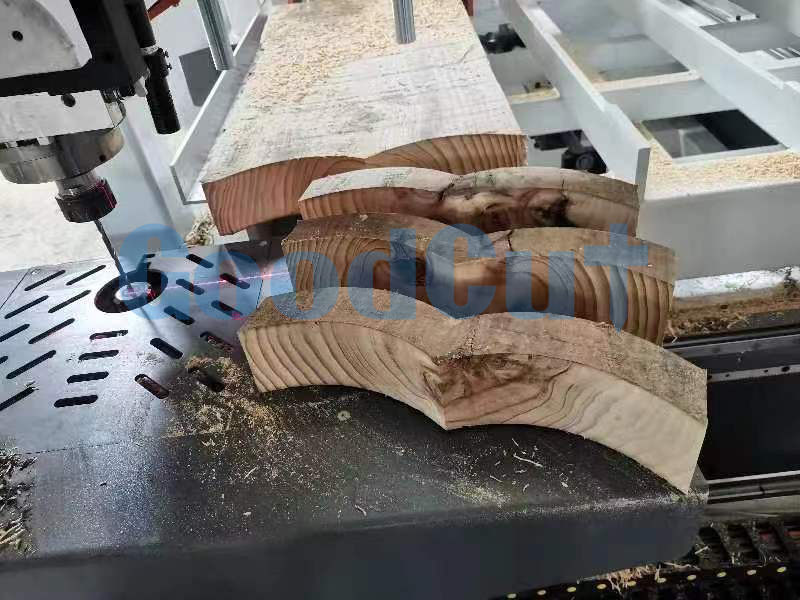

Samples
