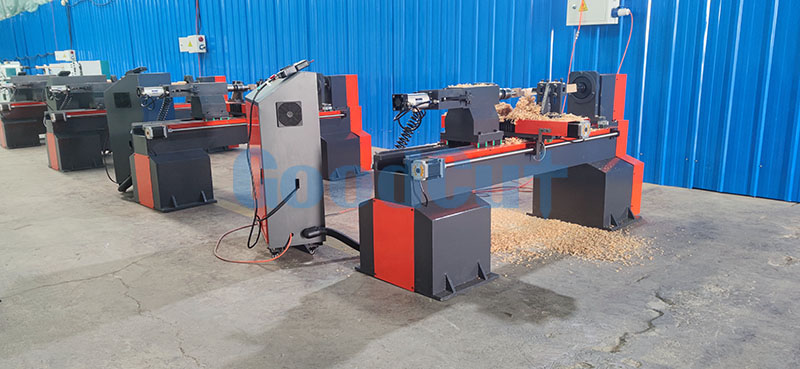

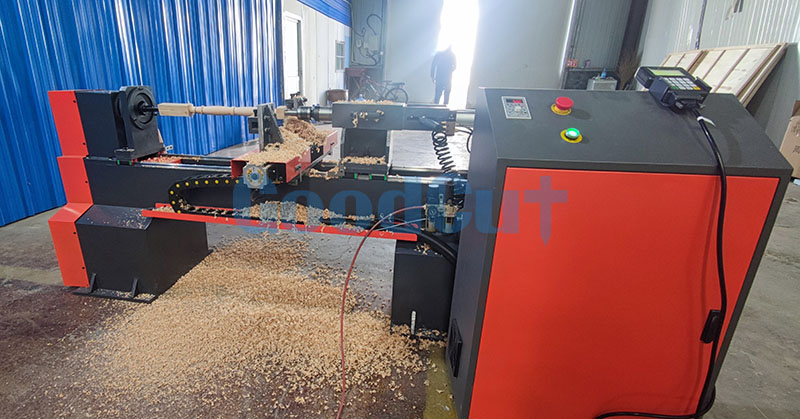

GC1220WL Economic CNC Single Axis Double Cutter Turning Wood Lathe Machine with Cast Iron Frame

  • 1200mm length,200mm diameter
  • Double cutter
  • Fuling inverter
  • stepper motor /servo mortor
  • Product description: Dimension: 1200mm length,200mm diameter size is customized Cutter:2 blades, double cutter. one rough knife, one finishing knife
  • INQUIRY   EMAIL

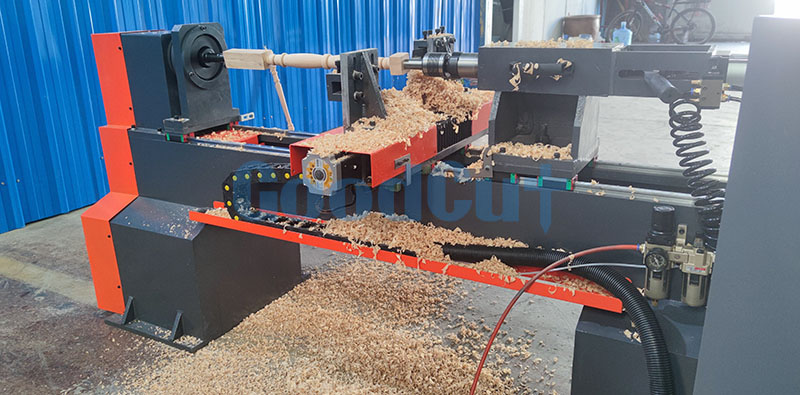

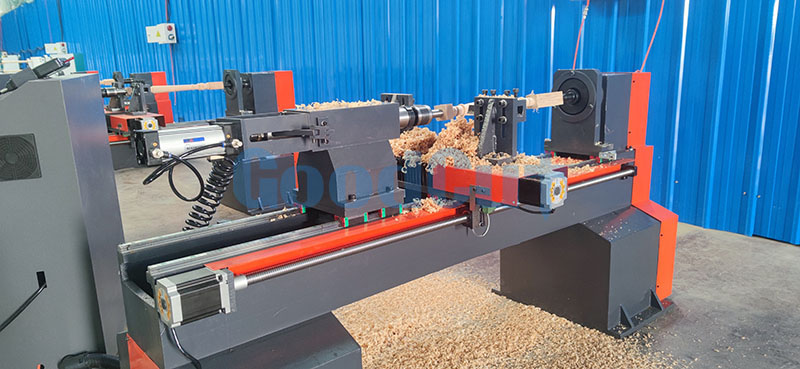

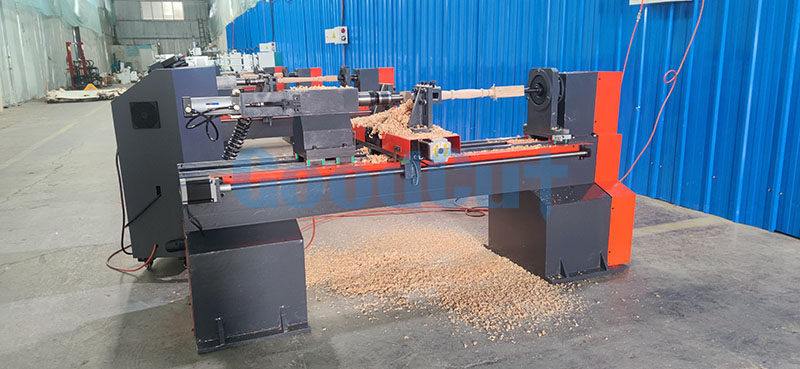

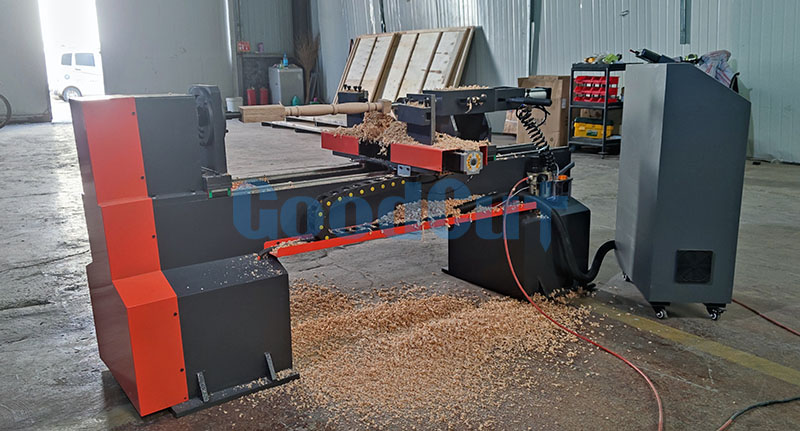

GC1220WL Economic CNC Single Axis Double Cutter Turning Wood Lathe Machine with Cast Iron Frame


Advantages:

1. Economic, price is low, and widely used.

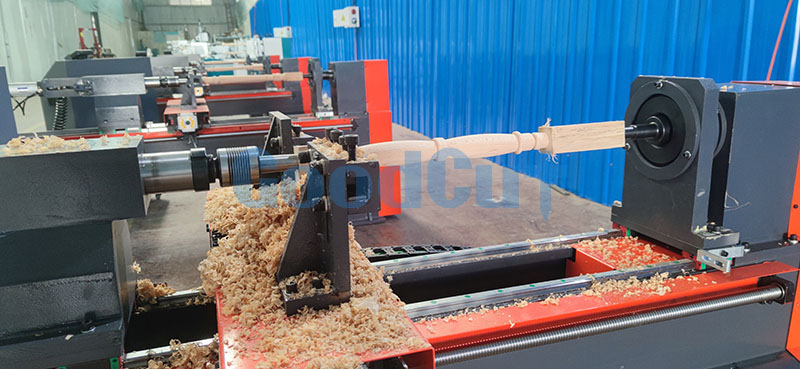

2. Professional used for wood turning and wooden cylinder engraving, for table legs, stair railing (banisters), etc.

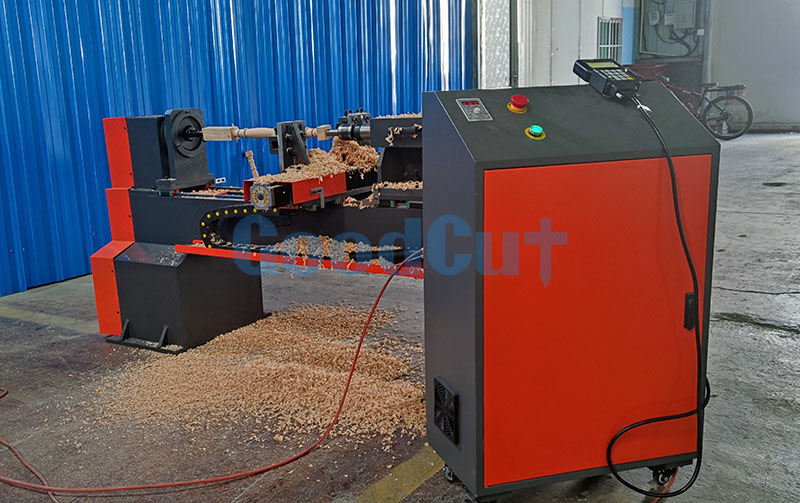

3.Adopting advanced DSP system with USB connection, operated with the handle, convenient operation. Our engraver can completely work off-line and do not take any computer resources.

4. Adopt Germany ball screw and Taiwan PMI helical square  guide rail with high transmitting precision and longevity. Bid module helical/diagonal rack.

5. Compatible with several CAD/CAM design software, e.g. type3, artcam, etc.

6. Rotating speed is adjusted by inverter, and the speed data is shown on controlling cabinet panel.


Parameters:

Model No.
GC1220WL CNC wood turning lathe machine
Machine structure
Whole cast iron bed
Working length
Max 1200mm (100-1200mm)
Turning diameter
Max 200mm(10-200mm)
Quantity of axis
Single axis
Quantity of cutters
2 (1 for rough cutting,the other for finishing cutting).
Engraving spindle
2.2KW, 0-3000rpm/min
Max.feeding rate
500cm/min
Air pressure
0.6-0.8
Motor and driver
Leadshine stepper motor 450B, Yako 2608
Transmission
XYZ 25mm ball screw
Guide rails
Taiwan HIWIN linear square guide rails 20mm
Control system
DSP with handle and USB port
Voltage
220v 50hz
Gross weight
850-900kg

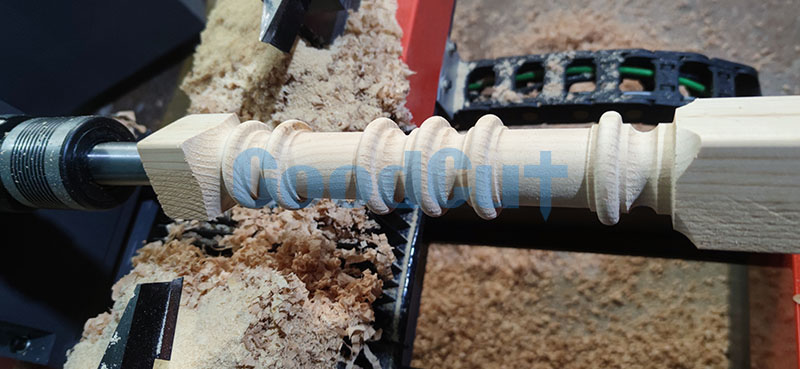

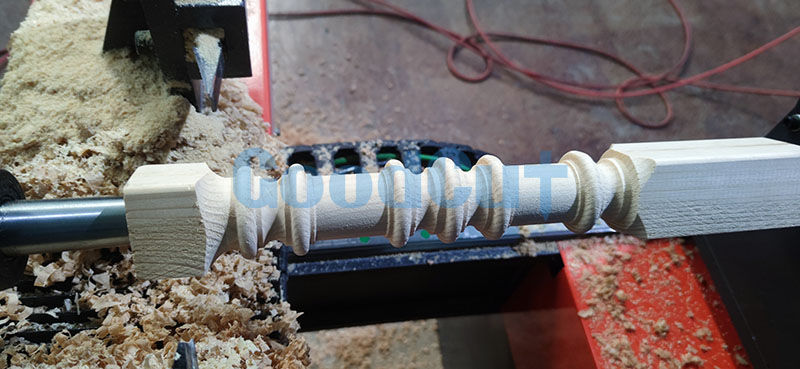

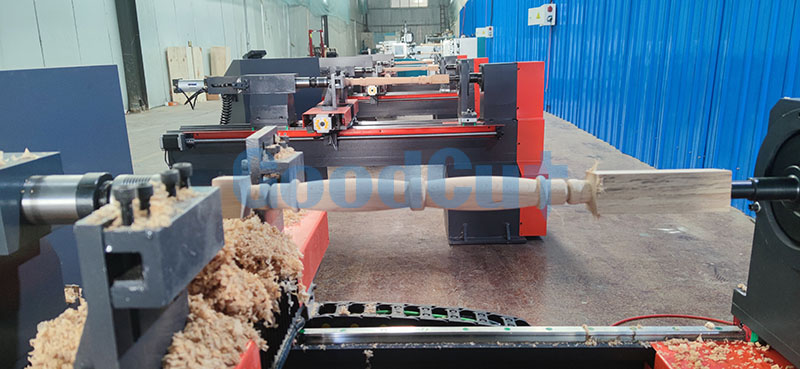

Samples:
