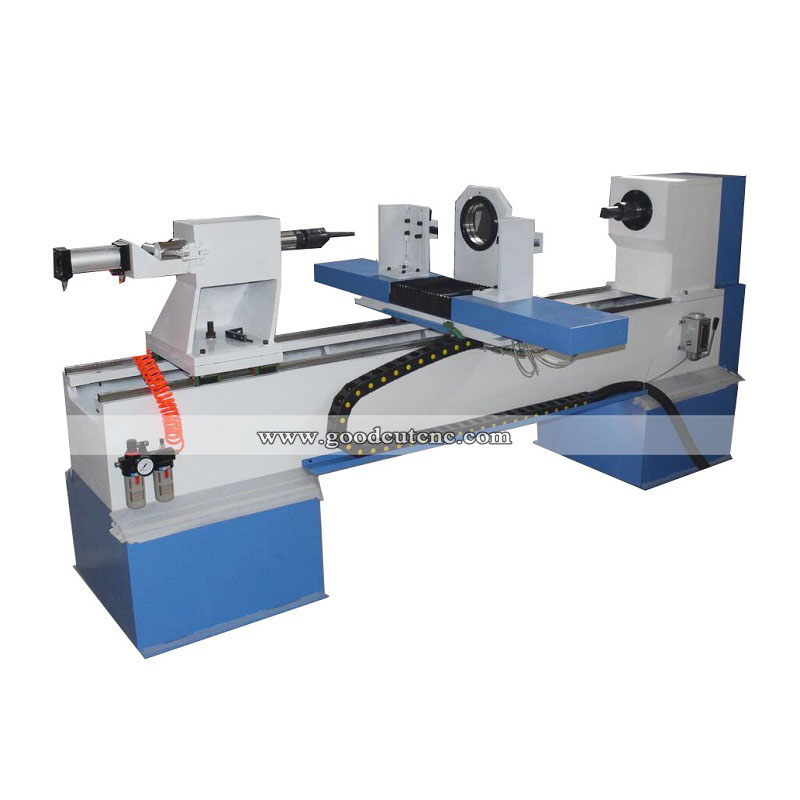

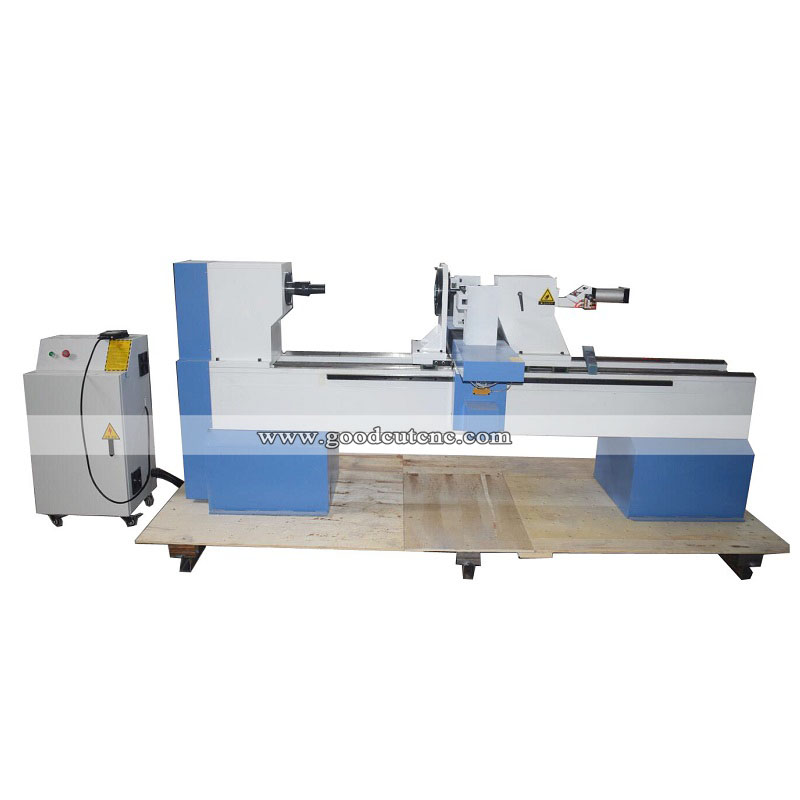

GC1530WL Automatic 1530 Size Cnc Single Axis Double Cutter Turning Wood Lathe Machine

  • 1500mm length,300mm diameter
  • Double cutter
  • Fuling inverter
  • stepper motor /servo mortor
  • Product description: GC1530WL Dimension: 1500mm length,300mm diameter size is customized Cutter:2 blades, double cutter. one rough knife, one finishing knife
  • INQUIRY   EMAIL

GC1530WL Automatic 1530 Size Cnc Single Axis Double Cutter Turning Wood Lathe Machine



Advantages of Automatic 1530 Size Cnc Single Axis Double Cutter Turning Wood Lathe Machine:

1. Professional used for wood turning and wooden cylinder engraving, for table legs, stair railing (banisters), etc.


2.Adopting advanced DSP system with USB connection, operated with the handle, convenient operation. Our engraver can completely work off-line and do not take any computer resources.


3. Adopt Germany ball screw and Taiwan PMI helical square  guide rail with high transmitting precision and longevity. Bid module helical/diagonal rack.


4. Compatible with several CAD/CAM design software, e.g. type3, artcam, etc.


5. Rotating speed is adjusted by inverter, and the speed data is shown on controlling cabinet panel.


6. One time tool setting to finish the whole work piece.


Parameters of Automatic GC1530WL Size Cnc Single Axis Double Cutter Turning Wood Lathe Machine:

Model No.
GC1530WL CNC wood turning lathe
Machine structure
Welded steel
Working length
1500mm (2000mm and 2500mm are optional)
Turning diameter
300mm
Quantity of axis
Single axis
Quantity of cutters
2 (1 for rough cutting,the other for finishing cutting).
Engraving spindle
3.5KW, ER25, air cooled, 2-18000rpm
Max.feeding rate
2000mm/min
Minimum setting unit
0.1mm
Spindle motor power
5.5KW
Voltage
380V or 220V, 3 phase,50-60Hz
Guide rails
Taiwan made linear square guide rails
Transmit way
Taiwan made ballscrews (better than gear rack)
Control system
DSP with handle and USB port
Lubricate system
Yes
Machine dimension
3300x1500x1300mm
Gross weight
1600kg

Parts descriptions:

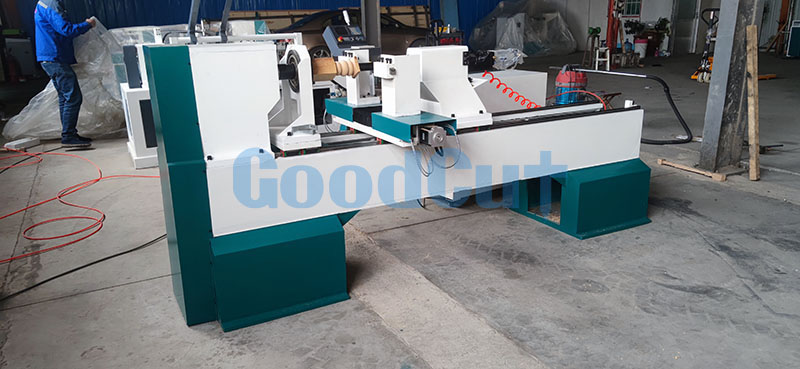

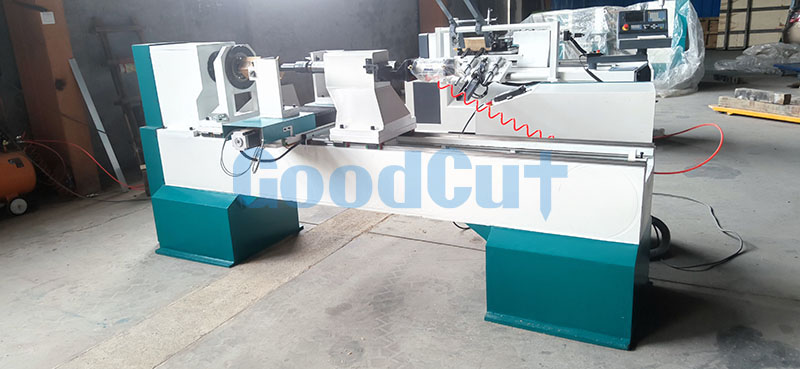

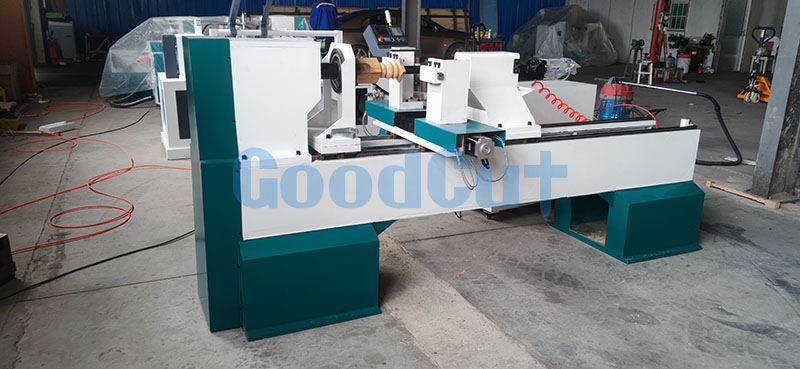

Wood turning lathe machine is welded with seamless steel structure, which is high temperature annealing and vibrating stress relief.

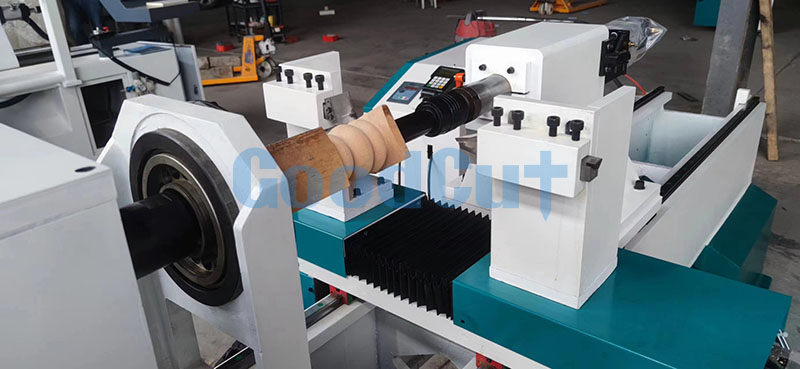

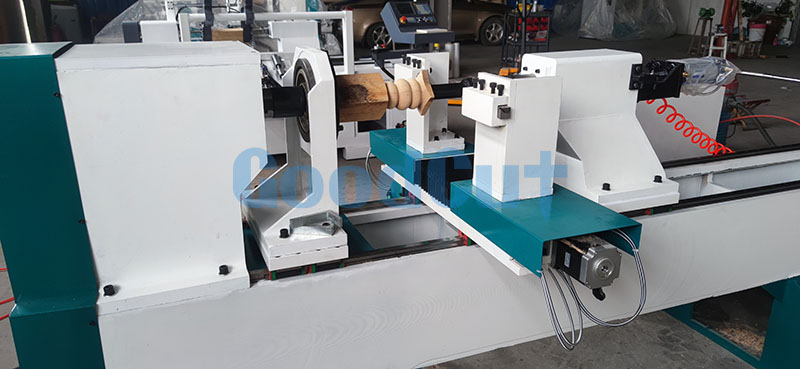

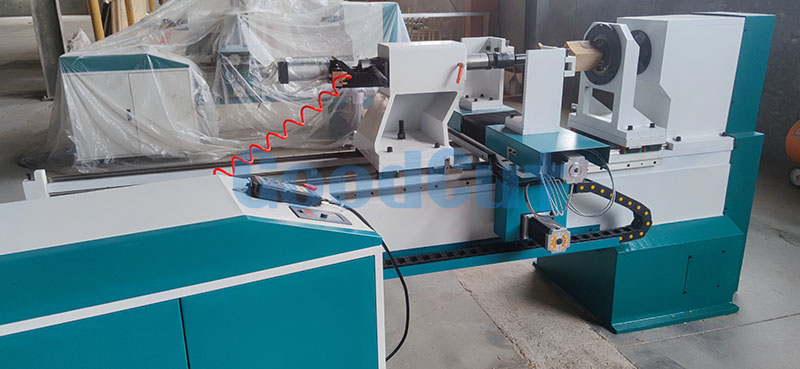

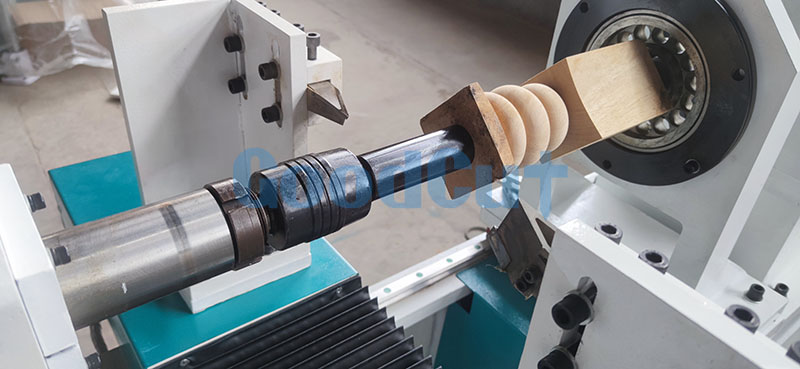

The machine has 2 cutters (The Rough turning cutter and finish turning cutter work synchronously with layered process) and so that improve the efficiency and workpiece surface quality.

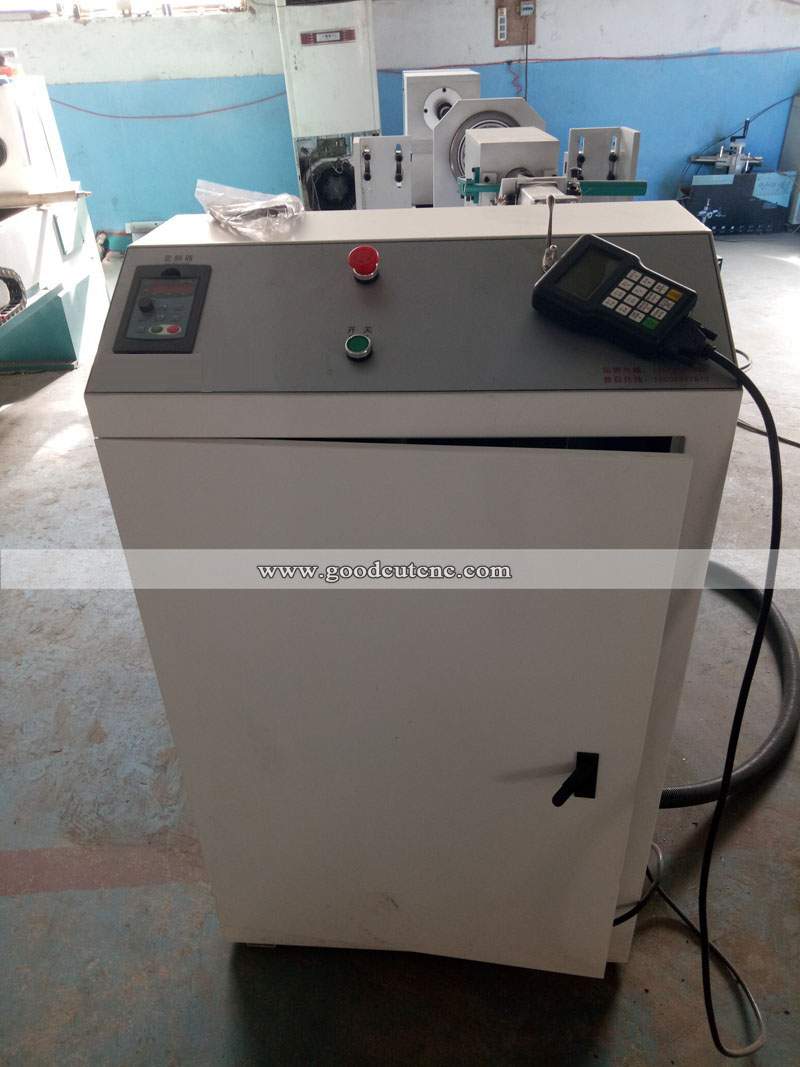

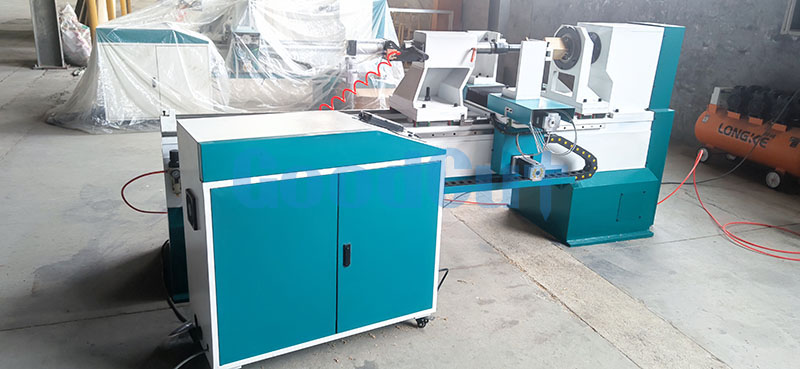

Independent control cabinet

Applications of Automatic 1530 Size Cnc Single Axis Double Cutter Turning Wood Lathe Machine:

Baseball bat making machine is professional cnc wood turning lathe machine.

There are two blades installed in the machine, one is rough tool for shape making.  the other is finishing tool for texture polishing.
