CNC Router

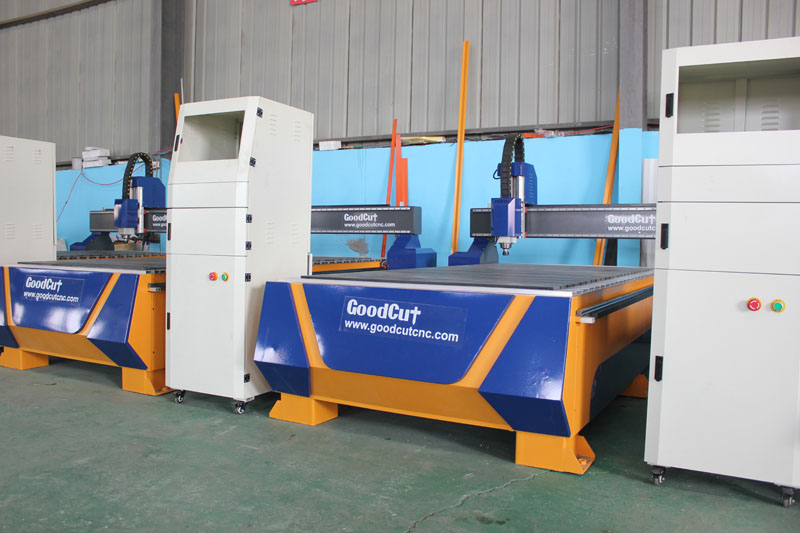

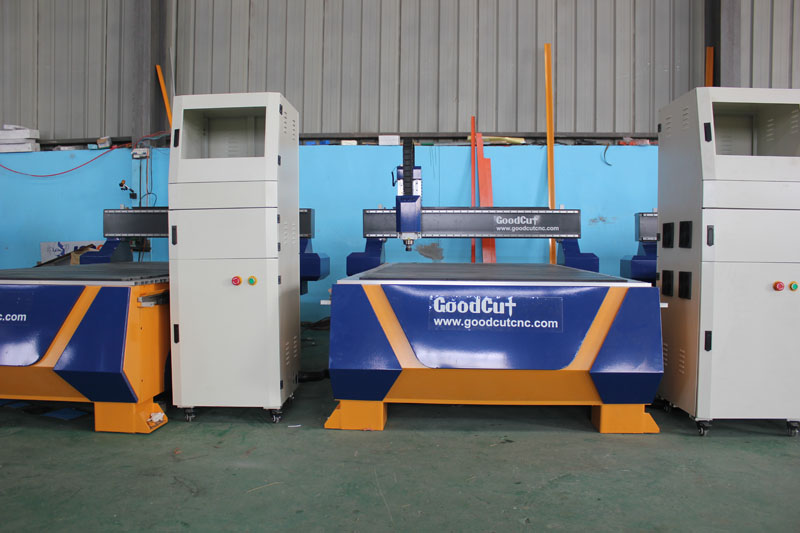

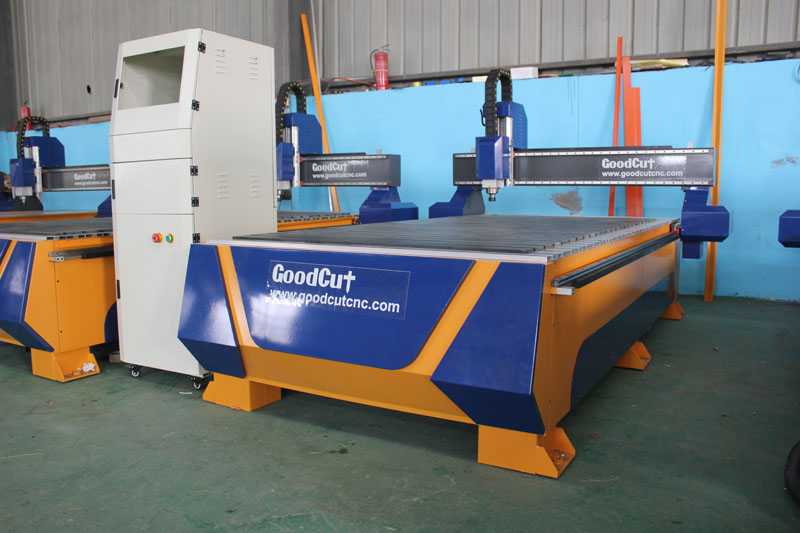

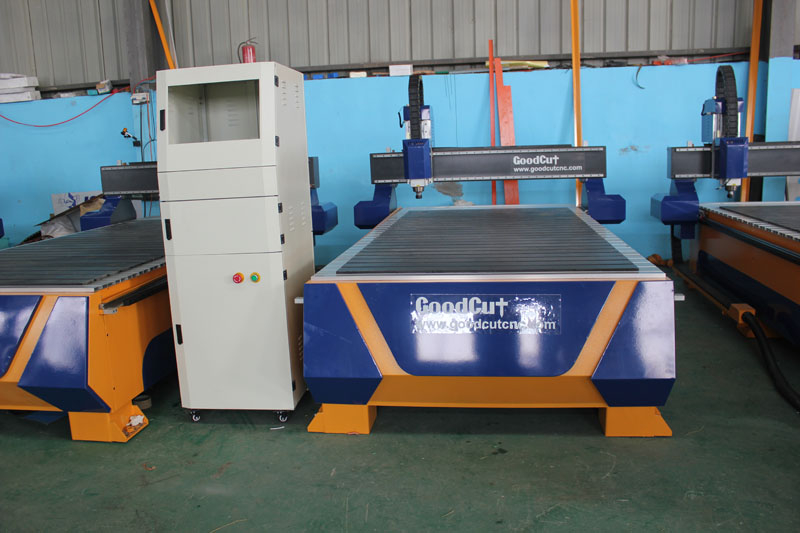

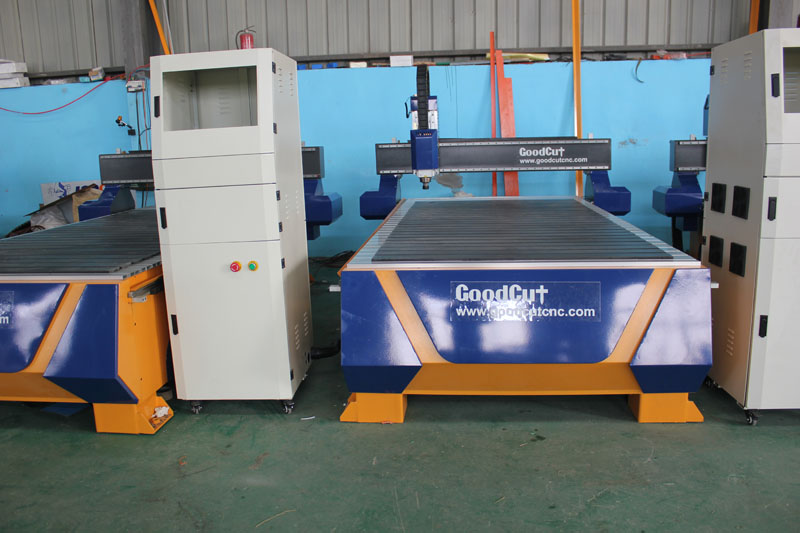

GC1325 New Design 1325 CNC Router Machinery for Woodworking with High Quality

New design
High quality
1300*2500mm working size
Woodworking
Product description: Wood working machine 1300*2500mm working size High quality Good price
INQUIRY EMAIL

GC1325 New Design 1325 CNC Router Machinery for Woodworking with High Quality

Parameter:

Parameters	Standard Specifications
X,Y,Z Working Area	13002500200mm jinan unique cnc router
Spindle Power	3.2kw water cooling spindle
X,Y,Z Traveling Positioning Accuracy	±0.01/2000mm
Table	T.slot table
X,Y,Z Rail and Transmission	Taiwan TBI Ball Screw and gear rack
Max. Rapid Travel Rate	50000mm/min
Max. Working Speed	30000mm/min
Spindle Speed	24000RPM
Drive Motors	stepper motor and drivers or servo motor and drivers
Working Voltage	AC380V/3PH/50Hz or 220V
Command Language	G Code
Operating System	Nc studio or DSP/Mach3/Syntec
Software Compatibility	Option:Type3, Ucancam, Artcam, solidworks,etc.
Running Environment	Temperature: 0℃~45℃ Relative Humidity: 30%~75%
Parameters	Standard Specifications
Oil system	Handel
Frame structure	Welding structure

Feature:

*Welded structure by thick profiled steel,stabilized under high temperature,ensures minimum distortion,excellent rigidity and powerful strength.

*Double motors and drivers of Y axis ensure steady movement.

*Rack transmission ensures fast speed and high accuracy.

*Imported linear square guide rail ensures high accuracy and maximum work hard.

*Optimized mechanical and electrical design with well-selected brand parts minimizes braekdown rate.

*High power spindle,working vigorously with low noise,guarantees long time massprocessing.

*Function of continuous working at stop point by power failure.

Application:

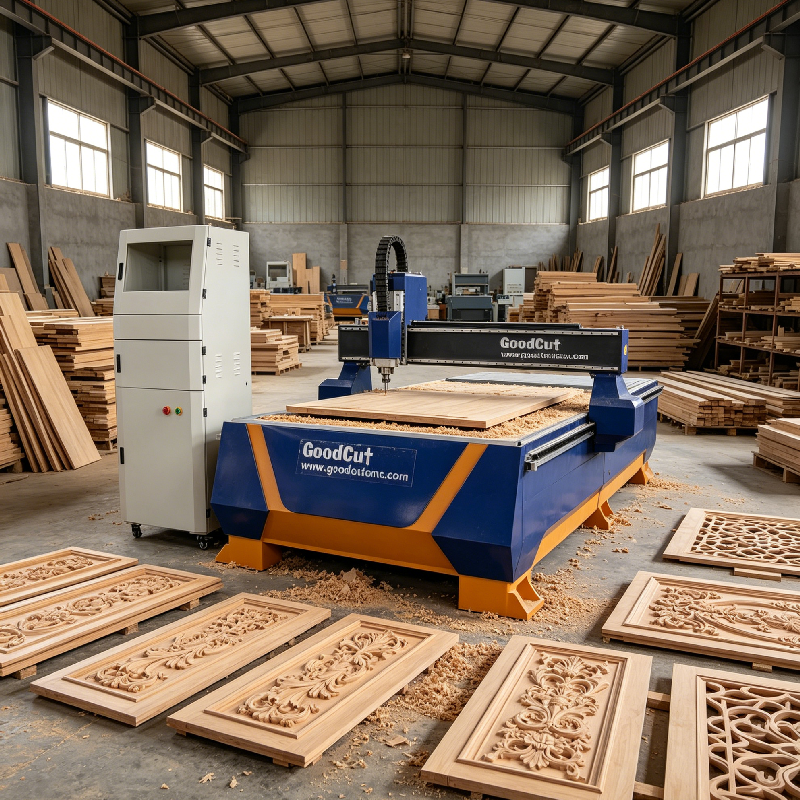

It is suitable for carving and making of wooden material. Machines can sculpt all kinds of patterns.

1) Mould: wood,wax, wood, gypsum,foams,wax.
2) Furniture: wooden doors, cabinets, plate, office and wood furniture, tables, chair, doors and windows.
3) The wood products: voice box, game cabinets, computer tables, sewing machines table,instruments.
4) Plate processing: insulation part, plastic chemical components, PCB, inner body of car, bowling tracks, stairs, anti bate board, epoxy resin, ABS, PP, PE and other carbon mixed compounds.
5) Decorate industry: Acrylic, PVC, MDF, artificial stone, organic glass, plastic and soft metals such as copper, aluminum plate engraving and milling process.
