Jina GoodCut 1325 Woodworking Cnc Router with Vacuum Adsorb Table

  • 3.2 Kw water cooling spindle
  • 1325 cnc router
  • vacuum adsorb table with T-slot
  • NC studio
  • Product description: 3.2kw water cooling spindle vacuum table with T-slot Nc studio stepper motor
  • INQUIRY   EMAIL

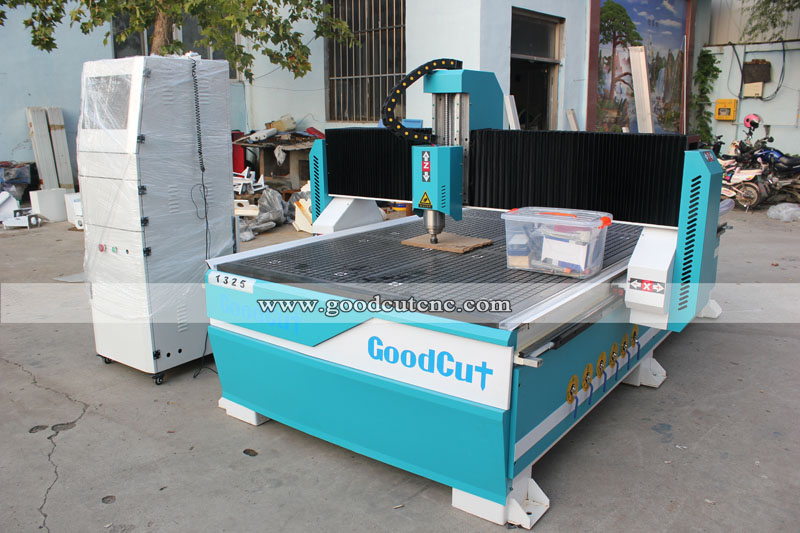

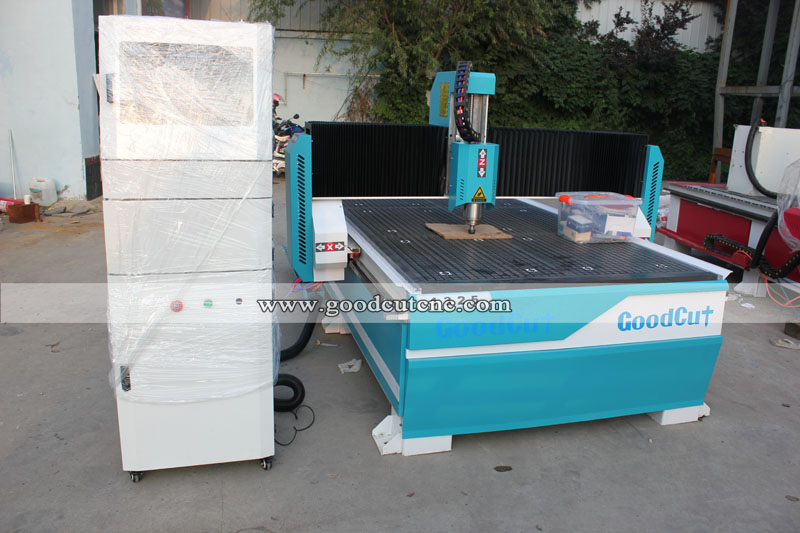

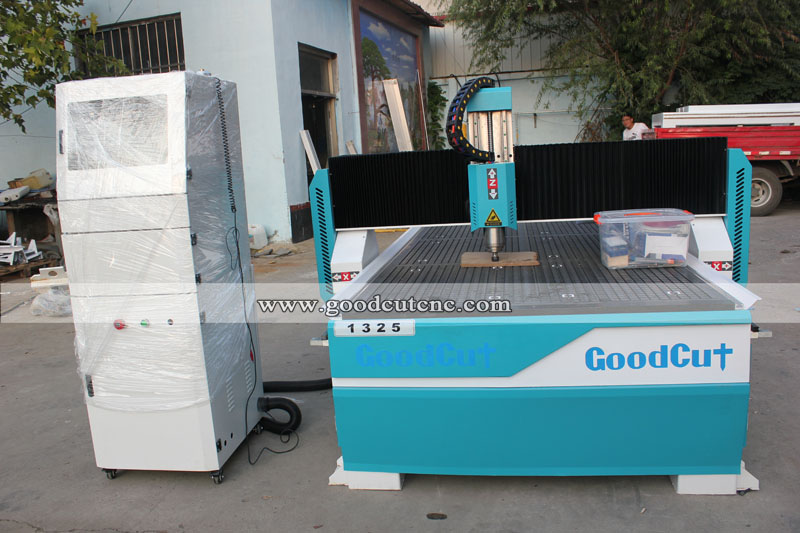

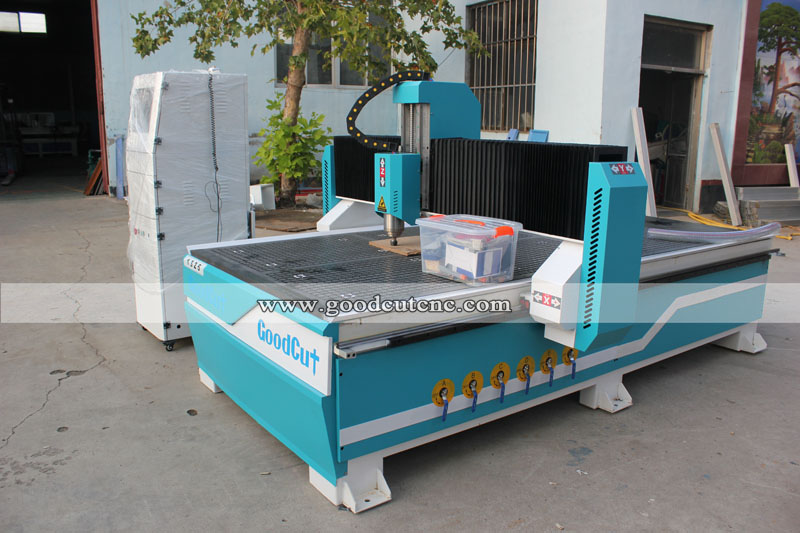

Jina GoodCut 1325 woodworking cnc router with vacuum adsorb table


1.The machine body is welded by thick steel pipes,Working stable, long time without deformation, high precision

2.1300x2500x200mm working table(option:1500x3000mm,2000x3000mm,2000x4000mm or accordin your requirements)

3.Z axis adopts Taiwan TBI ball screw transmission,high accuracy

4.Hiwin linear guide rail from Taiwan,the quality are much better

5.Gantry moving,The position precision is much better.

6.3.2kw water cooling spindle,good cooling effect,low noise.(option:4.5KW,5.5kw , 6kw,9kw air cooling spindle,long using life,easy to installation and operation)

7.Chinese famous Leadshine stepper motor and driver,(option:Hybrid servo motor or servo motor)

8.Fuling inverter,(option:Delta inverter,well control frequency and adjust spindle speed)

9.NC-Studio control system.(option:DSPMach3/Syntec control system)

10.Emergency alarm system,ensure the operators safety

11.Dust collector ,ensure the working environment clear

12.CE certificates supply and with 2 year warranty

13.Voltage:380v/50hz/3 phase or 220v/50hz/single phase

14.Option:vacuum pump,dust collector



Working Area 1300*2500*200mm
Traveling Positioning Accuracy ±0.03/300mm
Repositioning Accuracy ±0.03mm

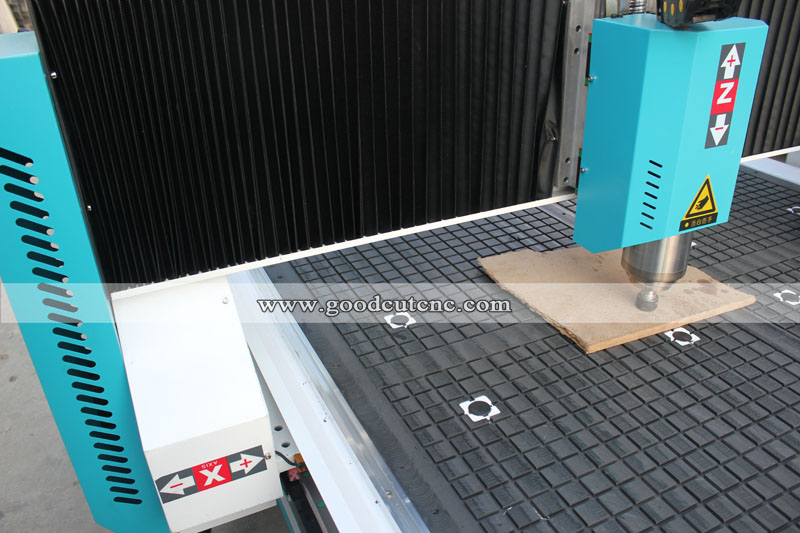

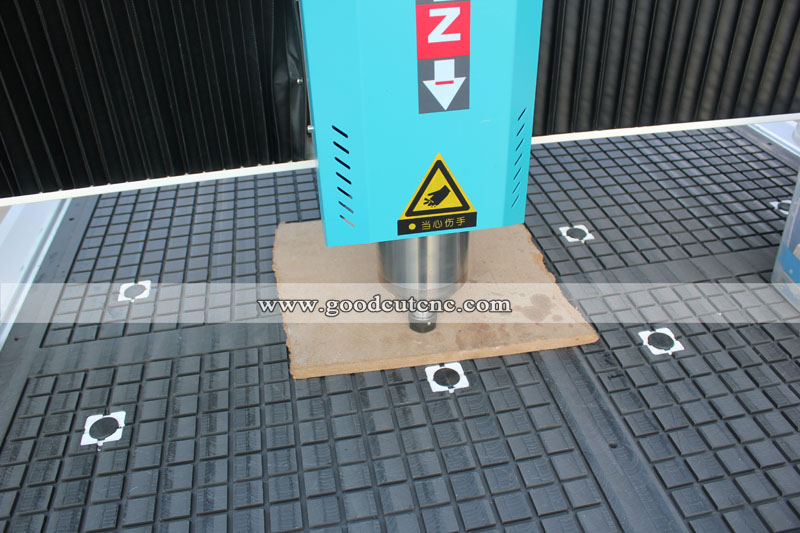

Table Vacuum adsot with T-slot Table
Frame Welded Structure
X, Y axis helical rack 1.25M, Hiwin 20# Rail Linear Bearing
Z axis Hiwin Rail 20# Linear Bearing & Taiwan TBI Ball Screw
Max. Power Consumption (Without Spindle)  2.5kw~3Kw
Max. Rapid Travel Rate 33000mm/min
Max. Working Speed 25000mm/min
Spindle Power 3.0kw water cooling spindle
Spindle Speed 0-24000RPM
Drive Motors Leadshine easy servo motor
Working Voltage AC380V/50/60Hz,3PH (Option: 220V)
Command Language G Code
Operating System Mach3 Control System
Computer Interface USB
Flash Memory 128M(U Disk)
Collet ER25
X,Y Resolution <0.01mm
Software Compatibility Type3/UcancameV9/Artcam Software
Running Environment  Temperature 0 - 45 Centigrade
Relative Humidity 30% - 75%






Application for Jina GoodCut 1325 woodworking cnc router with vacuum adsorb table

1. Craft & gift industry: engrave various word or graph on the souvenir and handicraft, ironwork engraving, dials.

2. Advertising industry: engrave and cut various signboards, marble, copper, character mold, font. And various metal sign, brand.

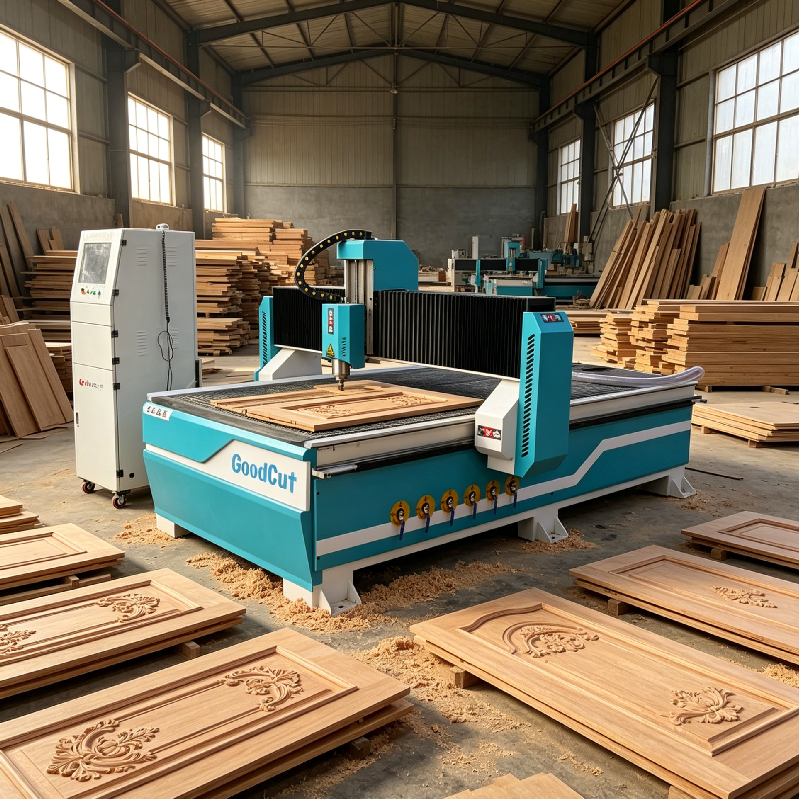

3. Wood working industry: mainly used in redwood classical and antique furniture, wood carving, gifts wooden box ,redwood jewelry boxes, instone cutting, decorative products sculpture, fine jewelry carving.

4. Model industry: company plate, signs, building models, emblem, badge, display panels, fair signs, building numbers, signs of decoration, shoes, badge, embossed mould, biscuit, candy, chocolate mould.

5. Other lines: also used in portraits, landscapes, calligraphy lettering, seal carving and other plane surface carving, basso-relievo.
