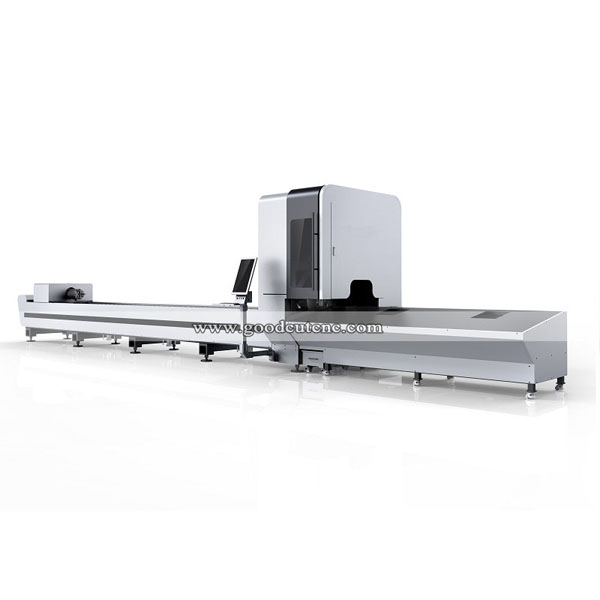

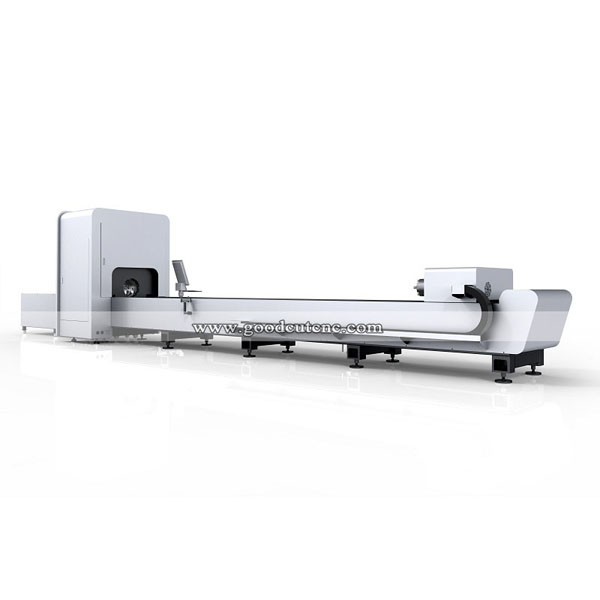

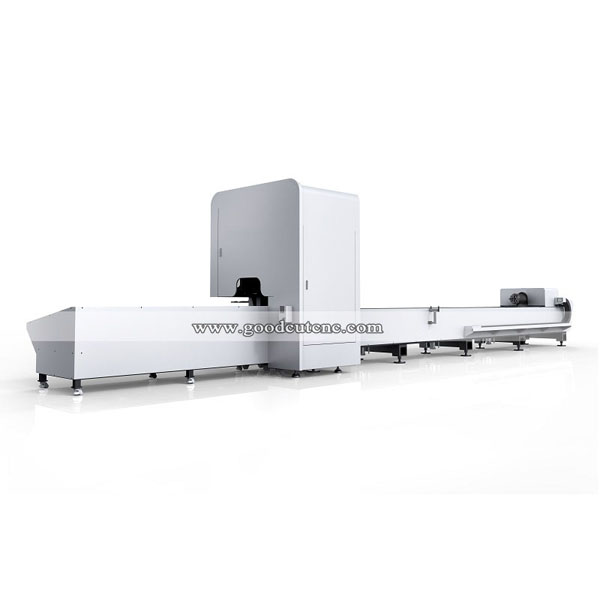

GC-FR1220 High Quality Laser Pipe Tube Cutting Machine For Steel

  • Raycus1000W Laser source
  • Yaskawa servo Motor
  • YYC Guide rail
  • Raytools Laser cutting head
  • Product description: Working area: 12000mm*200mm Laser power: 1000W Raycus Reducer: Japan shimpo Transmission system: Gantry double-drive structure
  • INQUIRY   EMAIL

GC-FR1220 High Quality Laser Pipe Tube Cutting Machine For Steel



Features of High Quality Laser Pipe Tube Cutting Machine For Steel:

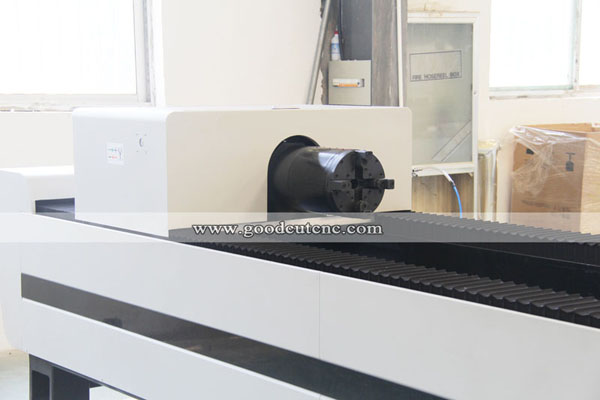

1. Design of double electric chucks and double servo motors, apply to cut tube as round ,square, Rectangular tube, oval tube, I-beam, etc.

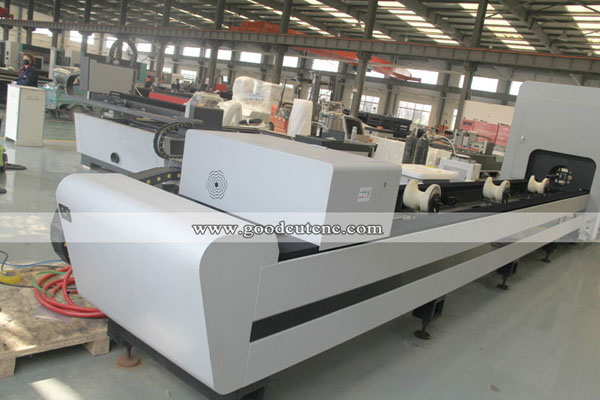

2. Pneumatic rolling wheel supporting design to ensure the turning stability during cutting.
3. High-performance laser source and stable operating system that make the best cutting effect.
4. The machine owns perfect cooling system, lubrication system and dust removal system, to ensure that it can operate stably, efficiently and durably.
5. The machine can be used for cutting a variety of metals with excellent and stable cutting quality.
6. With a specialized CAD / CAM automatic programming software and automatic nesting software, it is possible to maximally g save raw materials.
7. Access to the CNC system through Ethernet interface makes communication and remote monitoring possible during the laser cutting process.


Advantages of High Quality Laser Pipe Tube Cutting Machine For Steel:

1.Excellent beam quality: Smaller focus diameter , high work efficiency, better processing quality.

2. High cutting speed: 2-3 times faster than YAG and CO2 laser .

3.High Stability: Adopt superior quality fiber laser, stable performance, key parts can reach .

4. High efficiency for photoelectric conversion : Compared with CO2 laser cutting machine, Fiber laser cutting machine has 3 times photoelectric conversion and with energy saving & friendly environment .

5. Low cost: The whole power consumption is only 20-30% of traditional CO2 laser cutting machine.

6.Low maintenance cost: It is with Optical fiber line transmission, no need reflector lens, can save a lot of maintenance cost.

7.Easy Operation : Fiber Line transmission, no adjustment of optical path.

8.Super-flexible optical effect : small volume, compact structure, easy to flexible manufacturing requirements .


Application Materials:

Suitable for metal cutting like Stainless Steel Sheet, Mild Steel Plate, Carbon Steel Sheet, Alloy Steel Plate, Spring steel Sheet, Iron Plate, Galvanized Iron, Galvanized Sheet, Aluminum Plate, Copper Sheet, Brass Sheet, Bronze Plate, Gold Plate, Silver Plate, Titanium Plate, Metal Sheet, Metal Plate, Tubes and Pipes, etc

Application Industries:

Fiber Laser Cutting Machines are widely used in manufacture Billboard, Advertising, Signs, Signage, Metal Letters, LED Letters, Kitchen Ware, Advertising Letters, Sheet Metal Processing, Metals Components and Parts, Ironware, Chassis, Racks & Cabinets Processing, Metal crafts, metal art ware, elevator panel cutting, hardware, auto parts, Glasses Frame, Electronic Parts, Nameplates, etc.


Parameters of High Quality Laser Pipe Tube Cutting Machine For Steel:


Equipment model
GC-FR1220
Laser type
Fiber laser generator

Transmission system

Gantry double-drive structure

Rated output power
500w-12000w
Effective Pipe Cutting Length
6000mm
Effective Pipe Cutting Diameter
Φ10-200mm (depends on customer requirements)
Workbench Repositioning Accuracy
≤±0.02mm
Beam quality
<0.373mrad
Cutting Speed
Depend on material and thickness
Cutting head
Switzerland Raytools laser head
Drive system
Japan Yaskawa servo motor and driver, Shimpo reducer.
Water chiller
Industrial water chiller
Control system
Cypcut
Electrical requirements
3 Phase AC 380V 50Hz



Warranty and Service:

1). 3-year warranty for the whole machine
2). 2-year warranty for the fiber laser source
3). Life-long maintenance
4). In the warranty period, if it breaks down or some parts are damaged(Except the human factors and the factors of force majeure), the seller should be responsible for repair for free, the parts need to be replaced will be provided from seller for free(Except the quick-wear part).
5). After the warranty period expired, the buyer only need to pay the actual maintenance cost.
6). Some customer, we will pay a return visit for several times one year, and will provide technical support service anytime, and also provide spare parts anytime the buyer want.
7). After sales service response time: quick response within 8 working hours, after receive the repair call, our after sales engineer will reply as soon as possible.

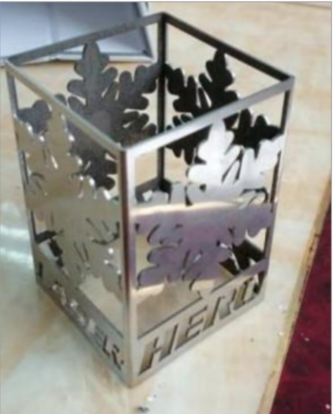

Sample:
