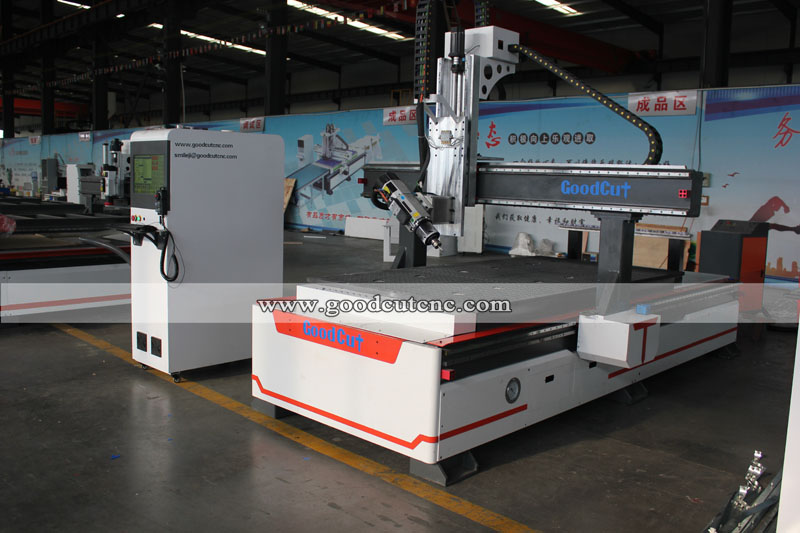

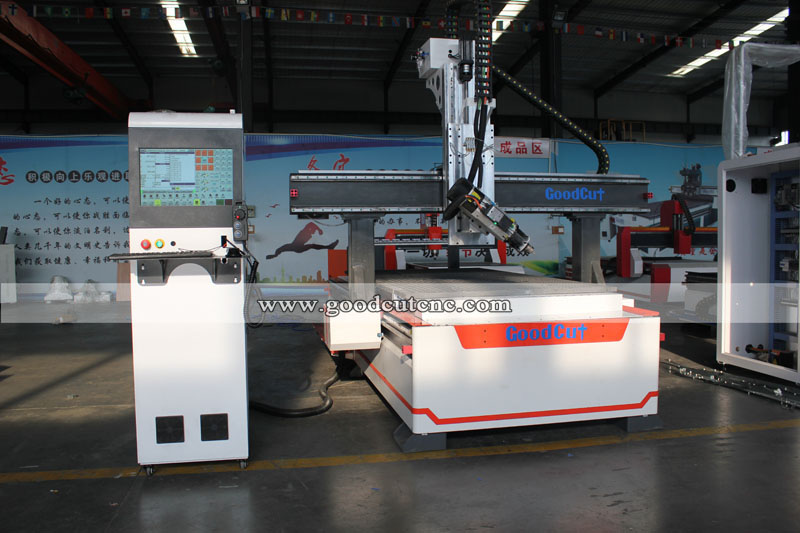

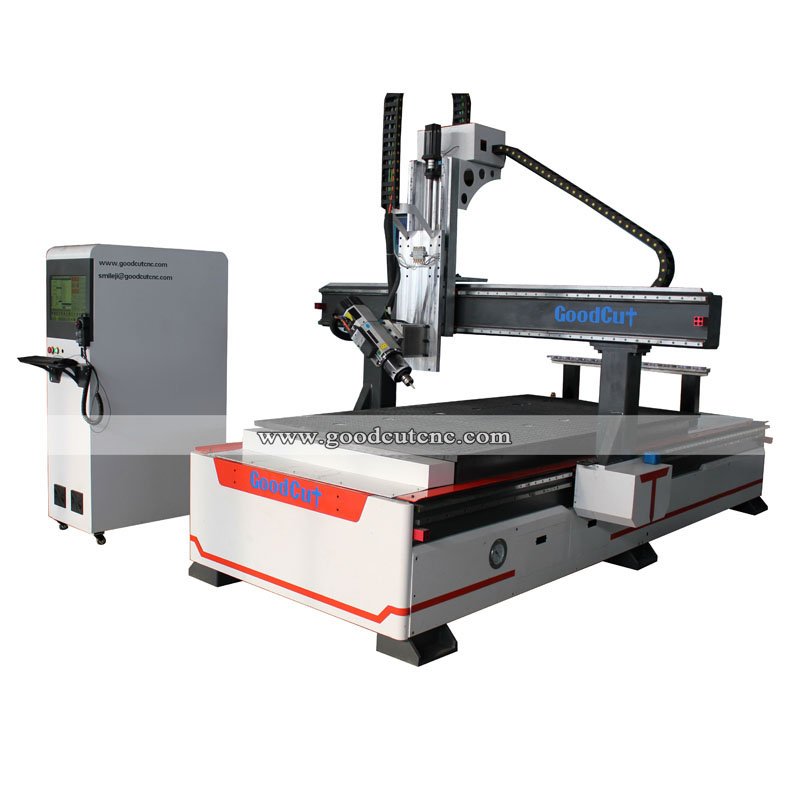

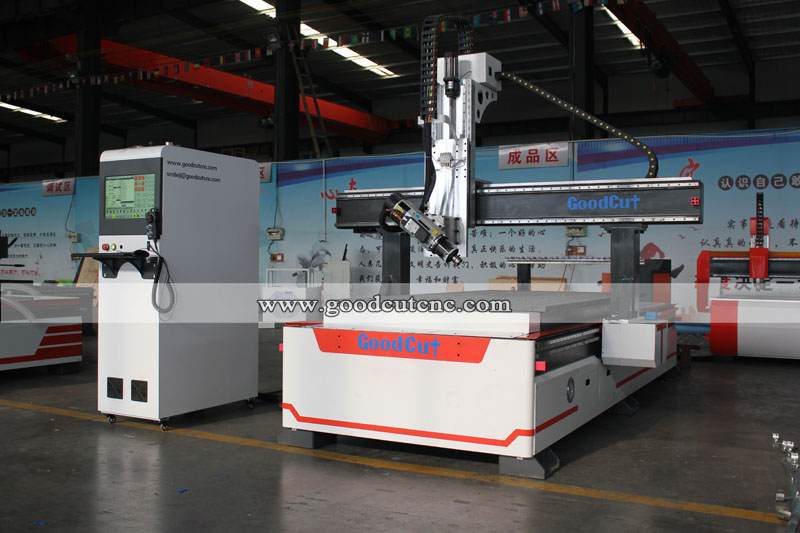

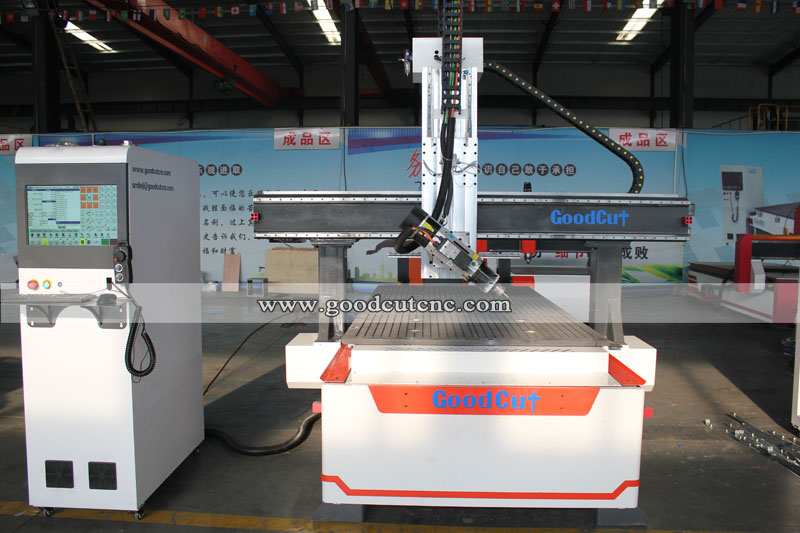

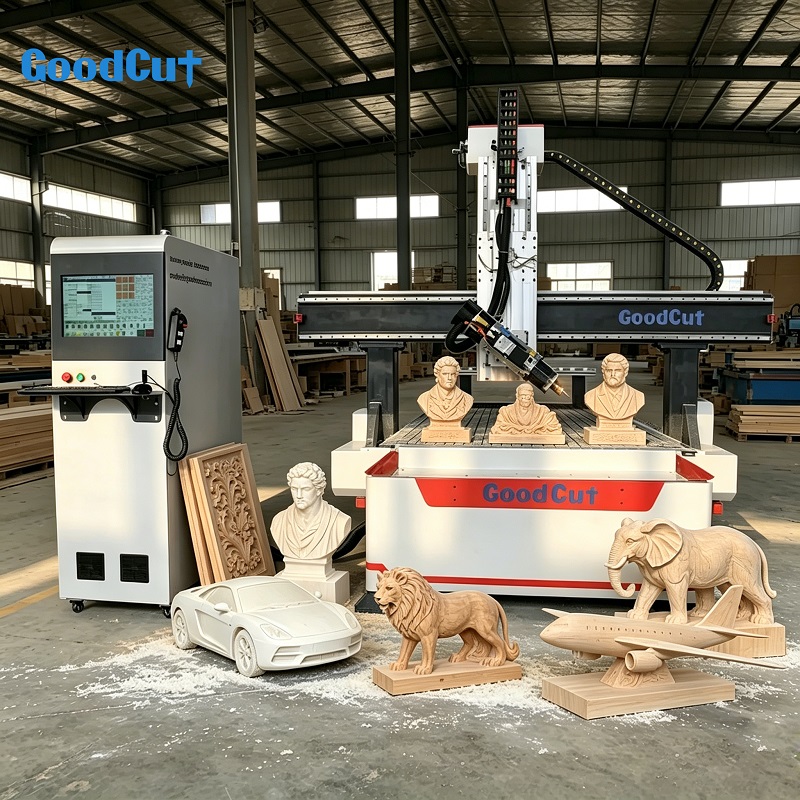

GC1325ATC-4Axis High Precision 4 Axis Linear ATC Wood Router CNC Machine Router with 180 Degree Rotated Spindle for Wood Working

  • Linear automatic tool changer
  • 9kw 180 degree rotated spindle
  • Heavy duty frame
  • Vacuum Adsorption + T-slot
  • Product description: Heavy duty frame, more stable and has high precision 12pcs linear automatic tool change magazine HQD 9kw air cooling spindle, 180 degree rotated Servo motor and driver
  • INQUIRY   EMAIL

GC1325ATC-4Axis High Precision 4 Axis Linear ATC Wood Router CNC Machine Router with 180 Degree Rotated Spindle for Wood Working

Parameter:

Working Area:
1300*2500*300mm
Spindle Power:
China HQD 9.0kw air cooling spindle, 180 degree rotated
Spindle Rotating Speed:
0-24000rpm
Control System:
LNC control system
Power Supply:
AC380/220v±10, 50 HZ
Worktable:
Vacuum Table and T-slot
Driving Syestm:
Leadshine servo motors and drivers
Transmission:
X,Y :Gear rack, high accuracy square guide rail, Z: ball screw TBI and hiwin square guide rail
Locating precision:
<0.01mm
Min Shaping Character:
Character:2x2mm,letter:1x1mm
Operating Temperature:
5°C-40°C
Working Humidity:
30%-75%
Working Precision:
±0.03mm
System Resolution:
±0.001mm
Graphic Format Supported:
G code: *.u00, * mmg, * plt, *.nc
Compatible Software:
ARTCAM, UCANCAM ,Type3 and other CAD or CAM softwares
Optional:
 Italy HSD 9.0kw Air Cooling Spindle
Japan Yaskawa/Taiwan Delta Servo Motor and Driver
Weihong NK300 Control System/Taiwan Syntec 6MB control system
 Water/Air / Oilless Vacuum Pump
CCD Camera / Viberating Knife
C Axia with Aggregates
Drilling Bank for hole



Feature:

1.Welded pipe steel lathe bed, strong and never out of shape

2. 4 axis cnc router , is specially for 3D work , the A axis can rotate +/- 90 degree

3.The machine's main parts are all from world famous suppliers, such as Syntec control system, Sampo reducer, spindle, Delta inverter and Becker vacuum pump, all components are from global leaders.

4.With this machine, you can make different surface carving, arc-surface milling, bend surface machining for 3D jobs, like special shaped arts, bended doors or cabinets.)

5.Double motors and drivers of Y axis which can ensure steady movement

6.Rack gear transmission ensures fast speed and high accuracy

7.Imported square rail ensures high accuracy and heavy workload

8.It can work on foam, MDF, Acrylic, wood, and the soft metal etc.


Detailed parts:

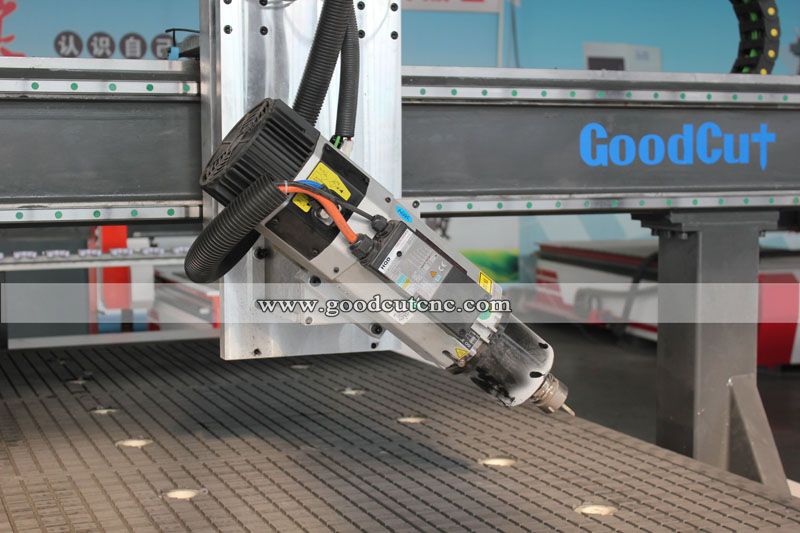

1. HQD 9.0 kW Air cooling spindle.

Well-known brands, long working life, low noise, strong cutting ability to ensure the long time working,easier to change bearing.

Rotate head

Make spindle rotate at C axis to 180°, suitable for side drilling and cutting

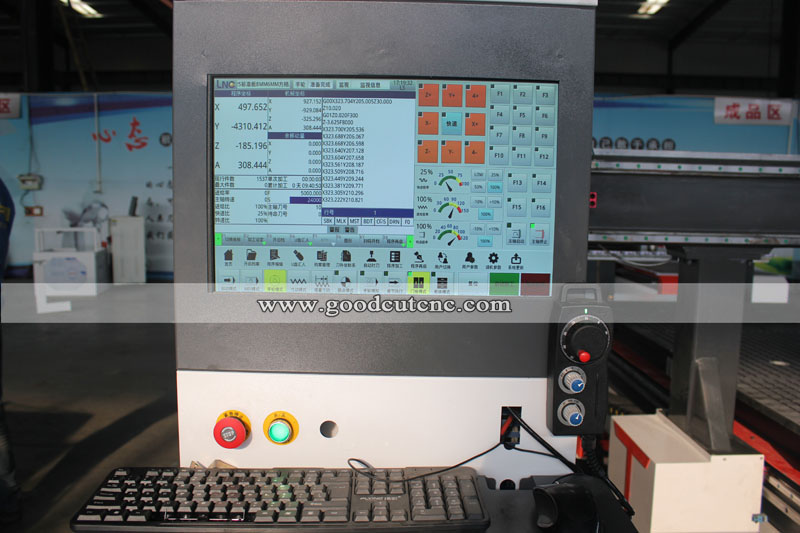

2. Taiwan LNC control system


Specified for 4 axis CNC Router, High-performance drive motor to ensure that the machines high speed and accuracy of 4 axis CNC router with spindle 180 degrees rotary.


3. Japan Yaskawa Servo Motor

High-performance drive motor to ensure that the machines high speed and accuracy of 4 axis cnc router with spindle 180 degree rotary.

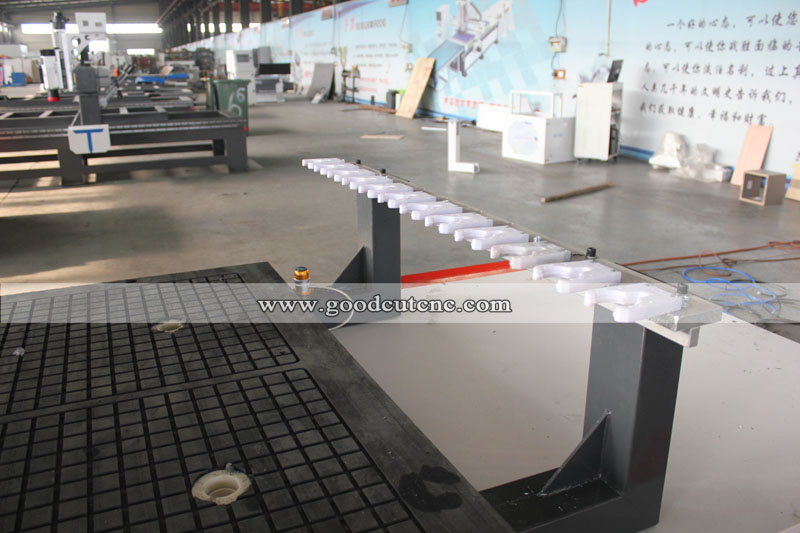

4. Linear ATC (automatic tool change) type.
---Machine with Linear type 8-12 tool Magazine. We can make it according your required 8-12 cutter automatic change, for complex wood carving


5. Automatic lubricating system, one touch can finish periodic maintenance easily.

6. Vacuum and T-slot work table combine with 7.5kw vacuum pump
--- High power vacuum pump for the big size materials can use the vacuum for hold, if for the small size can use the T-slot for fix the small or irregularly shaped materials

7. HIWIN linear guide: from Taiwan, it is used for linear reciprocating stadium.


Application:

* Furniture: wooden doors, cabinets, plate, office and wood furniture, tables, chair, doors and windows.

* The wood products: voice box, game cabinets, computer tables, sewing machines table, instruments.

* Plate processing: insulation part, plastic chemical components, PCB, inner body of car, bowling tracks, stairs, anti-Bate board, epoxy resin, ABS, PP, PE, PEHD and other carbon mixed compounds.

* Decorate industry: Acrylic, PVC,MDF, artificial stone, organic glass, plastic and soft metals such as copper, aluminum plate engraving and milling process.
