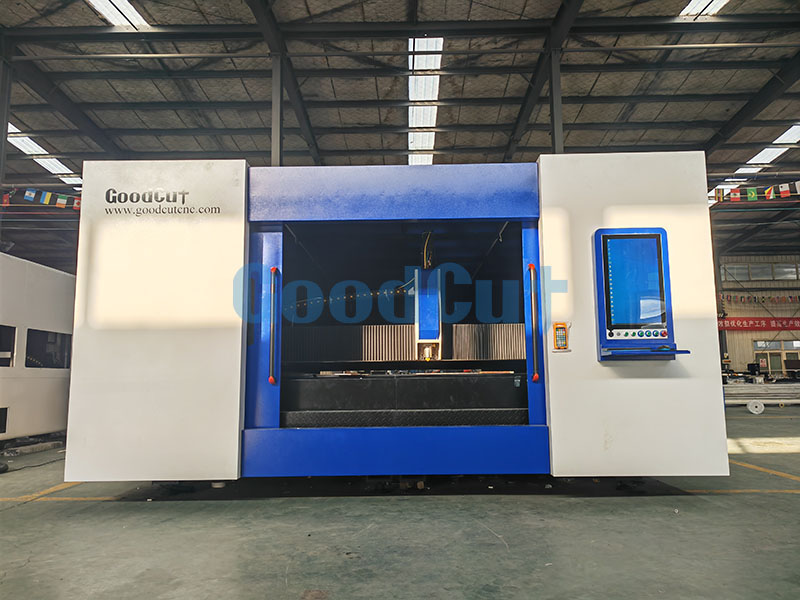

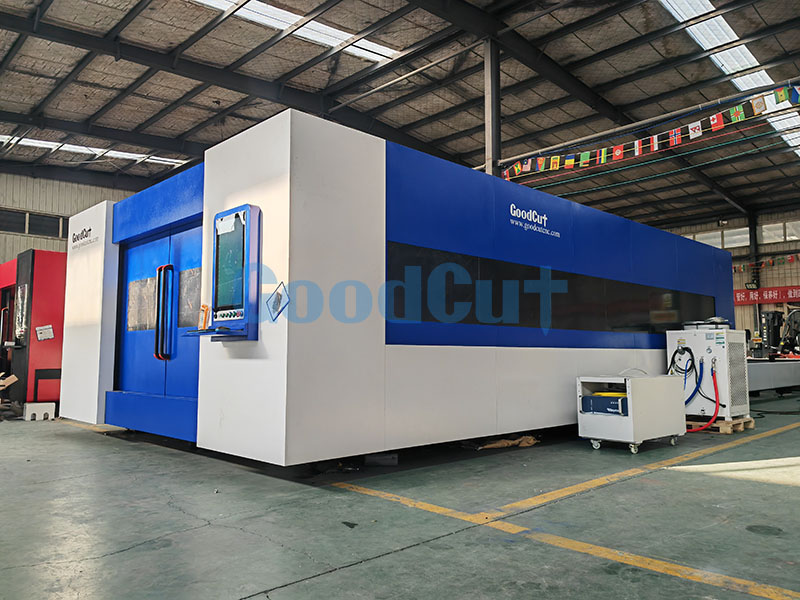

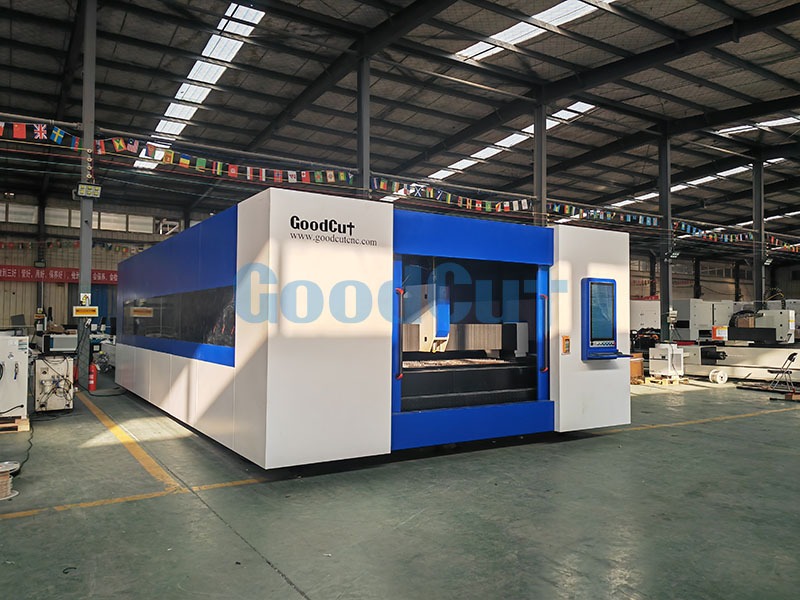

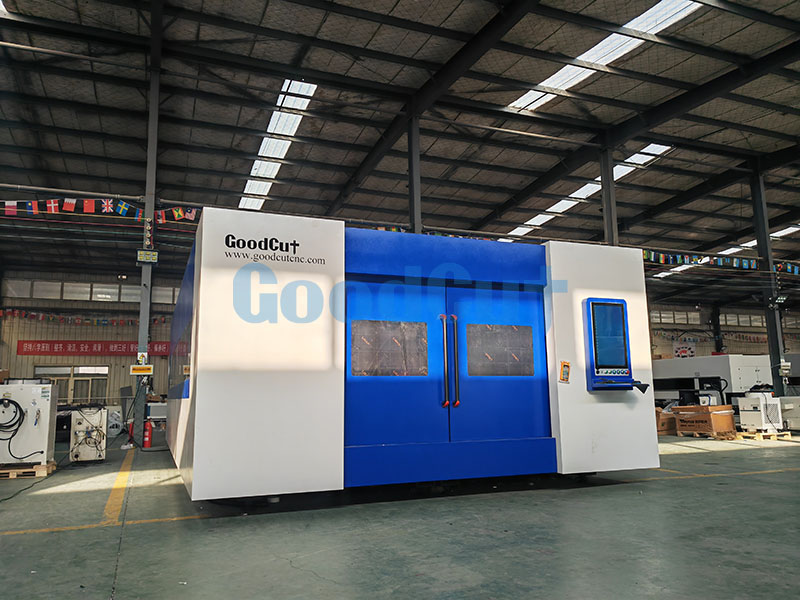

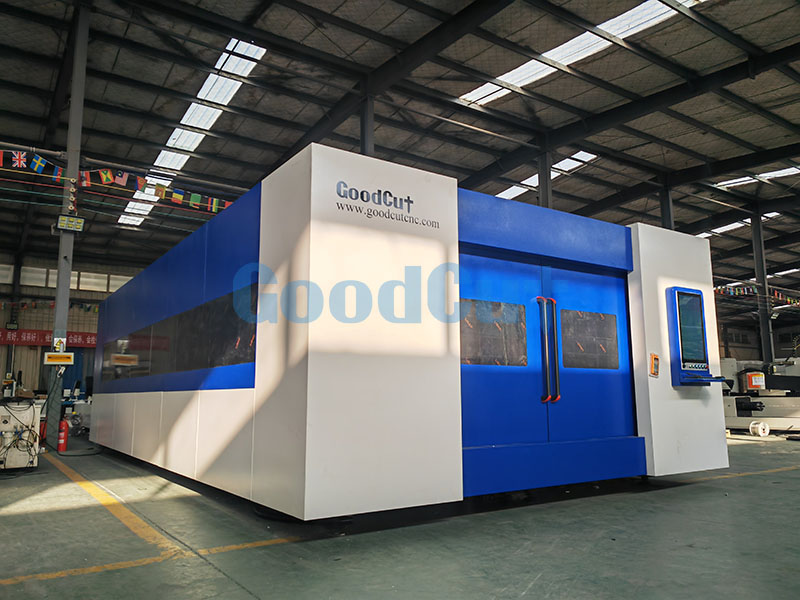

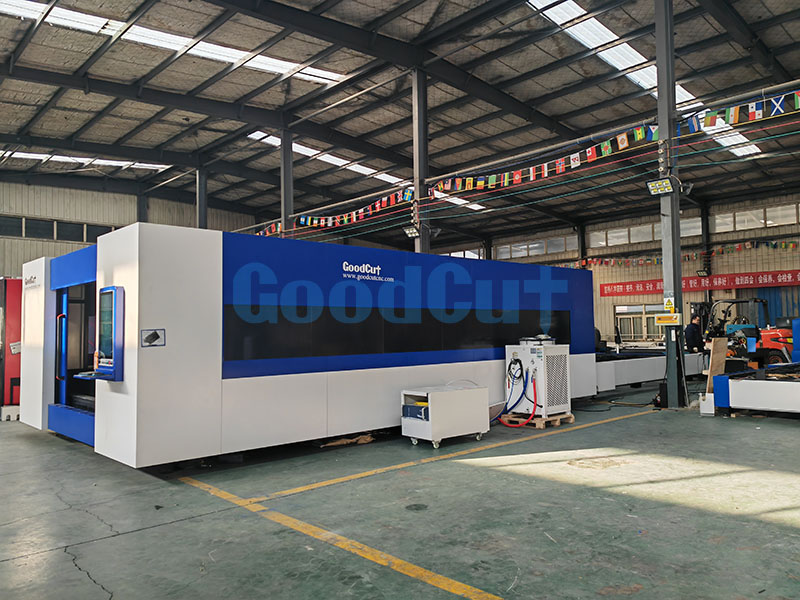

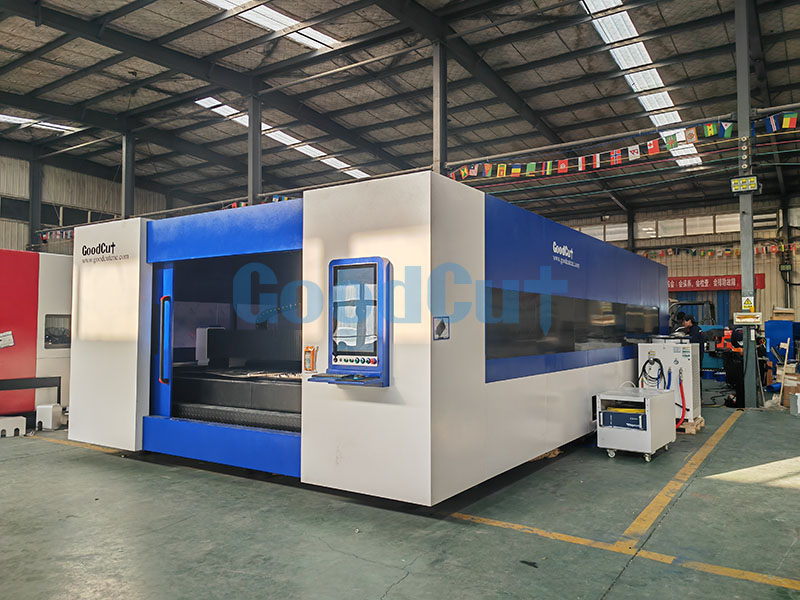

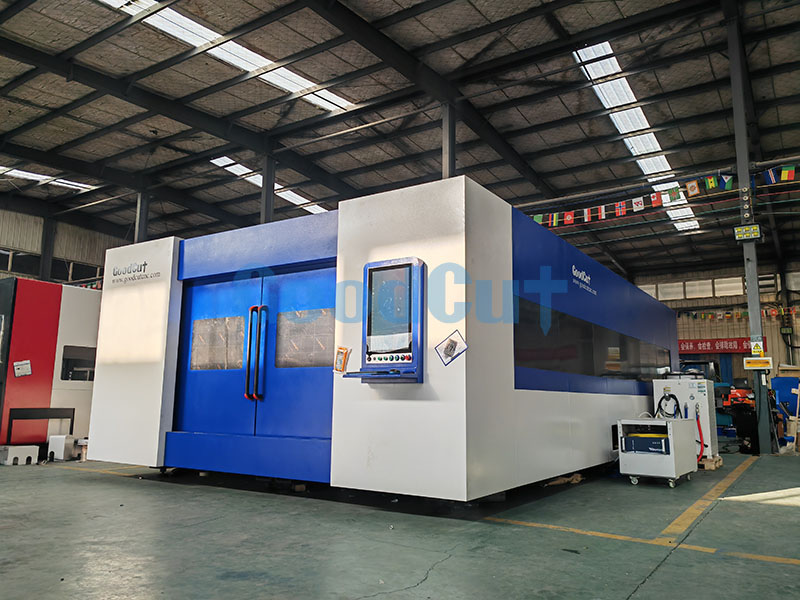

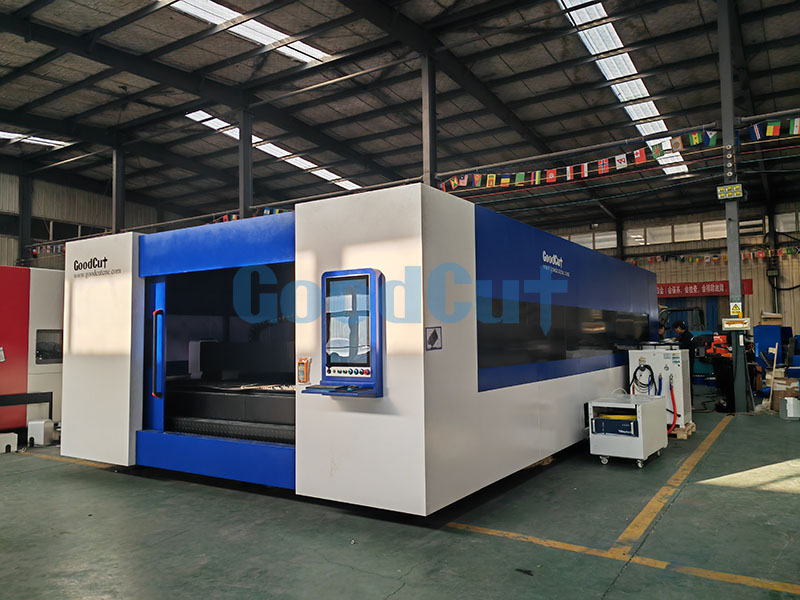

GC3060FC-D Double Table Fiber Laser Cutting Machine with Enclosed Protective Cover

  • with safe protective cover, exchange platform
  • Raycus IPG MAX laser source

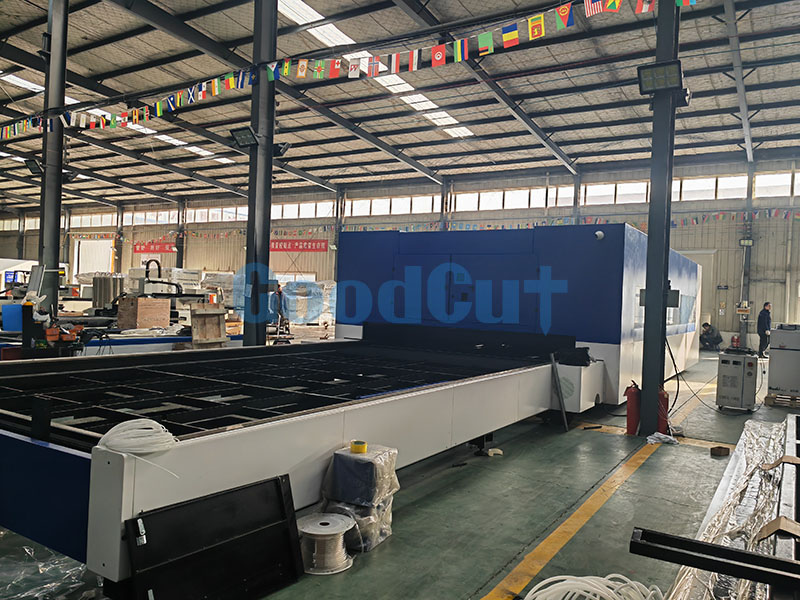

  • Double table
  • Cypcut control system
  • Product description: Stainless Steel Carbon Steel etc cutting machine with safe protective cover, exchange platform 1kw 2kw 3kw 4kw 6kww 8kw 12kw laser source Japan Yaskaw servo motor and driver
  • INQUIRY   EMAIL

GC3060FC-D Double Table Fiber Laser Cutting Machine with Enclosed Protective Cover

Feature:


1. Adopt industrial heavy duty steel structure, plate steel joint welding with square pipe steel, under heat treatment, will not deform after long time using.

2. Configure with Taiwan HIWIN linear rail, to ensure durable and high precision for long time processing.

3. X, Y axis configure with high accuracy grinding type gear rack, Japan Shimpo reducer, high speed and precision can be ensured, Z axis are transmitting by high accuracy rolling ball screw.

4. Adopt France Schneider AC servo system for all axis, larger power, close-cycle control, high precision positioning, stronger torque force, dynamic corresponding time is shorter, and the overload resistance ability is strong.

5. Adopt industrial optical fiber cutting system, easy to install, maintenance and cam module based on autocad kernel development, built-in process, ensure high-quality cutting effect.

6. Adopt professional WSX, Raytools laser cutting head, imported optical lens, focus spot smaller, cutting lines more precise, higher efficiency and better processing quality can be ensured.

7. Dual air path control, equipped with Japan SMC intelligent gas unit, automatic pressure regulation, air exchange, pressure detection, more simple to use.

8. Fiber laser transmitting, flexible processing, realized high accuracy cutting on every point.

9. Compatible with multiple software, can design ant graphic and letters as you like, operating simple, flexible and easy.

Paramenter:

Model
GC3060FC-D Fiber laser cutting machine
Working Area
3000*6000mm
Laser Power
1000w/1500w/2000w/3000w/4000w/6000w/8000w
Whole cover
Yes
Working Table
Exchange table, can change table automatically
Maximum Idle Running Speed
1200mm/s
Position Accuracy
±0.05mm/m
Position Speed
20m/min
Minimum Line Width
± 0.02mm
Cutting Thickness
≤6mm
Control System
Cypcut
Position Type
red dot
Power Consumption
≤12KW
Working Voltage
380V/50Hz
Auxiliary Gas
oxygen,nitrogen,air
Working life of fiber module
More than 100000 hours
Fiber laser cutting head
Raytools Laser Cutting Head
Focus lens
Imported
Driver system
1500W Yaskawa servo motor made in Japan
Liner guider system
PMI made in Taiwan , (Option THK made in Japan)
Transmit system
Dual Rack & Pinion type
Rack system
made in Germany
Chain system
Igus made in Germany
Warranty time
3 years


Adopted Original German IPG fiber laser source or RAYCUS laser source, with long using life up to 150000 hours and high cutting speed up to 15m/min;


Japan YASKAWA Servo motor with double ball screw driving system, can make sure the cutting high precision especially comparing with the single driver system.

Imported World Famous RAY tools laser head with auto focusing height follower, which can ensure the constant same distance between the head and cutting material

♦The cutting slot is very slim, can reach up to 0.05mm. The machine is very suitable for processing precision parts with high efficiency.

Automatic Lubrication System for Mechanic, which can lubricate the linear guiderail nearly 500 times per minute to make sure the high precision.

Convenient Collecting System, which has the special funnel design to make collecting more easy

♦Free of any maintenance, because of Fiber optical transmission, fiber line transmission, no need reflect lens, without optical adjustment, save maintenance cost.


Optional part: Rotary device for round and square tube cutting.


Application

Mainly used for cutting carbon steel, silicon steel, stainless steel, aluminum alloy, titanium alloy, galvanized steel sheet, pickling board, aluminum zinc plate, copper and many kinds of metal materials cutting and so on.
Applied Industry:

Applied in sheet metal processing, aviation, spaceflight, electronics, electrical appliances, subway parts, automobile, machinery, precision components, ships, metallurgical equipment, elevator, household appliances, gifts and crafts, tool processing, adornment, advertising, metal foreign processing various manufacturing processing industries.
