X, Y, Z effective working area |
1300*2500mm / 1500*3000mm / 2000*4000mm (optional) |
|
Tool magazine |
12pcs linear tool change magazine |
|
Rotary diameter |
200mm / 300mm / 400mm diameter |
|
Spindle |

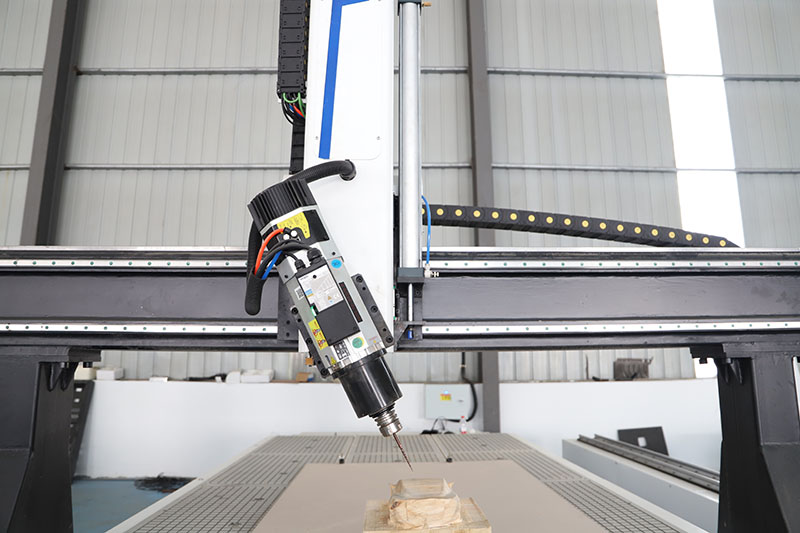

HQD / Italy HSD 9kw air cooling spindle swing head |
|
Inverter |
Fuling / Delta |
|
Motor and driver |
Leadshine / Taiwan Delta / Japan Yaskawa servo motor |
|
Control system |
Weihong / Taiwan Syntec / Siemens (optional) |
|
Table |
Vacuum adsorb table with T-slot+7.5kw vacuum pump |
|
Frame |
Heavy duty frame |
|
Transmission |
X Y Rack gear, Z Taiwan TBI ball screw, Taiwan HINWIN 20mm guide rails |
|
Software |
Artcam type3 |

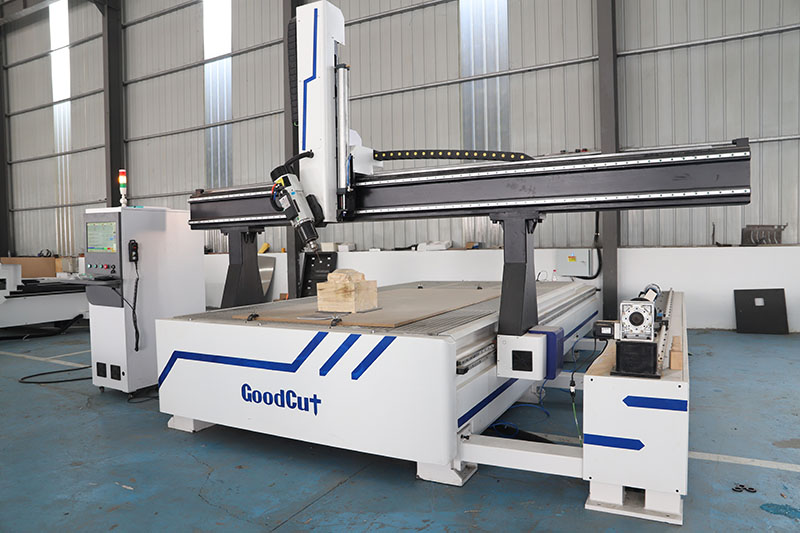

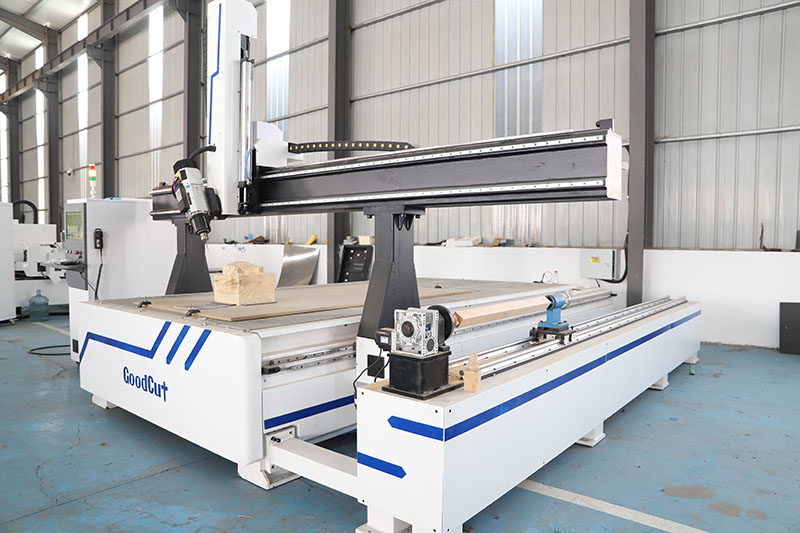

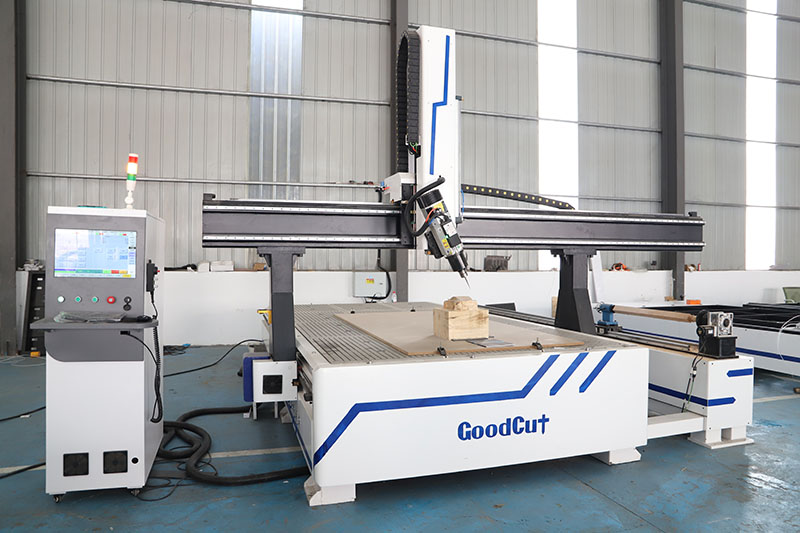

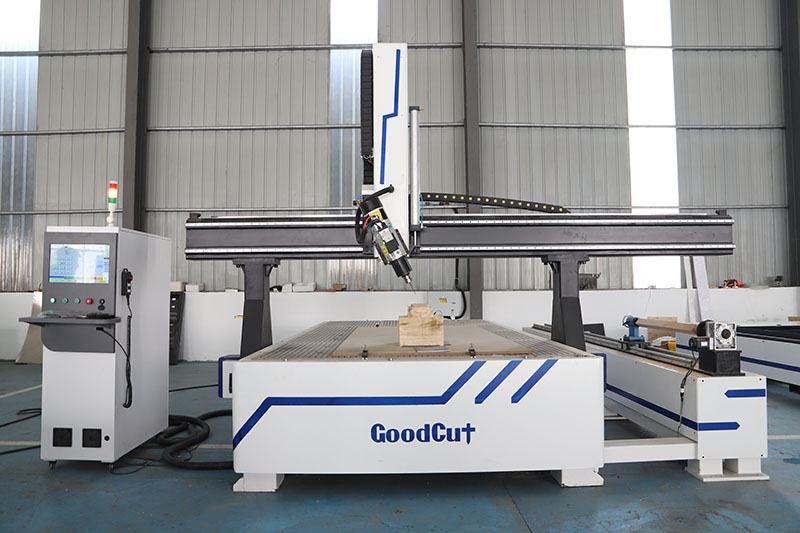

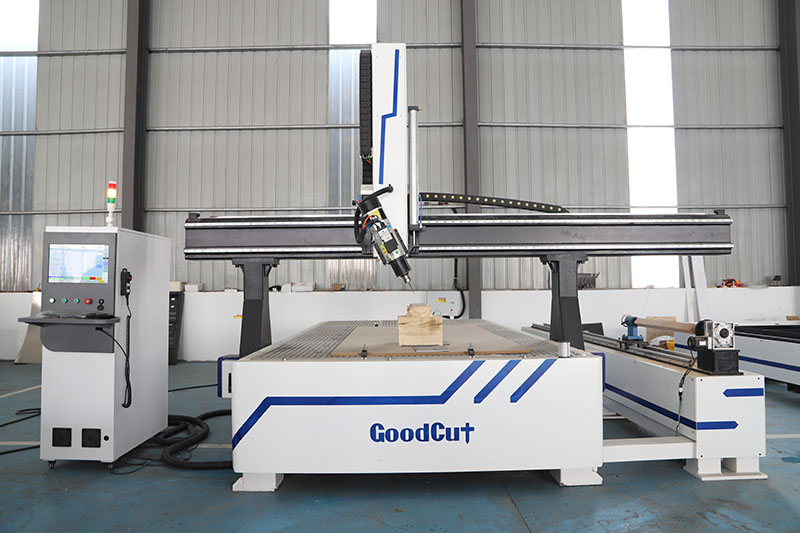

9.0kw HSD ATC spindle and carousel tool changing magazine, the machine can change tools automatically during the work. Working area is1300*2500*250mm, widely used in furniture industry.
HSD or HQD 9KW(12 HP )

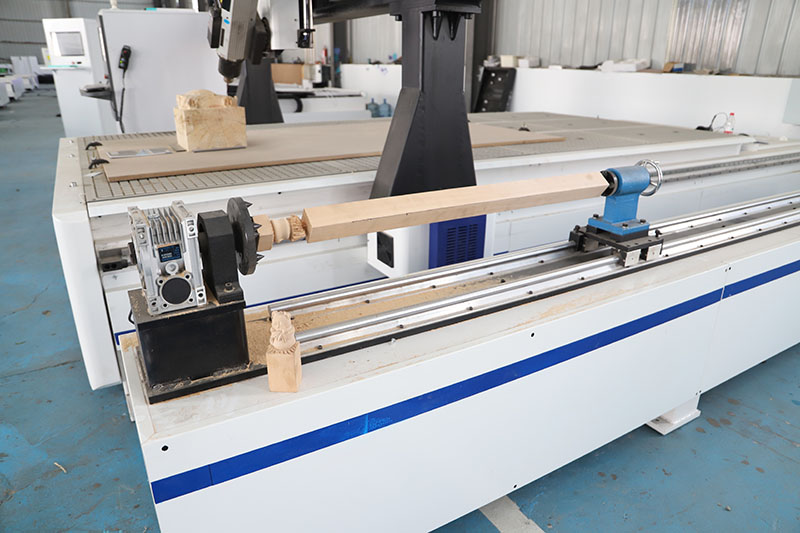

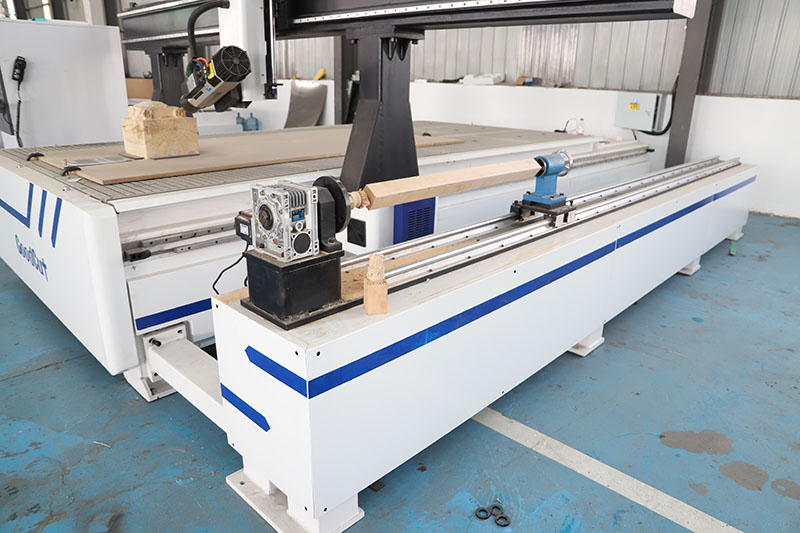

rotary axis with 100-500mm diameter, can process legs.
Maintenance free brushless Japan Yaskawa AC servo motors and drives

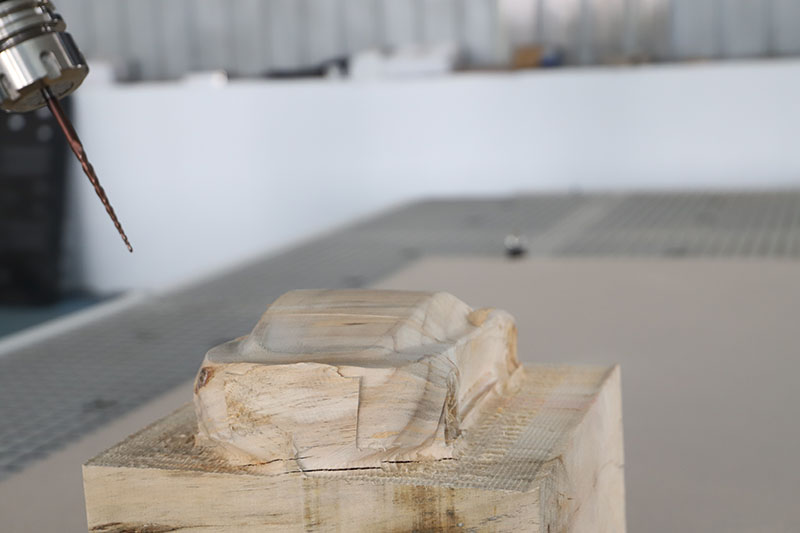

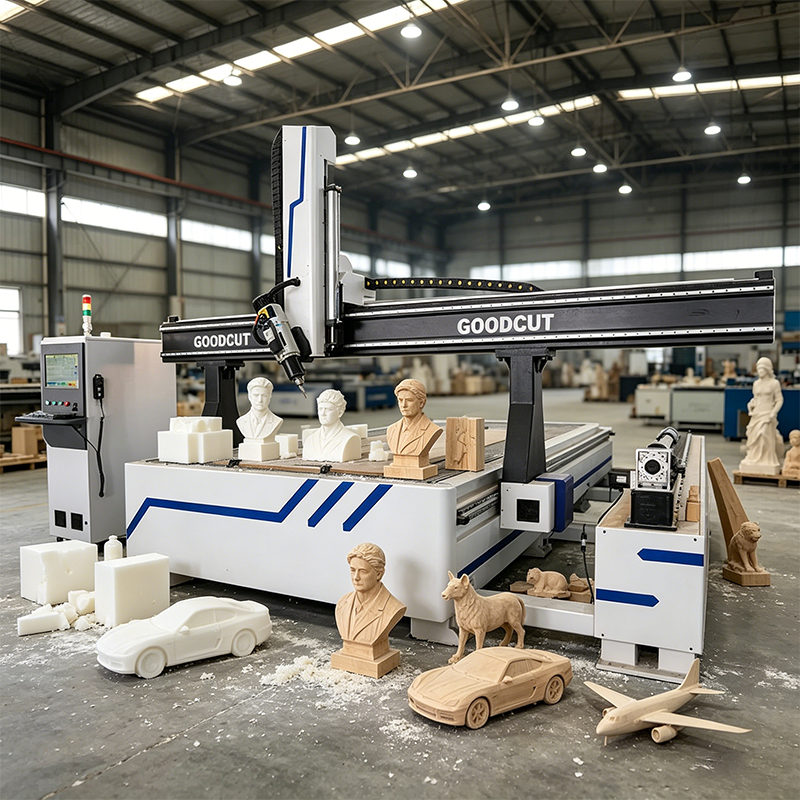

SAMPLES:
