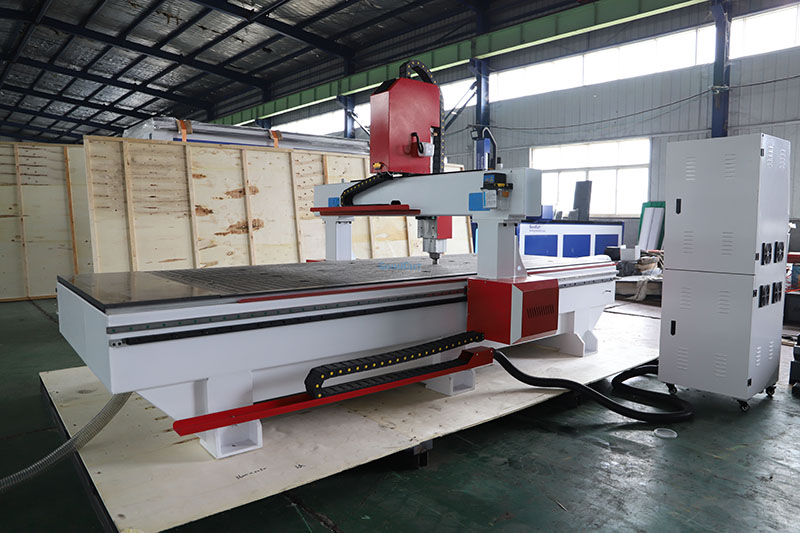

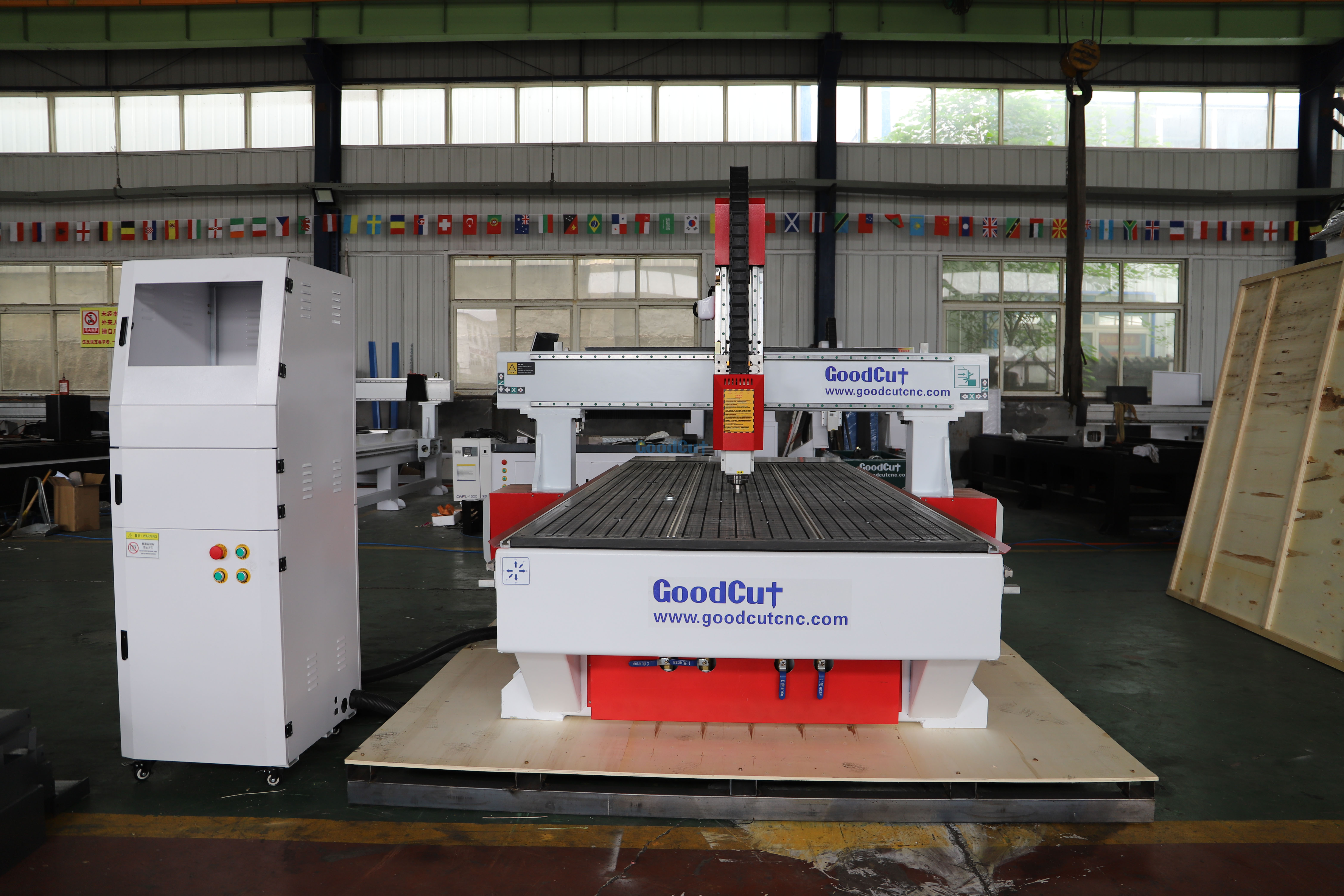

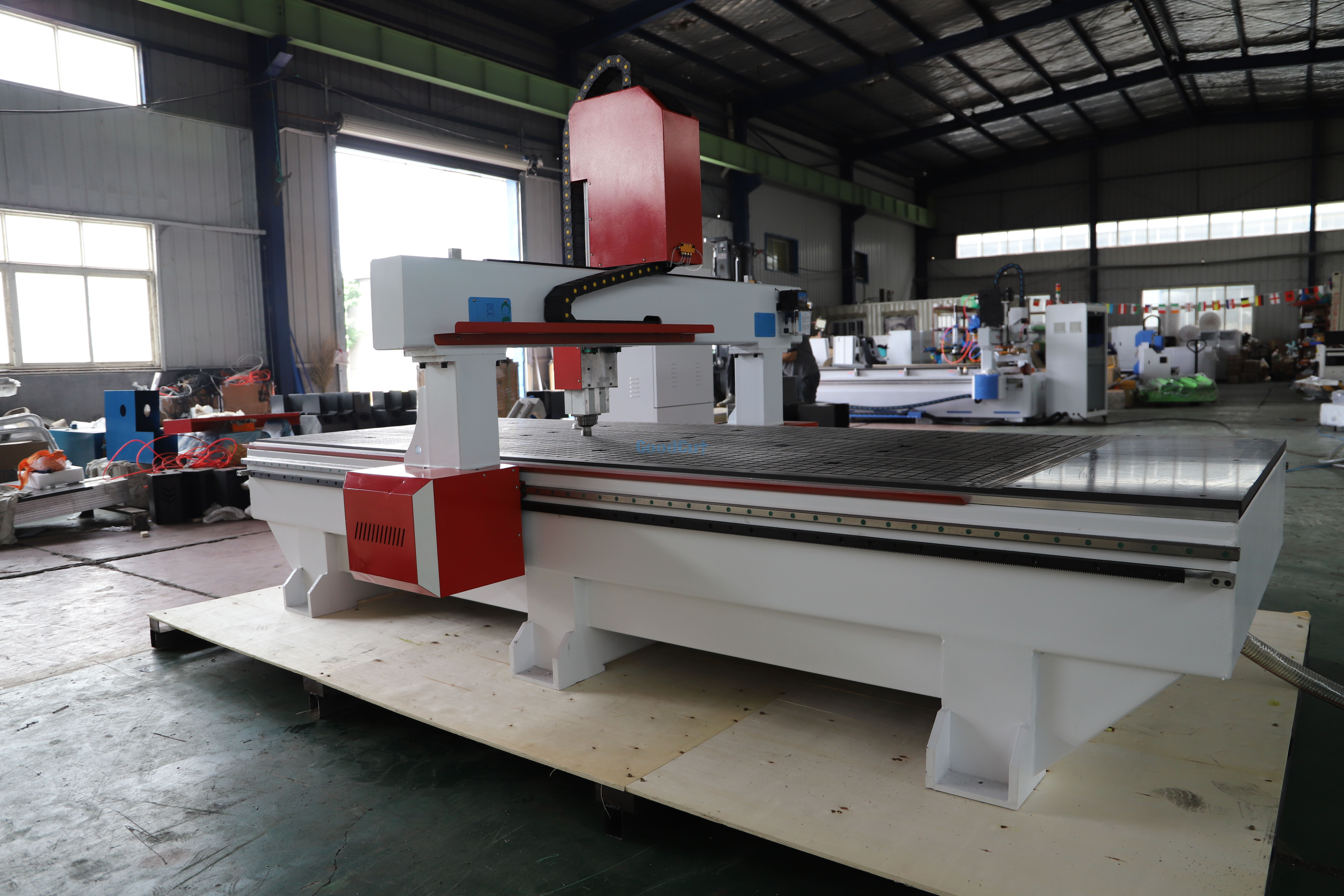

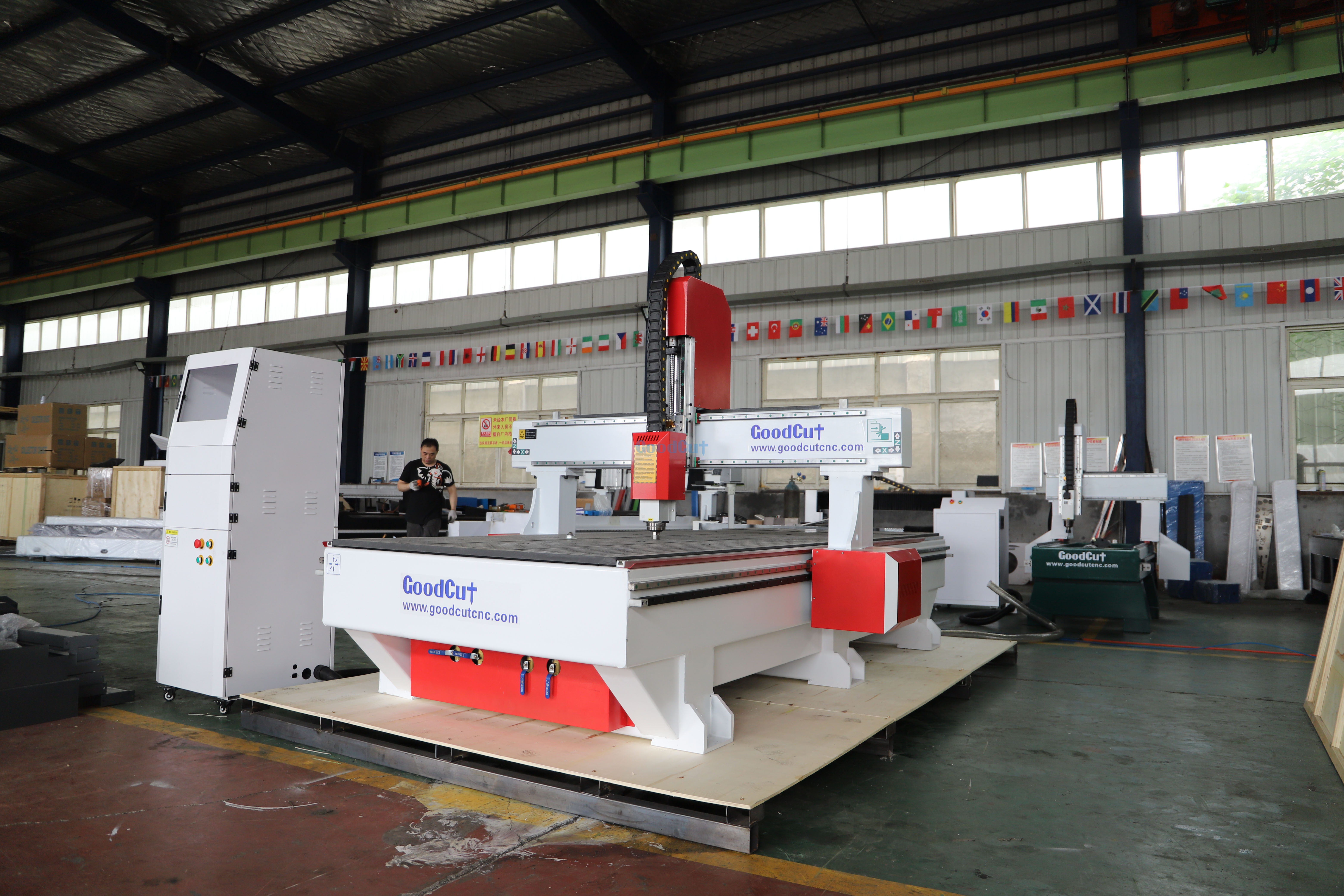

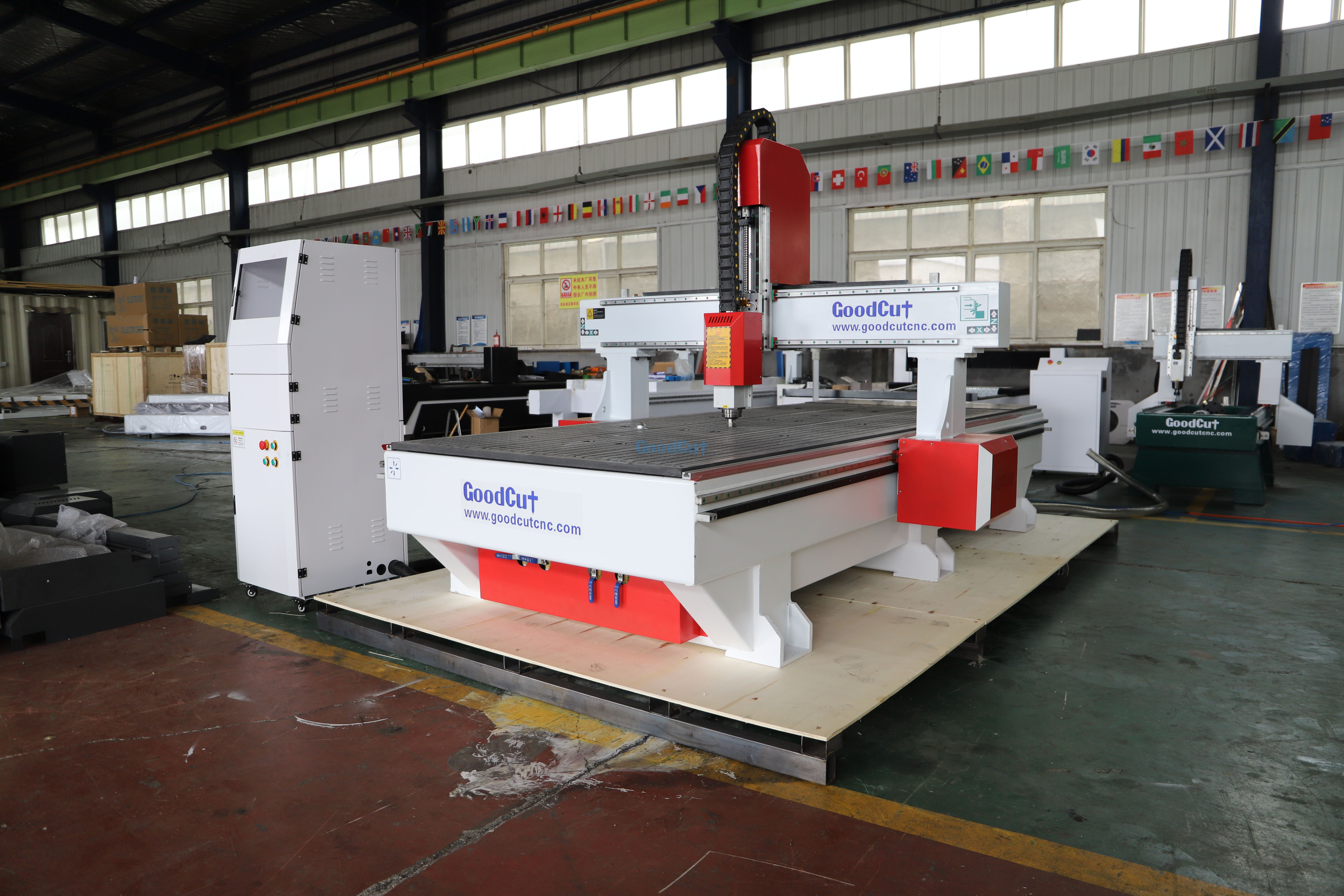

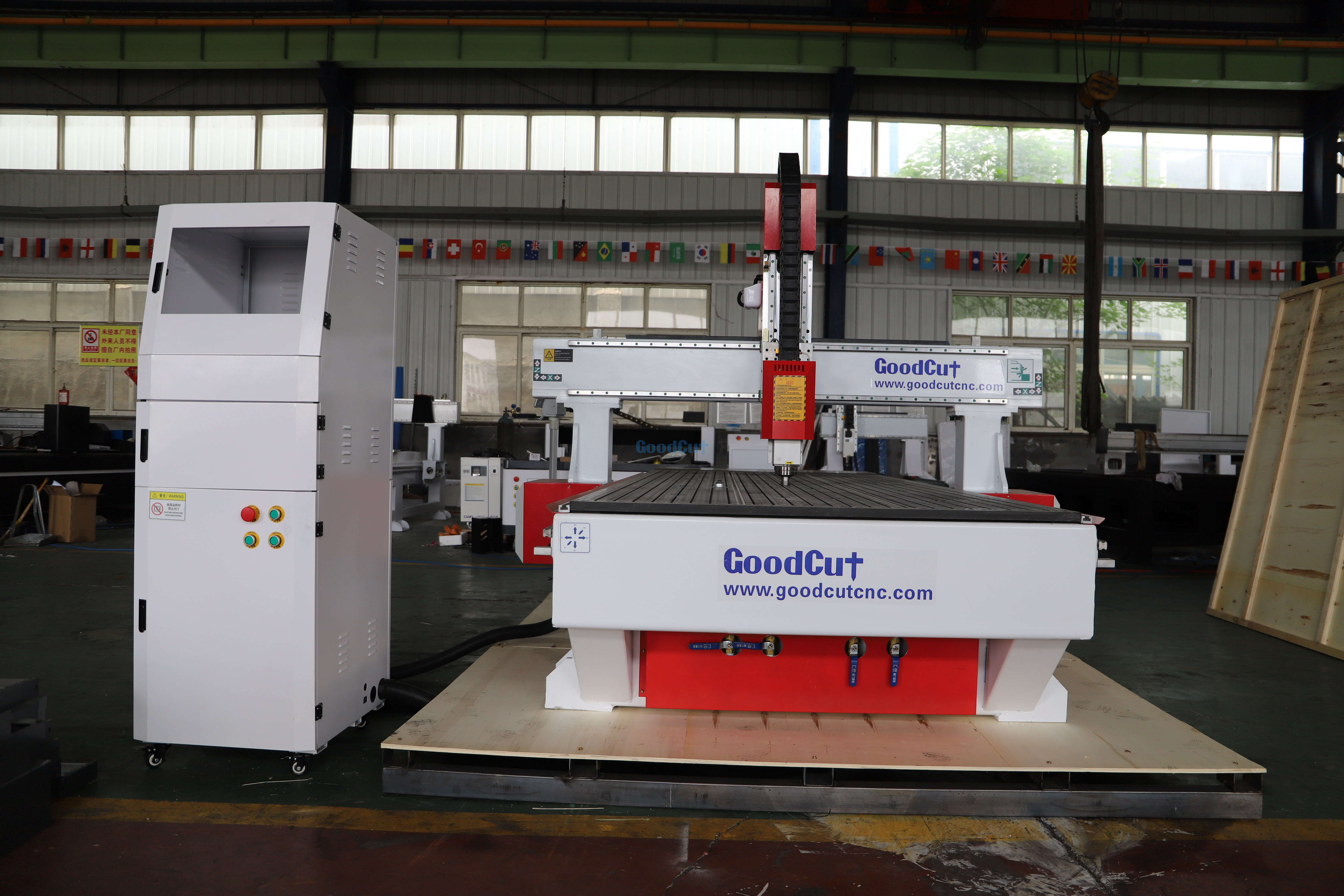

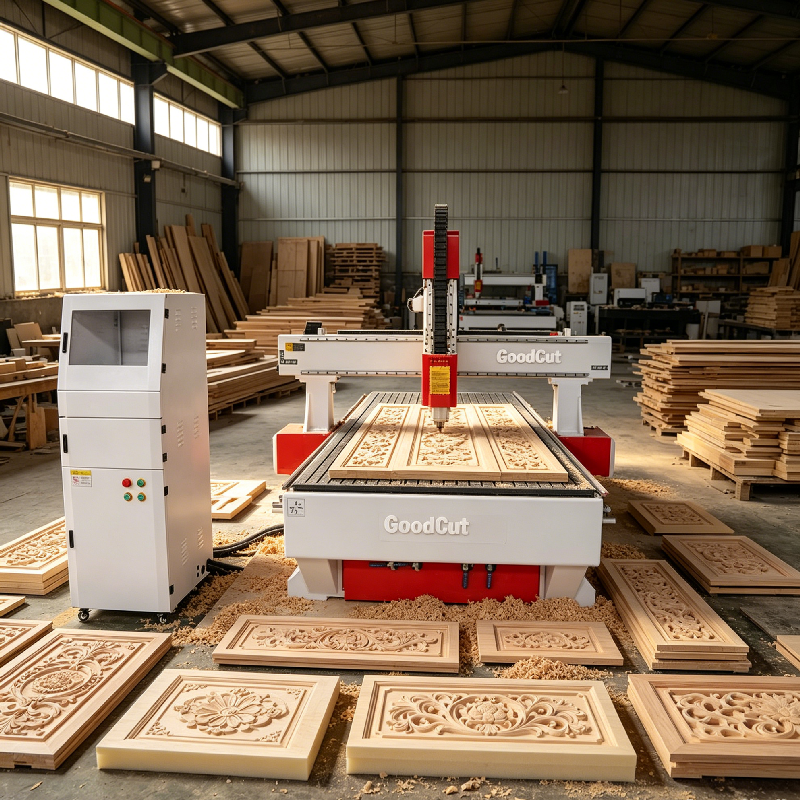

GC1325VH Heavy Duty CNC Router Machinery with Vacuum Table for Woodworking

Adsorbed vacuum table
Heavy duty frame
DSP control system
Woodworking
Product description: Heavy duty frame Adsorbed vacuum table 1300*2500mm working size for woodworking
INQUIRY EMAIL

GC1325VH Heavy Duty CNC Router Machinery with Vacuum Table for Woodworking

Parameters	GC1325VH cnc router
X,Y,Z Working Area	13002500200mm
Spindle Power	3.2kw water cooling spindle
X,Y,Z Traveling Positioning Accuracy	±0.01/2000mm

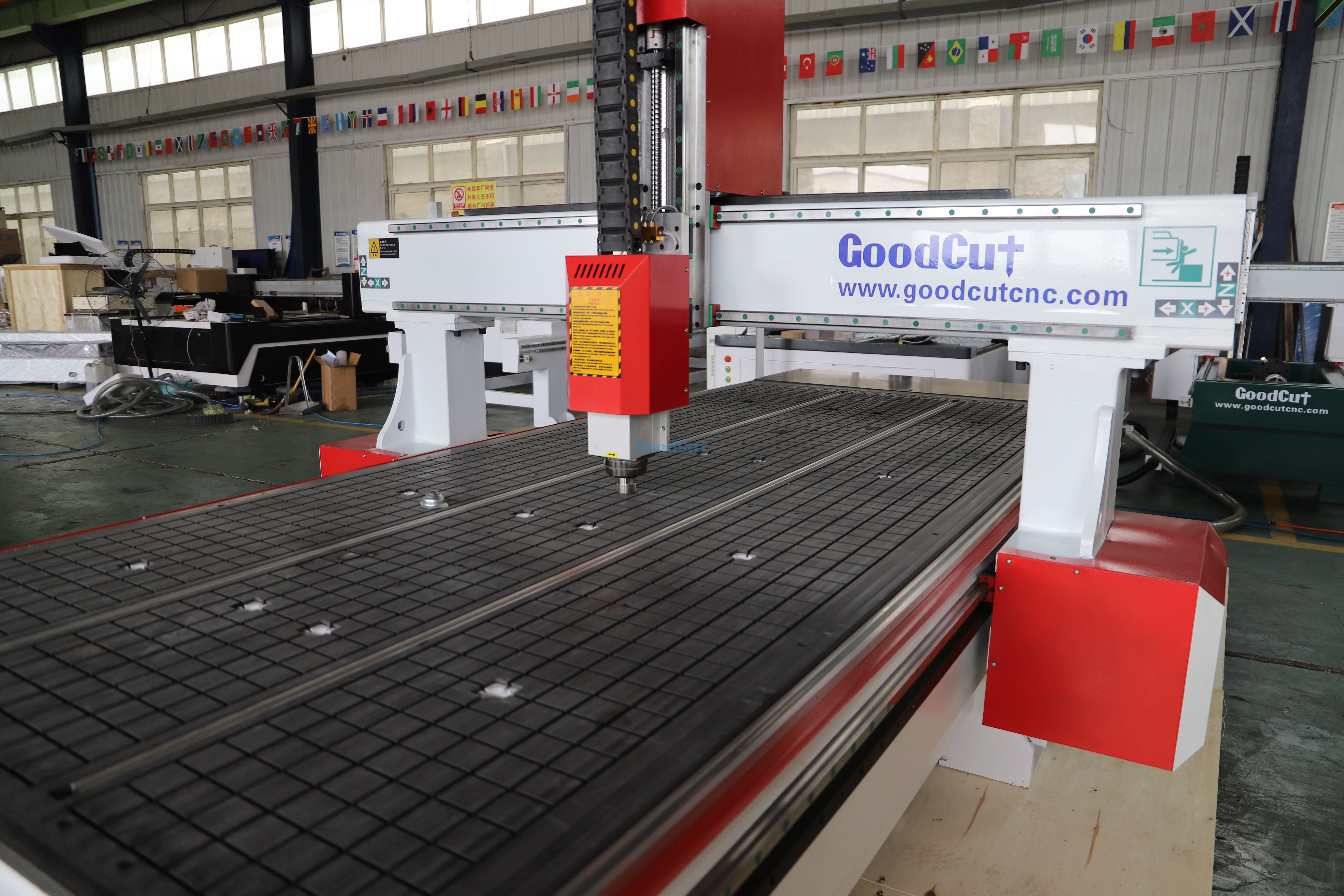

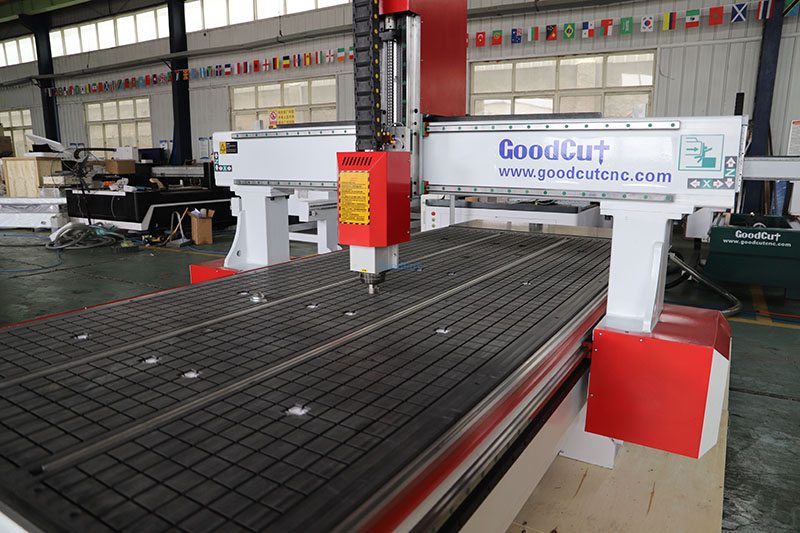

Table	Vacuum table
vacuum pump	5.5kw
X,Y,Z Rail and Transmission	Taiwan TBI Ball Screw Taiwan HIWIN guide rails
Max. Rapid Travel Rate	50000mm/min
Max. Working Speed	30000mm/min
Spindle Speed	24000RPM
Drive Motors	stepper motor and drivers or servo motor and drivers
Working Voltage	AC380V/3PH/50Hz or 220V
Command Language	G Code
Operating System	Nc studio/DSP/Mach3/Syntec
Software Compatibility	Option:Type3, Ucancam, Artcam, solidworks,etc.
Running Environment	Temperature: 0℃~45℃ Relative Humidity: 30%~75%
Parameters	Standard Specifications
Oil system	Handel
Frame structure	Welding structure
Collect	ER32 collect
Dust collector	Optional
wireless wheel	Yes

Feature:

1. Imported original HIWIN 20 square guide rails, longer life and smooth moving,
2. HQD 3.2KW water cooling spindle, global warranty,
3. Helical rack gear transmission,which can ensure faster speed,higher efficiency,stronger power,longer lifetime,and it makes the machine more stable.
4. With DSP control system, It can support offline operation. easy to operate.
5. Standard configured with stepper motor Leadshine, very powerful.
For option,we can change toJapan YASKAWA servo or Taiwan DELTA servo motors and drivers.

Application:

It is suitable for carving and making of wooden material. Machines can sculpt all kinds of patterns.
1) Mould: wood,wax, wood, gypsum,foams,wax.
2) Furniture: wooden doors, cabinets, plate, office and wood furniture, tables, chair, doors and windows.
3) The wood products: voice box, game cabinets, computer tables, sewing machines table,instruments.
4) Plate processing: insulation part, plastic chemical components, PCB, inner body of car, bowling tracks, stairs, anti bate board, epoxy resin, ABS, PP, PE and other carbon mixed compounds.
5) Decorate industry: Acrylic, PVC, MDF, artificial stone, organic glass, plastic and soft metals such as copper, aluminum plate engraving and milling process.
