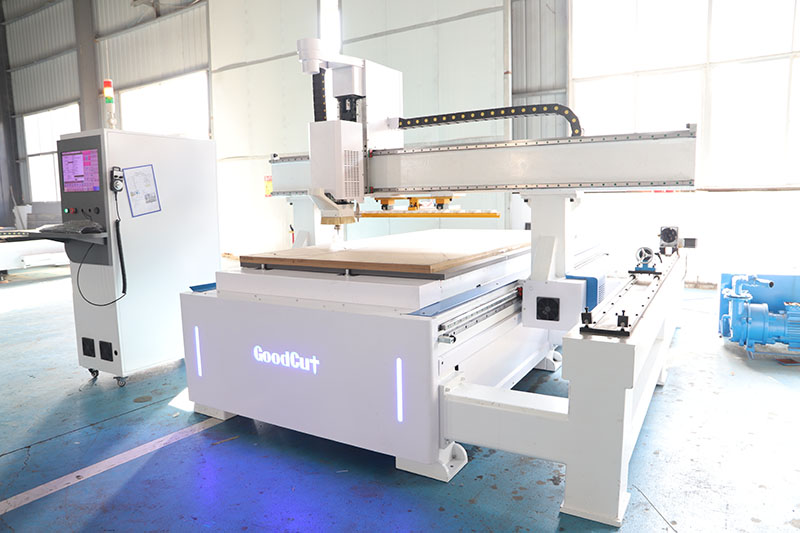

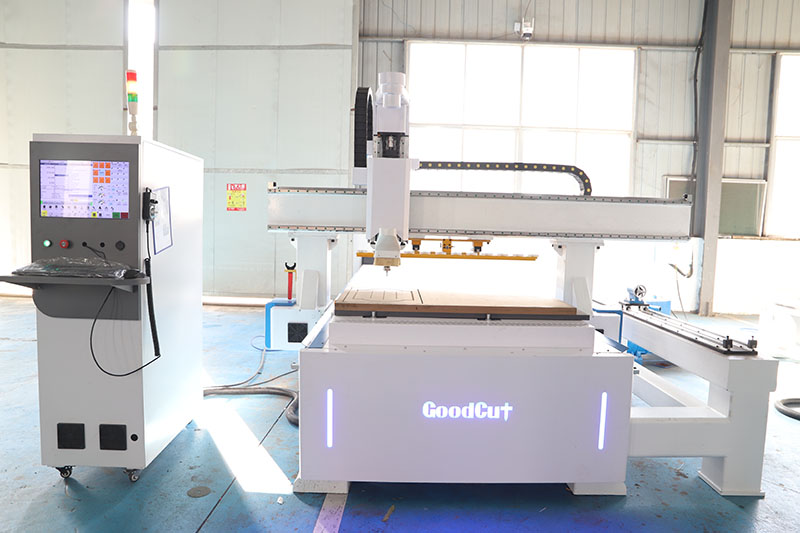

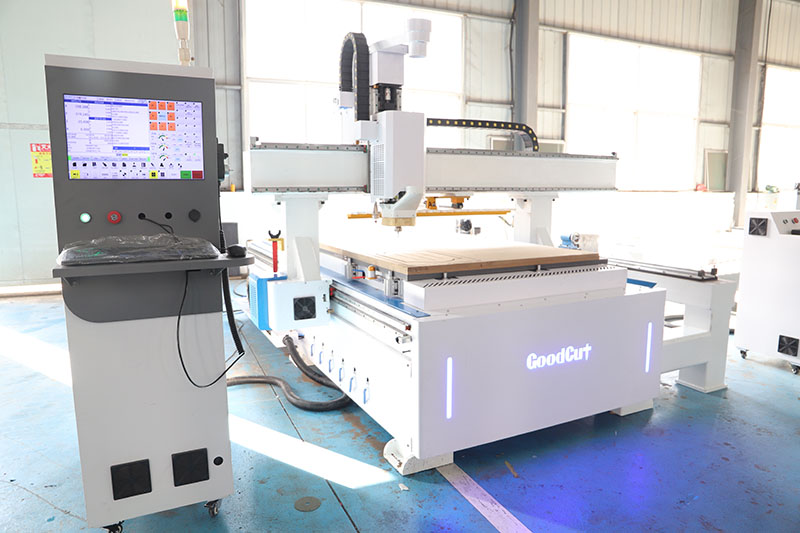

GC1325ATC-R Linear Automatic Tool Change CNC Router with Rotary Device

X, Y, Z effective working area

1300*2500mm / 1500*3000mm / 2000*3000mm (optional)

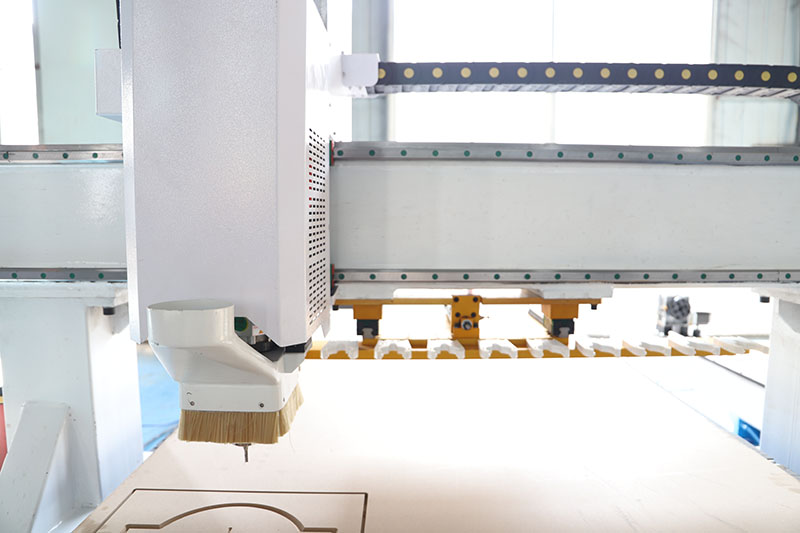

Tool magazine

12pcs linear tool change magazine

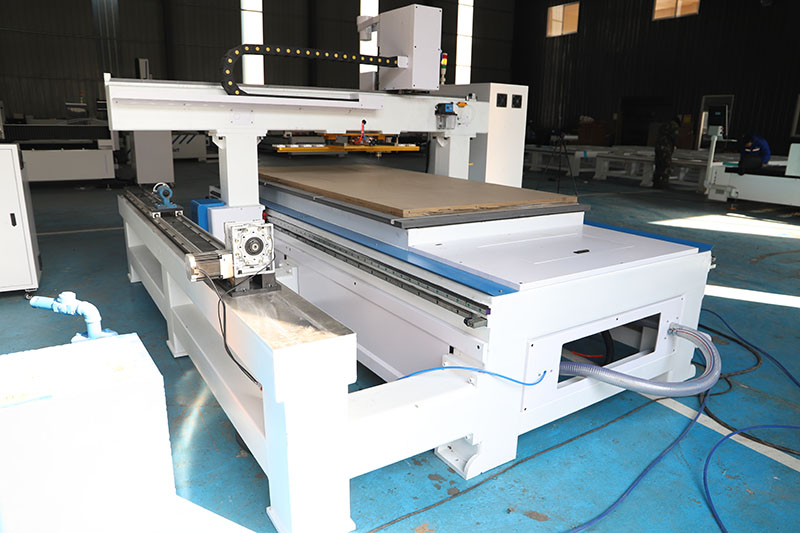

Rotary diameter

200mm / 300mm / 400mm diameter

Spindle

HQD / Italy HSD 9kw air cooling spindle

Inverter

Fuling / Delta

Motor and driver

Leadshine / Taiwan Delta / Japan Yaskawa servo motor

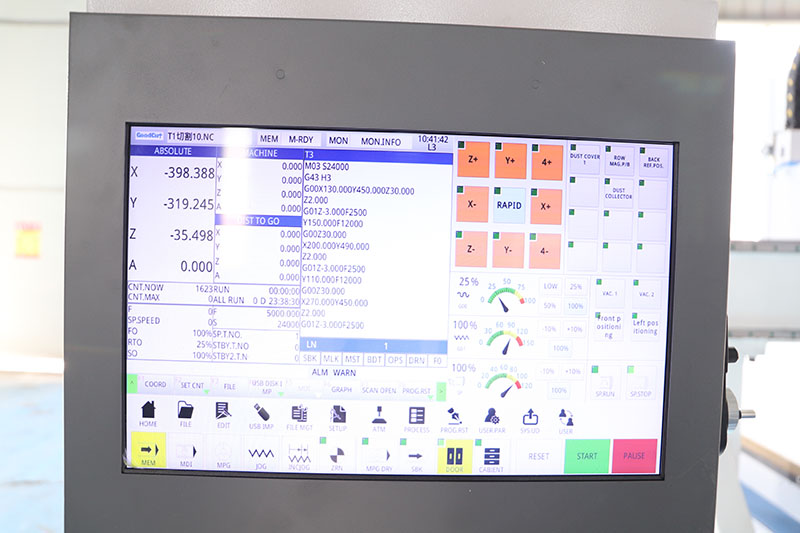

Control system

Weihong / Taiwan Syntec / Siemens (optional)

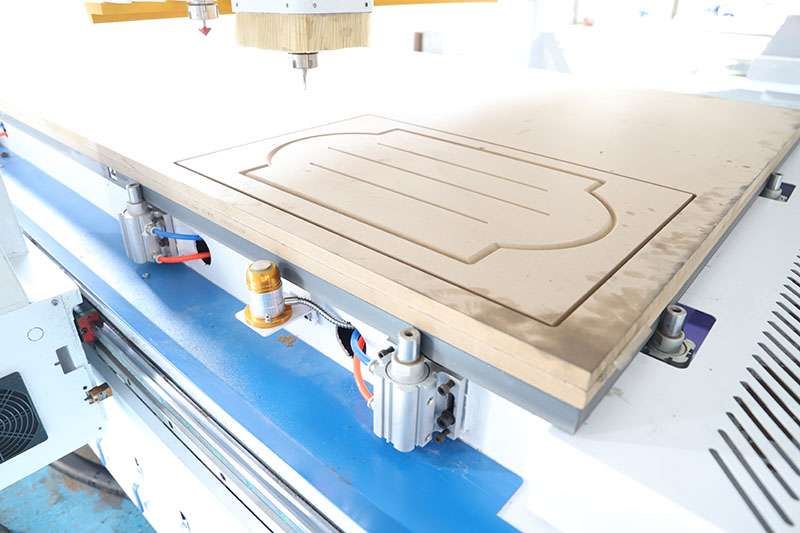

Table

Vacuum adsorb table with T-slot+7.5kw vacuum pump

Frame

Heavy duty frame

Transmission

X Y Rack gear, Z Taiwan TBI ball screw, Taiwan HINWIN 20mm guide rails

Software

Artcam type3
