GC1325-5 Axis Wood Foam EPS CNC Router Machine with 400mm Z Axis

ATC CNC Router
5 Axis Machine
Automatic Tool Changer
400mm Z Axis
Product description: High Configuration 4*8 Feet 5*10 Feet ATC CNC Router Machine 5 Axis CNC Router Made in China
INQUIRY EMAIL

Description:

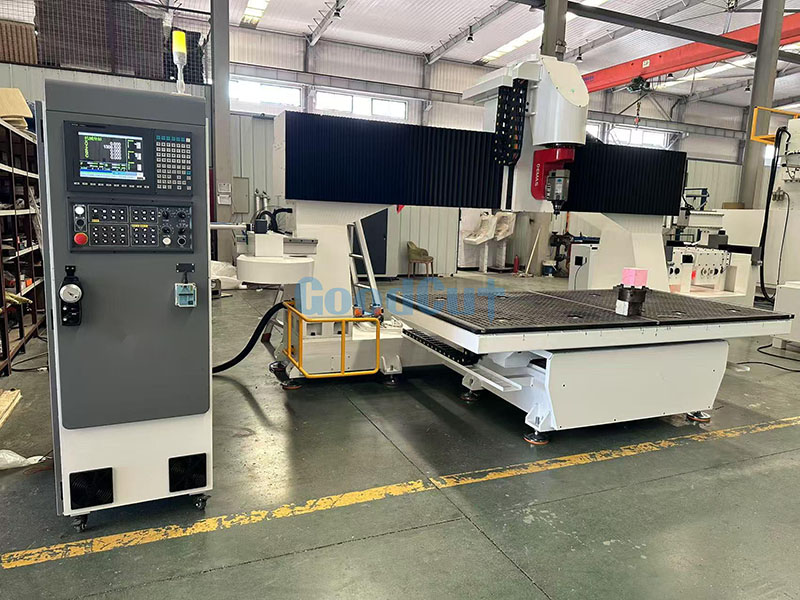

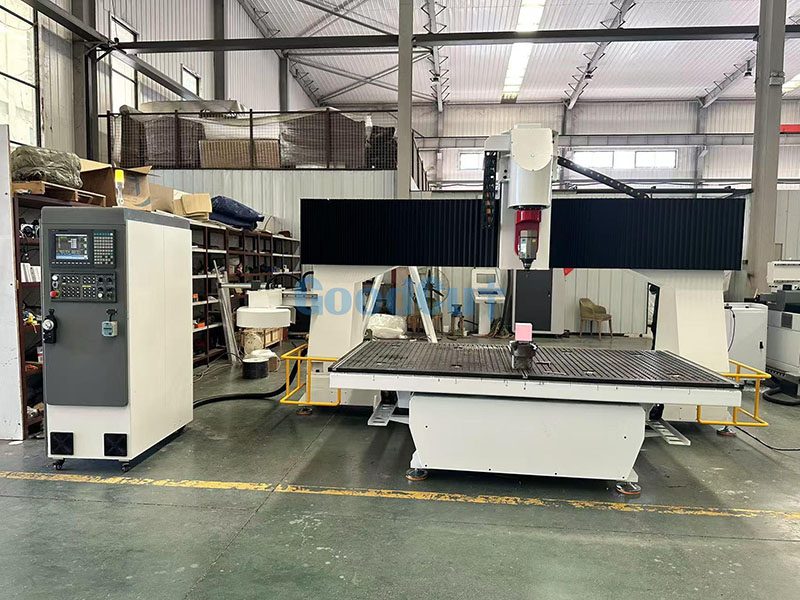

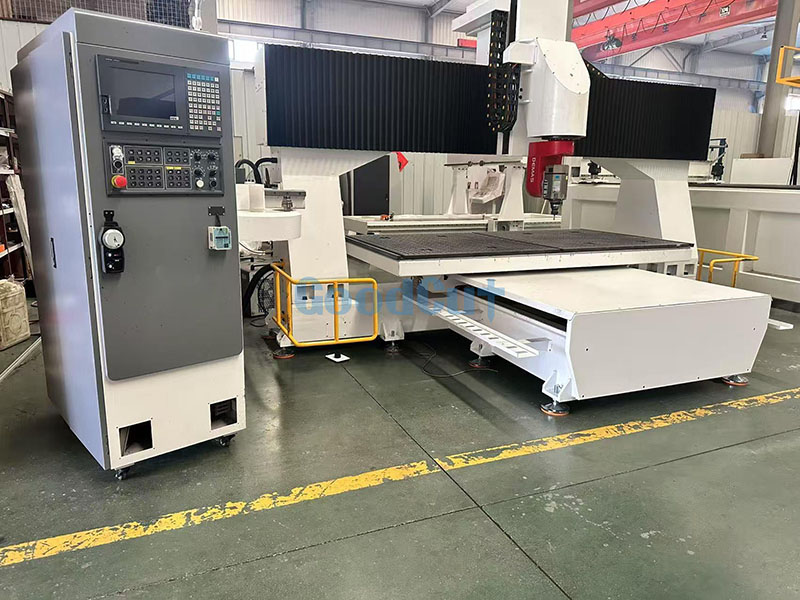

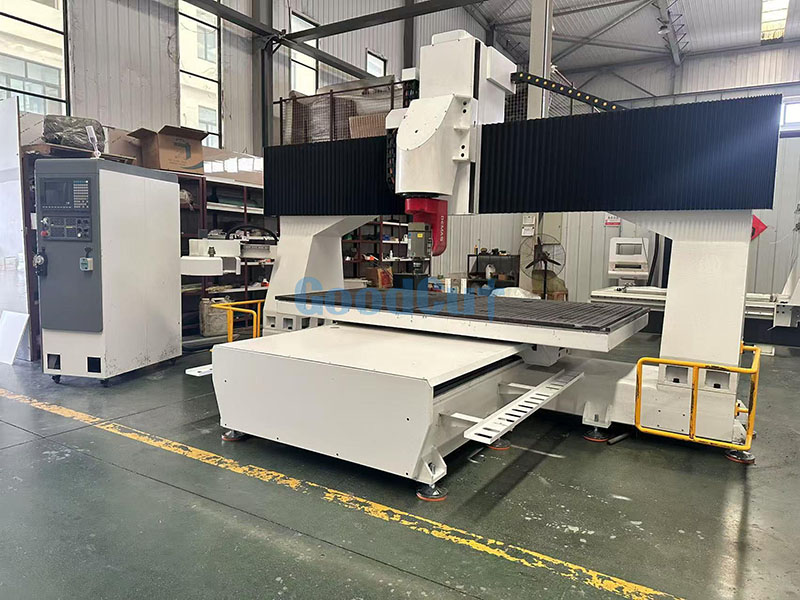

This is a 5 axis CNC router specially designed for engraving complex three-dimensional workpieces. This 5-axis CNC router has the characteristics of integrated casting, good rigidity, good stability, high processing accuracy, stable operation, convenient operation, and powerful functions.

Compared with other foam engraving Machine, this machine's working size is much larger. And The Z axis can be heightened according to your special requirements; and the whole working size also can be customized.

1. With heavy-duty gantry and structure, which can guarantee the machine to be strong, reliable and durable.

2. Equipped with air cooling spindle, it has the features of low noise and easy operation.

3. With imported high-precision ball screw and Taiwan Hiwin linear square rails, which move smoothly to ensure the machining precision.

4. Many configurations and service can be available according to your requirement.

Parameters:

Model	GC1325 - 5 AXIS 360 degree CNC router
Working size	13002500400mm 15003000400mm 20003000400mm 20003000400mm size can be customized
Structure	Heavy duty gantry and structure,12mm thickness steel
Control system	Taiwan SYNTEC control system support 5 axis and ATC function
Spindle	5 AXIS DEMAS HEAD 10KW HITECO SPINDLE
Spindle speed	0-18000rpm
Table Surface	T Slot Table
Driving system	Taiwan SYNTEC servo driver 1.5KW
Guide rail	Helical rack gear for X, Y axis, Taiwan TBl ball screw for Z travel, Double Taiwan HlWIN #35 Linear guide for Y axis one side,total 4pcs #35 linearguide for Y axis X,Z axis Taiwan HlWIN #35 linear guide
Dust collector	Dust hood for axis,dust collect hood and pipe for dust collector
Inverter	Chinese Best/Fuling/ Delta
Z axis transmission	Taiwan TBl ball screw with high precision
Collet	ER32/BT30/BT40
Rotary clamp	φ600X2500mm
Working Voltage	AC380 50HZ/60HZ 3 phase or AC220 50/60HZ single phase
Optional	Swing head with 180 degree Rotary device

Features:

1) Thickened steel structure designed as enhanced structure and annealed for destressing guarantees machine inflexibility in long term and then keep high precision & durability.

2) All steel structure will undertake sand blasting to clear the steel surface.

3) All steel structures machined by CNC machining center, body structure machined by large-scale CNC machining center, guarantees high base precision of machines.

4) Adopting advanced world famous brand components in driving parts, pneumatic parts ,electric parts and operation parts.

5) HIGH QUALITY, HIGH STABILATITY, SIMPLE OPERATION and GOOD SERVICE.

Machine details:

Japan Yaskawa servo motor and driver, powerful and high precision.

Control system: Taiwan Syntec controller

5 Axis head DEMAS

10kw HITECO spindle

Fuling inverter

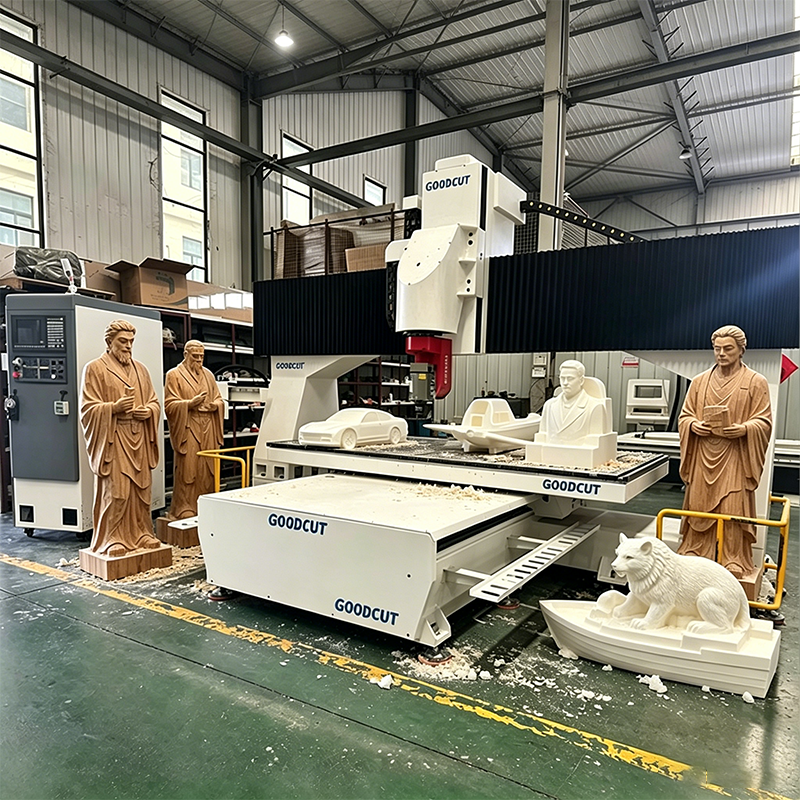

Samples:

The machine hes been widely used in these industry:

Die and mold industries:

The machine can engrave various large nonmetallic molds, especially for auto foam mold, wooden molds for ship,aviation and train. It is also suitable for precise manufacture of casting wooden mold, food mold (such as moon-cake mold) and other molds,etc.

Musical instrument industry:

The machine can also engrave large 3D curved surface instruments and contour cutting.
