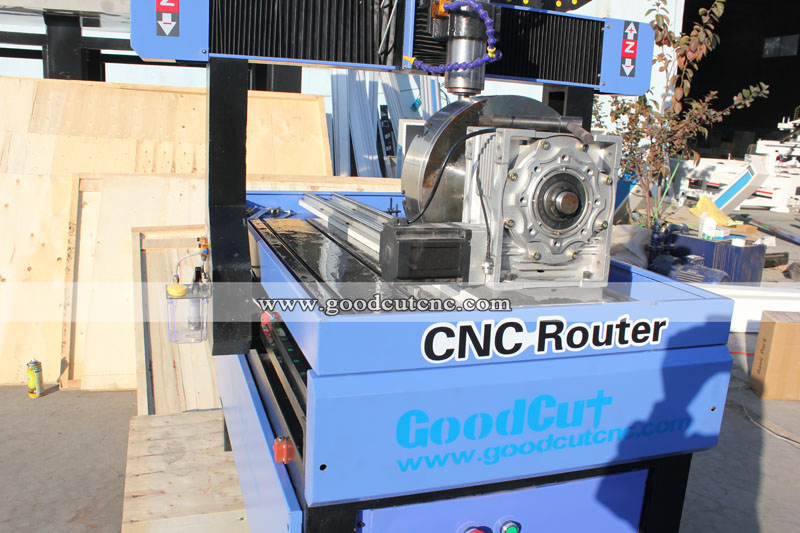

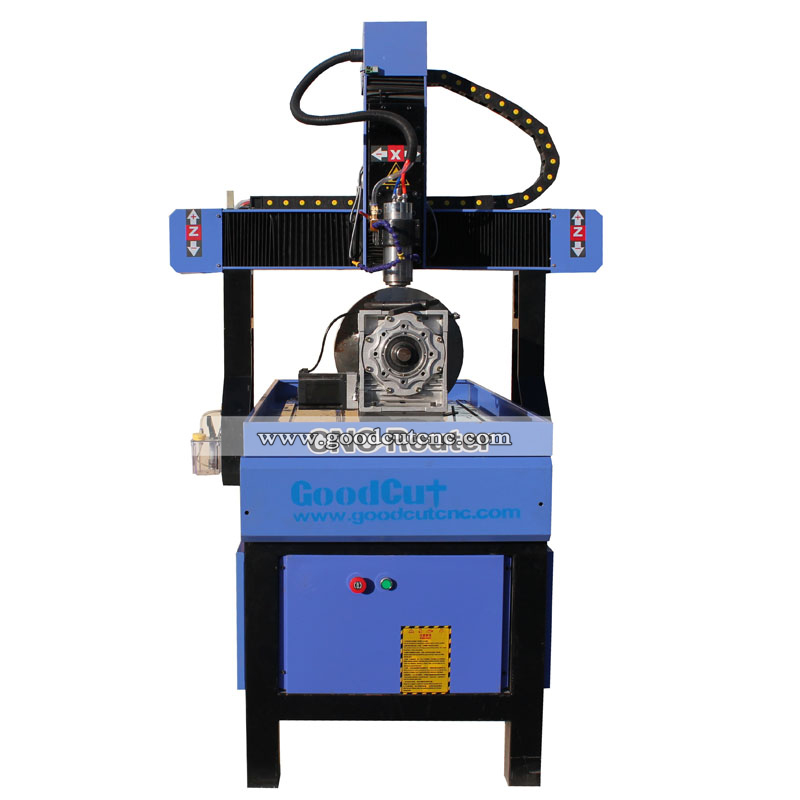

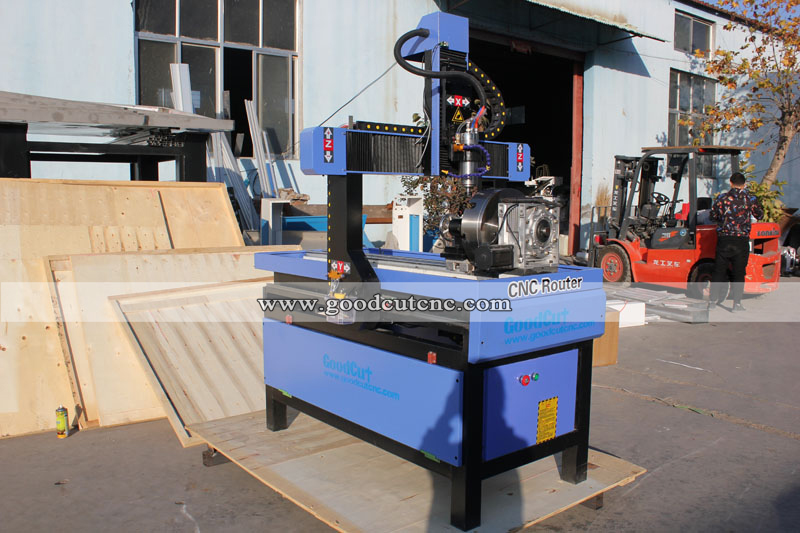

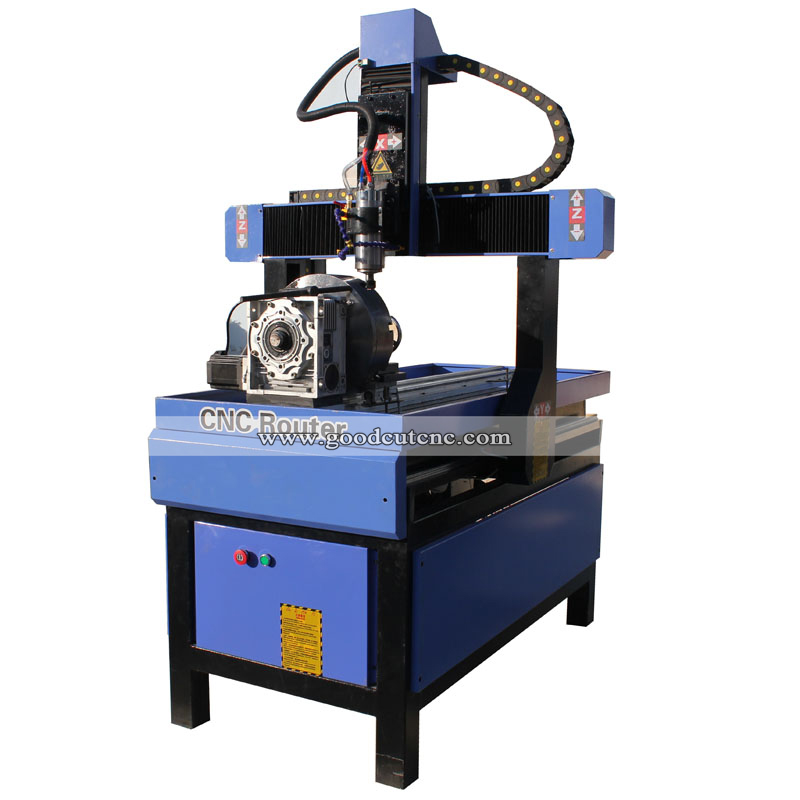

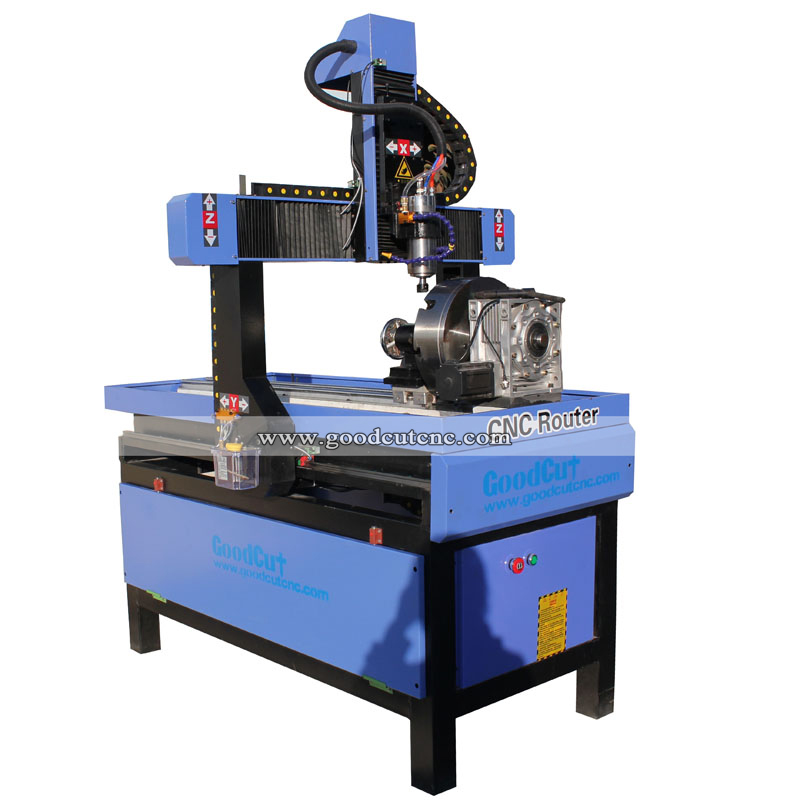

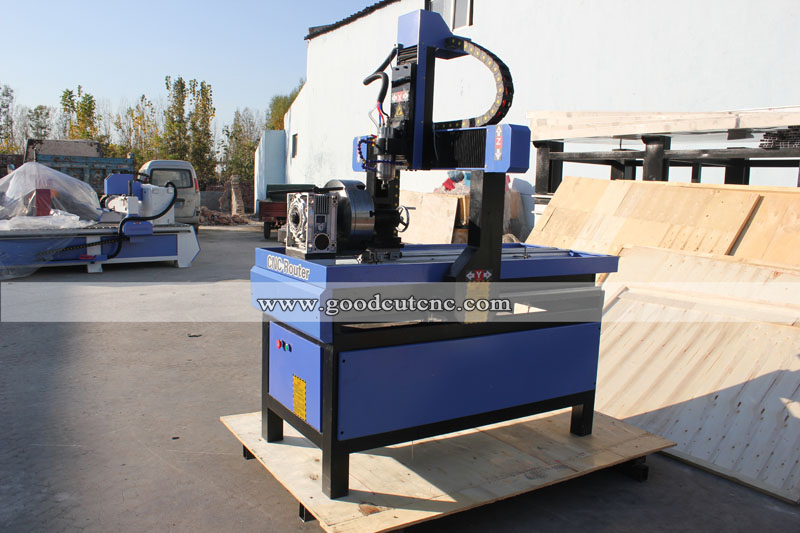

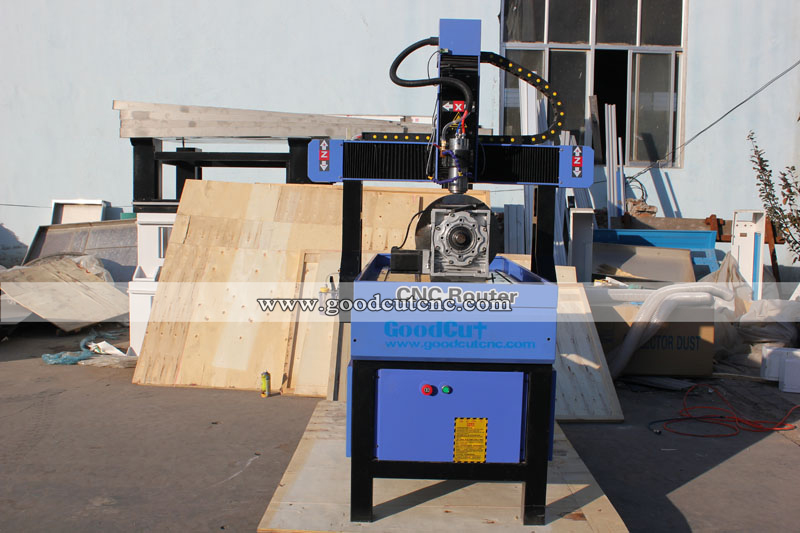

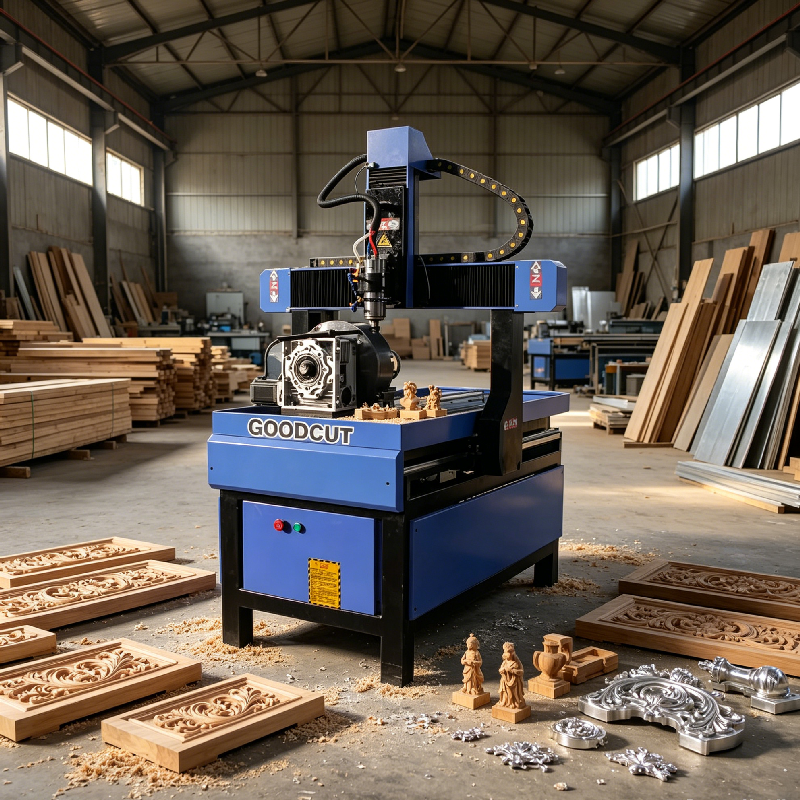

GC6012-TR 6090 6012 4 Axis Rotary CNC Router Engraving Machine with Water Tank for Soft Metal Wood

  • 4 axis rotary device
  • Water tank and cooling system for soft metal
  • 600*1200mm
  • Cast iron table
  • Product description: 600*1200mm working size, other for optional. Cast iron table. 4 axis rotary device
  • INQUIRY   EMAIL

GC-6012 6090 6012 4 Axis Rotary CNC Router Engraving Machine with Water Tank for Soft Metal Wood


Parameter:

Description

Parameters

Model

GC6090-TR

GC6012-TR

GC1212-TR

Working area

600x900mm

600×1200mm

1200×1200mm

Working precision

0.05mm/300mm

Feeding height

150/300 mm

Spindle power

HQD 1.5/2.2KW water cooling spindle

Spindle Speed

0-18000

Rail type

Taiwan linear guide rails

Control system

DSP /NC Studio controller

Drive type

Stepper

Inverter

Best/Fuling inverter

Transmit

Ball screw

Table type

Aluminum profile T slot clamping

Max travel speed

12000mm/min

Power

AC220V±10%/50~60Hz

Compatible Software

Type3/Artcam/UG/Pro-E/Mastercam/UcancamV8 etc

Command code

HPGL, G code

Feature:


1. The whole machine body is cast iron, which has strong bearing and makes the machine work stably

2. It adopts high precision rack gear transmission and linear guide which can eliminate the gap automatically

3. High-power water-cooled brushless frequency conversion spindle, which is durable and has a strong cutting power

4. Using high-speed driver, stepping motor, which improves work efficiency.

5. Unique dustproof, waterproof device, which effectively keep mechanical transmission part clean, rustless, and makes the maintenance more easily

6. As many as 10 breakpoint memory function, which greatly reduces the waste.

7. Strong compatibility, suitable for all kinds of numerical control software: Artcam type3, Pore,  Castmate, and various CAD/CAM software. It can easily make anaglyph, gravure and three-dimensional art words, etc

8. very thick aluminum table with PVC for protecting table machine

9. DSP control system: hand controller, operate the machine without connection to a computer.


Application:

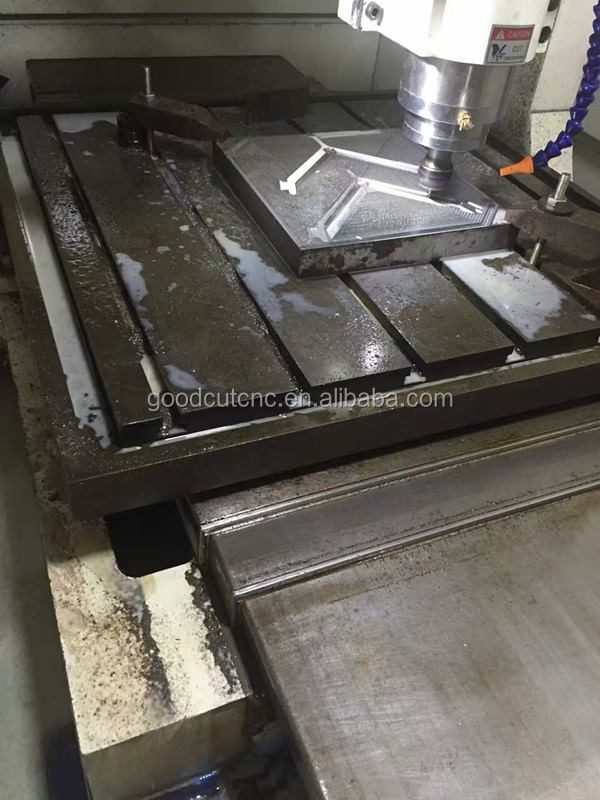

Advertising industry, seal industry, craft and gift, art mould, wood working, mould etc. applicable material including on acrylic, double-color board, PVC, ABS board, stone, imitation stone, metal,Aluminum Mold etc.

Woodwork industry: sewing machine table, machine cabinet panel, sporting equipment, wooden door etc.

Advertising industry: engrave and cut various signboards, marble, copper, character mold, font. And various metal sign, brand.

Craft & gift industry: engrave various word or graph on the souvenir and handicraft, ironwork engraving, dials.

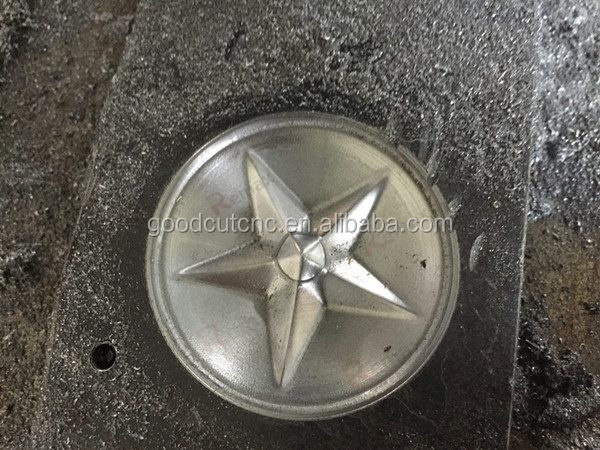

Mould industry: architecture, Gilt membrane, electric machinery, high frequency mold, moulding on shoes, badge, embossed mould, biscuit, candy, chocolate mould.

Stamp industry: it is easy and convenient to seal on various materials such as ox horn, plastic, organic board, wood etc.
