Wood Lathe machine

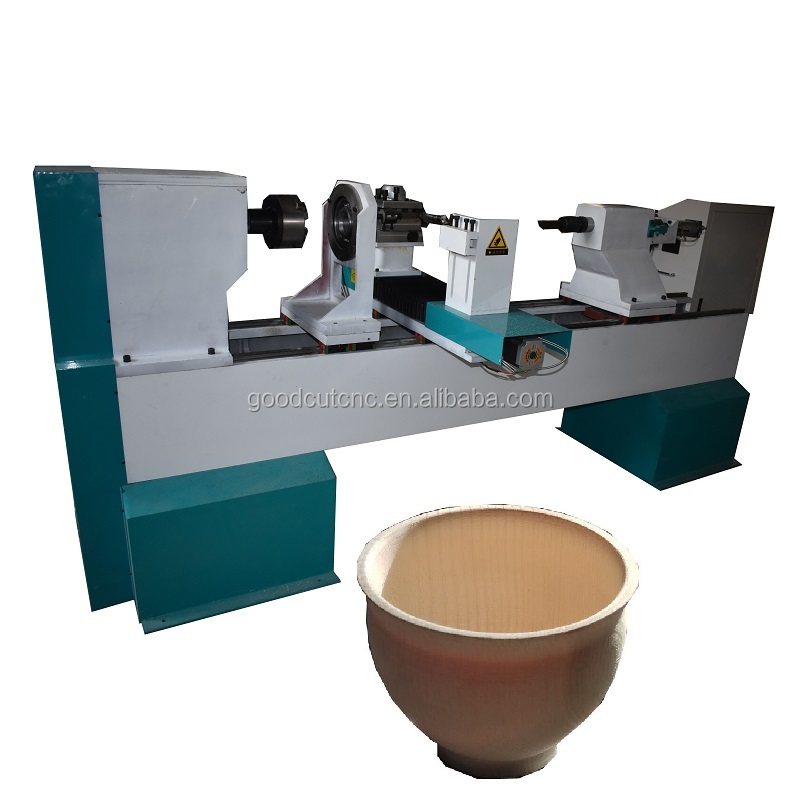

  • GC1530WL-ATC Wood Turning Lathe Machine with 4pcs Automatic Tools for Making Bowls and Russia Nesting Dolls
  • GC1530WL-ATC Wood Turning Lathe Machine with 4pcs Automatic Tools for Making Bowls and Russia Nesting Dolls
  • GC1530WL-ATC Wood Turning Lathe Machine with 4pcs Automatic Tools for Making Bowls and Russia Nesting Dolls
  • GC1530WL-ATC Wood Turning Lathe Machine with 4pcs Automatic Tools for Making Bowls and Russia Nesting Dolls
  • GC1530WL-ATC Wood Turning Lathe Machine with 4pcs Automatic Tools for Making Bowls and Russia Nesting Dolls
GC1530WL-ATC Wood Turning Lathe Machine with 4pcs Automatic Tools for Making Bowls and Russia Nesting DollsGC1530WL-ATC Wood Turning Lathe Machine with 4pcs Automatic Tools for Making Bowls and Russia Nesting DollsGC1530WL-ATC Wood Turning Lathe Machine with 4pcs Automatic Tools for Making Bowls and Russia Nesting DollsGC1530WL-ATC Wood Turning Lathe Machine with 4pcs Automatic Tools for Making Bowls and Russia Nesting DollsGC1530WL-ATC Wood Turning Lathe Machine with 4pcs Automatic Tools for Making Bowls and Russia Nesting Dolls

GC1530WL-ATC Wood Turning Lathe Machine with 4pcs Automatic Tools for Making Bowls and Russia Nesting Dolls

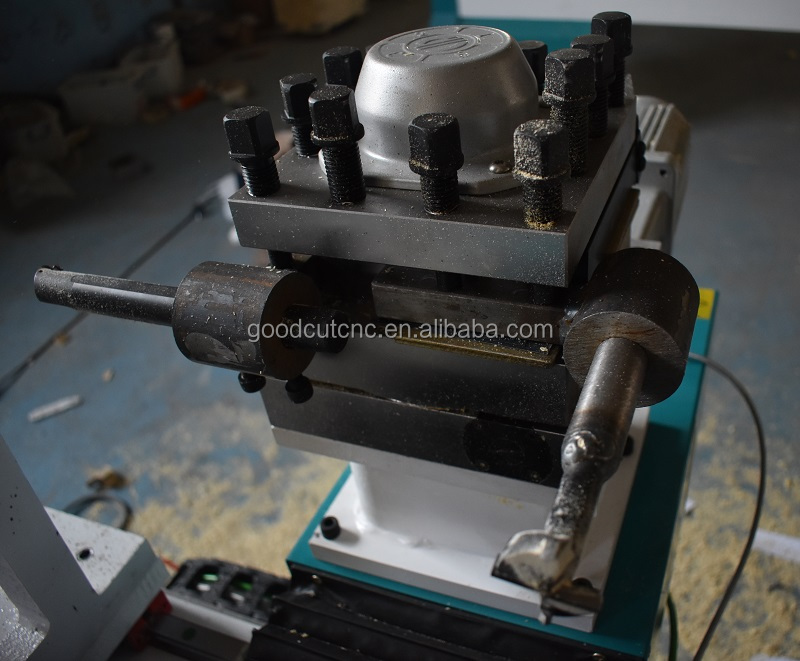

  • Automatic tool change
  • 4pcs tools

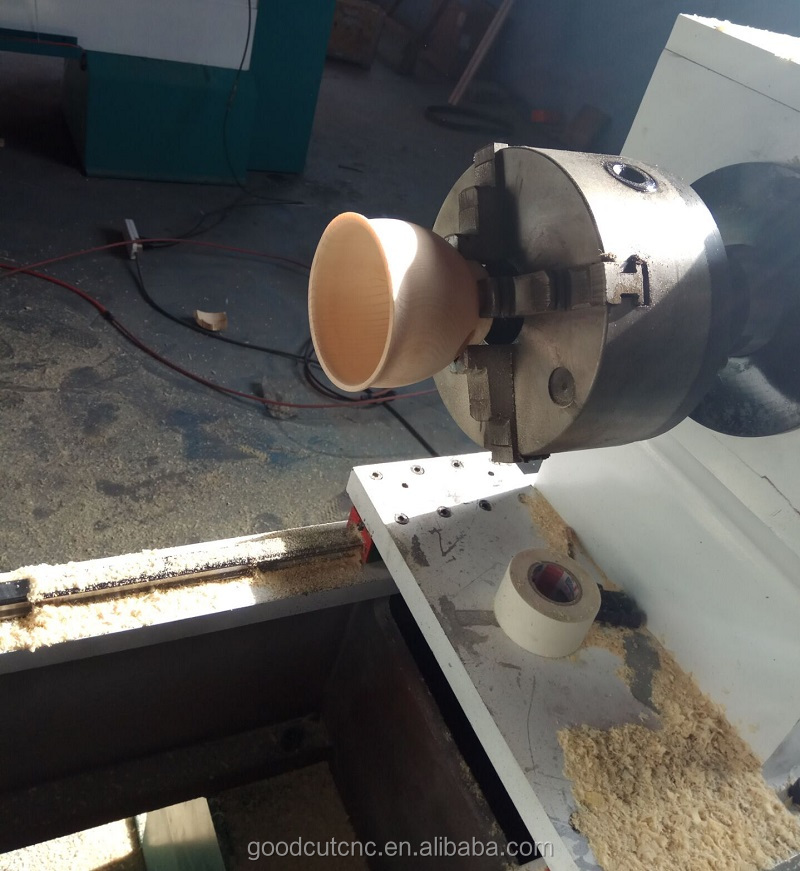

  • For making bowls
  • GC1530WL-ATC
  • Product description: GC1530WL-ATC wood lathe machine With 4pcs tools for making bowls Automatic tool changer
  • INQUIRY   EMAIL

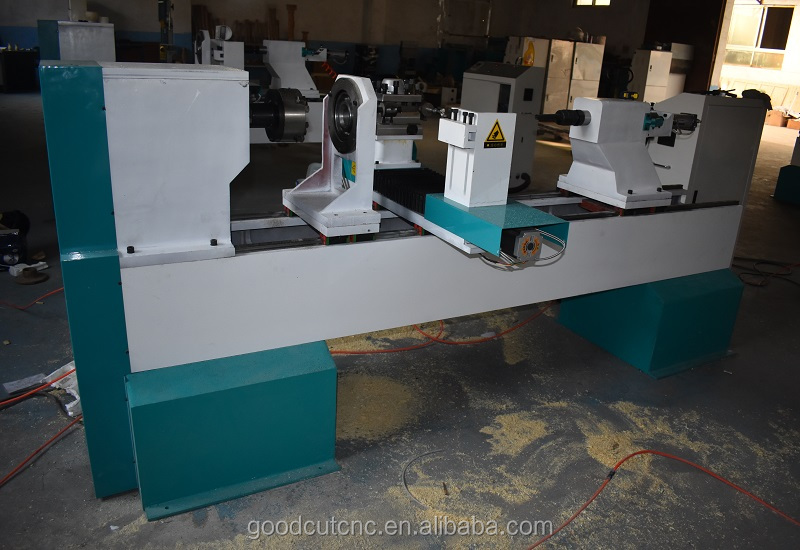

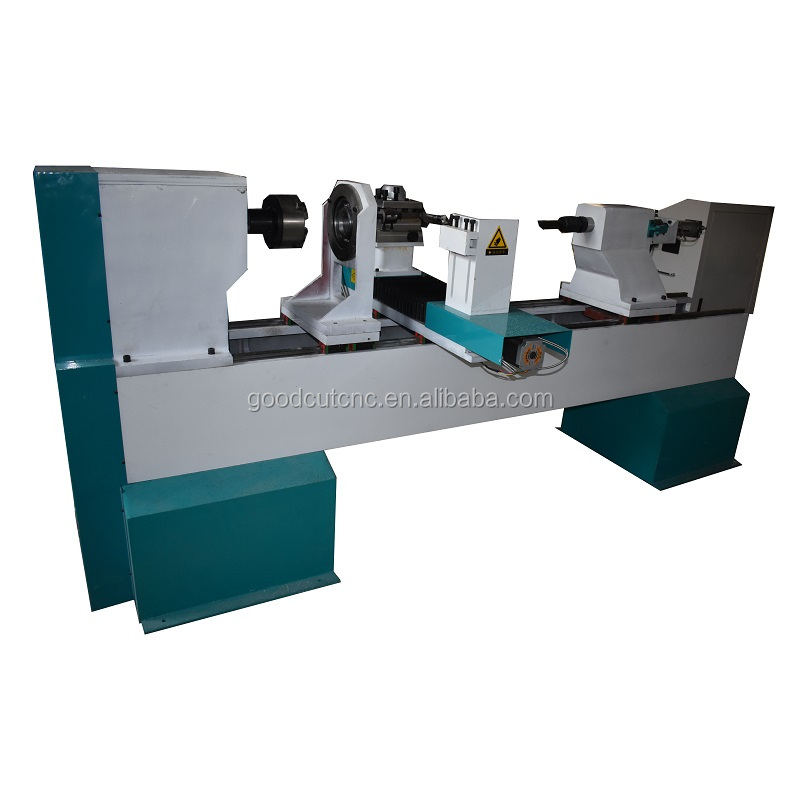

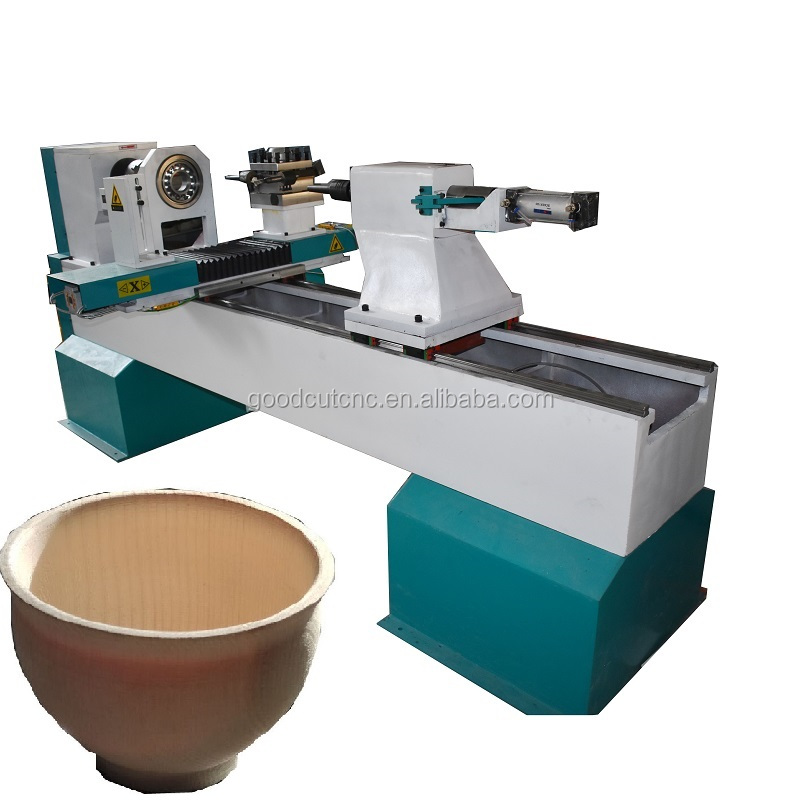

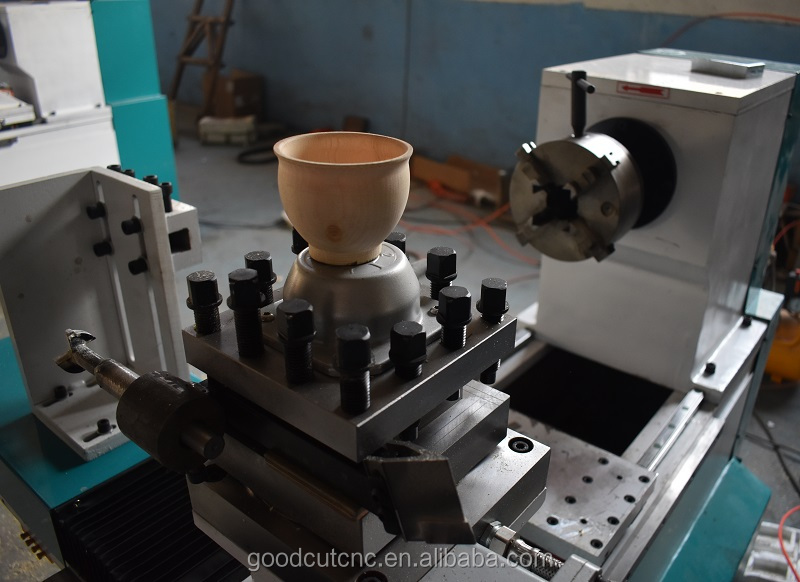

GC1530WL-ATC Wood Turning Lathe Machine with 4pcs Automatic Tools for Making Bowls and Russia Nesting Dolls

Model GC1530WL-ATC
Max processing length 1500mm
Max turning diameter 300mm
Air pressure 0.6-0.8Mpa
Powersupply AC 380V 3 phase 50HZ/60HZ (can custom 220V)
Max feed rate 2000mm/min
min setting unit 0.01cm
Transimission type ballscrew for X Z axis,gear for Y axis
Guider Taiwan Hiwin orbit
Main shaft rotating speed 0-3000r/min
Motor power 4kw
Cutter material Super hard alloy
Control System DSP control system
Motor Stepper motor
Driver Yako driver
Inverter Best inverter
Drawing Software AutoCAD
Interface Internet cable
Hand controller recognise file *.dxf



Main Features:

1. The wood lathe adopts advanced DSP system with USB connection, operated with handle, convenient operation.

2. The whole lathe machine is welded with seamless steel structure, which is high temperature annealing and vibrating stress relief, so the lathe machine body is stabilized and will not be deformed forever.
3. The ATC CNC wood lathe adopts domestic top brand stepper motor to ensure high precision.
4. Operating system has friendly easy operation interface, english suggestion and simple setting method.
5. Spindle System is divided into single axial and biaxial.
6. Transmission system adopts Hiwin square rail and ball screw to control the linear error effectively .
7. One-time tool setting to finish the whole workpiece.
8. Compatible with several CAD/CAM design software such as Type3, Artcam, etc.
9. The ATC wood lathe can completely work offline and do not take any computer resources.
10. 4th axis for 3D carving and cutting.

11. Automatic tool changer system.




Application:

Wooden vase, wooden bowl, wooden handles; baseball bats; staircases,stairway balusters, stairway newel posts; dining table legs; end table legs; sofa table legs; bar stool legs; chair legs; chair arm posts; chair stretchers; sofa and bun feet; bed rails; lamp posts and so on.
