Handheld Wireless EinScan Rigil 3D Scanner with Hybrid Light Source

Full-Wireless Workflow
EinScan Rigil
Marker-Free Laser Scanning
Hybrid Light Source
Product description: Triple Work Modes: Standalone & Wireless PC & Wired PC
INQUIRY EMAIL

Rapid, Refined, Reliable

Triple Work Modes

Hybrid Light Sources

Marker-Free Laser Scanning

Full-Wireless Workflow

Powerful Hardware

Dynamic Laser Switching

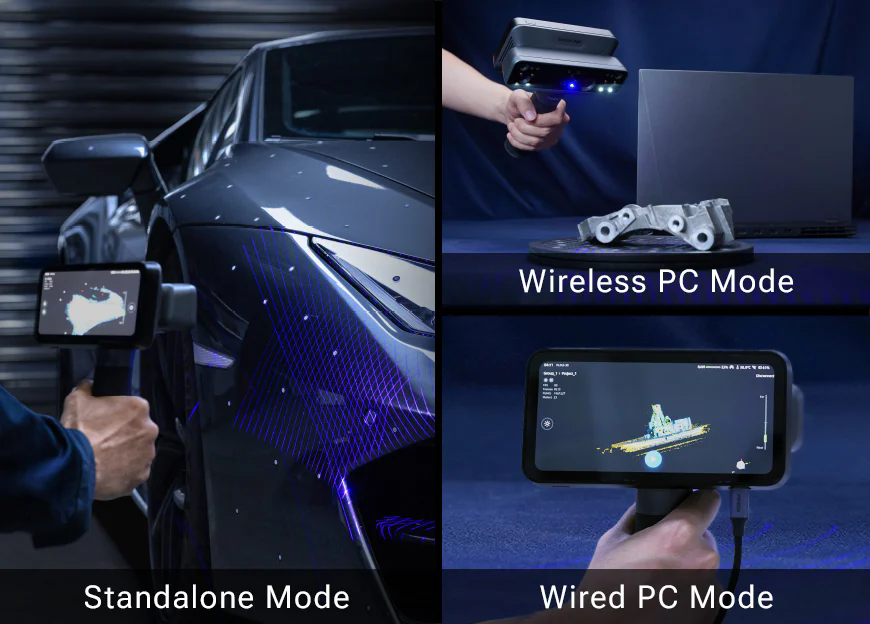

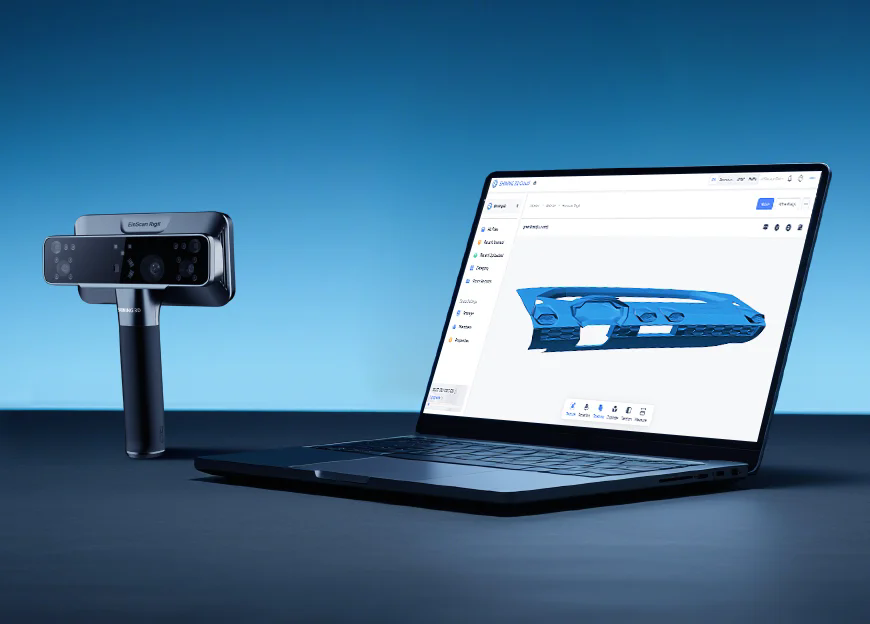

Triple Work Modes The EinScan Rigil offers three operation modes to unlock max performance and flexibility Standalone Mode: No PC connection required, all scanning and processing tasks are completed directly on the hardware. Wireless PC Mode: Leveraging built-in Wi-Fi 6, enables seamless wireless scanning and allows connection to a powerful computer, optimizing performance for complex tasks and large data volumes. Wired PC Mode: Maintaining availability, maximum scanning speed, and data volume in complex network environments.

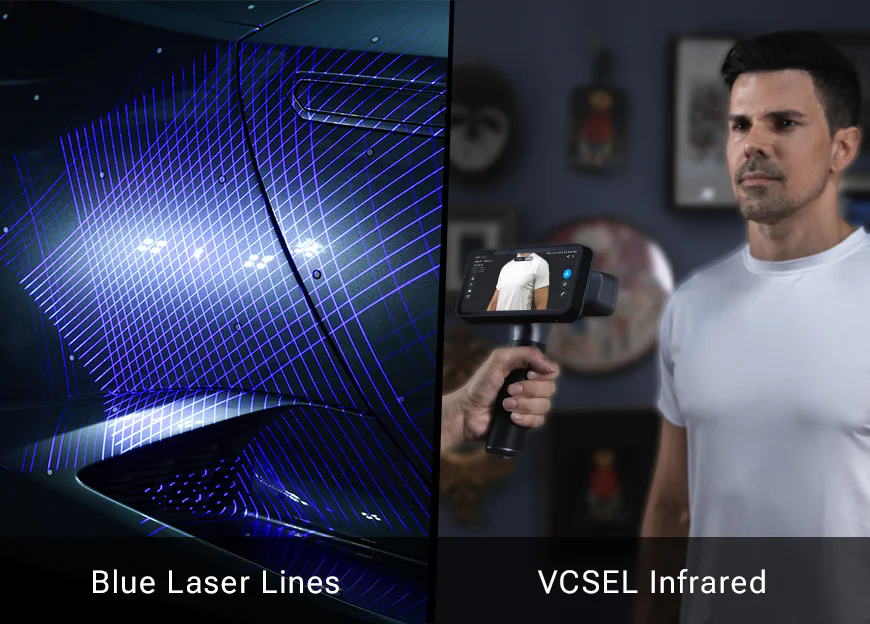

	Hybrid Light Source 2 separate groups of cameras are speciﬁcally designed to capture diﬀerent light sources respectively. Blue laser lines VCSEL infrared

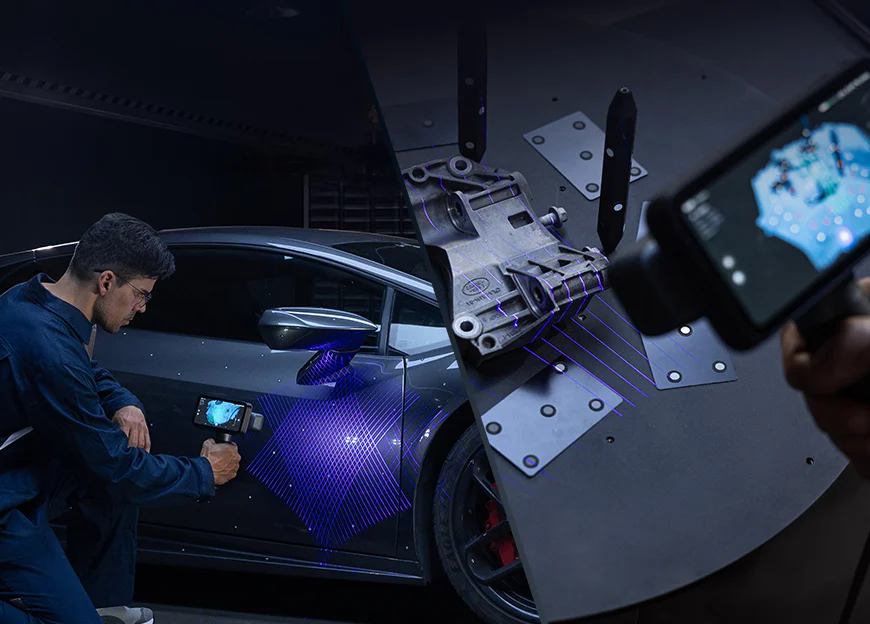

Laser HD Mode Provides high-quality models with 0.04 + 0.06 mm/m volumetric accuracy and high geometric resolution up to 0.05mm. 19 + 19 crossed laser lines: for high speed scanning, delivers top-tier efficiency and flexibility. 7 parallel laser lines: for fine details, provides consistent results.
	Dynamic Laser Switching Two laser scan modes can be switched during the scanning process, and the data can be merged to achieve speed and detail in one scanning project.
IR Rapid Mode VCSEL Infrared-powered scanning solution for high eﬃciency and wide coverage of medium to large objects. Volumetric accuracy up to 0.1 + 0.3 mm/m Working distance 160 ~ 1500 mm Scanning speed up to 1,600,000 points/s
	Marker-Free Laser Scanning EinScan Rigil has a special feature tracking algorithm, provides a marker-free blue laser scanning through Laser + IR hybrid scan mode, enabling better eﬃcient than traditional marker-based laser scan and better data quality than marker-free IR scan.

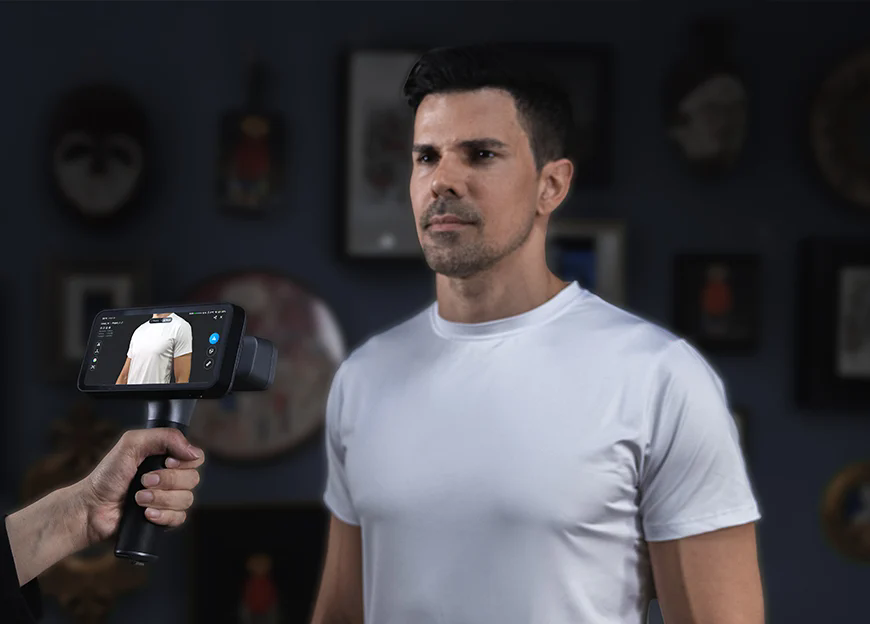

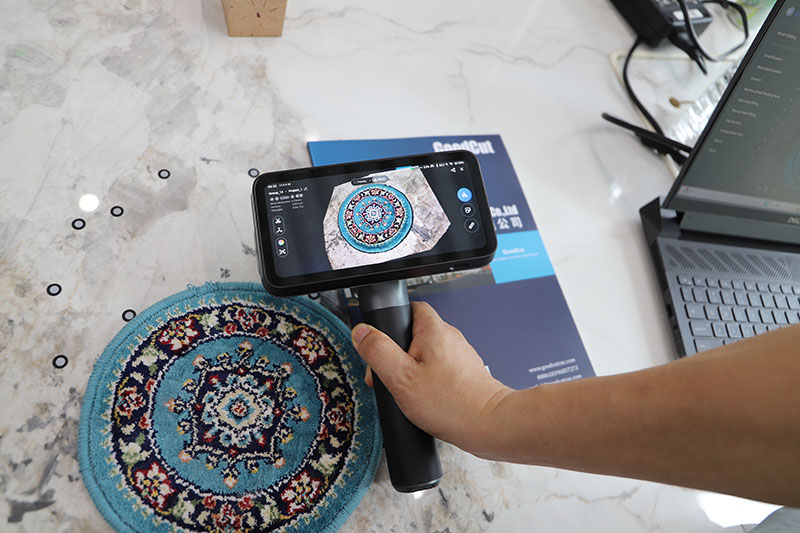

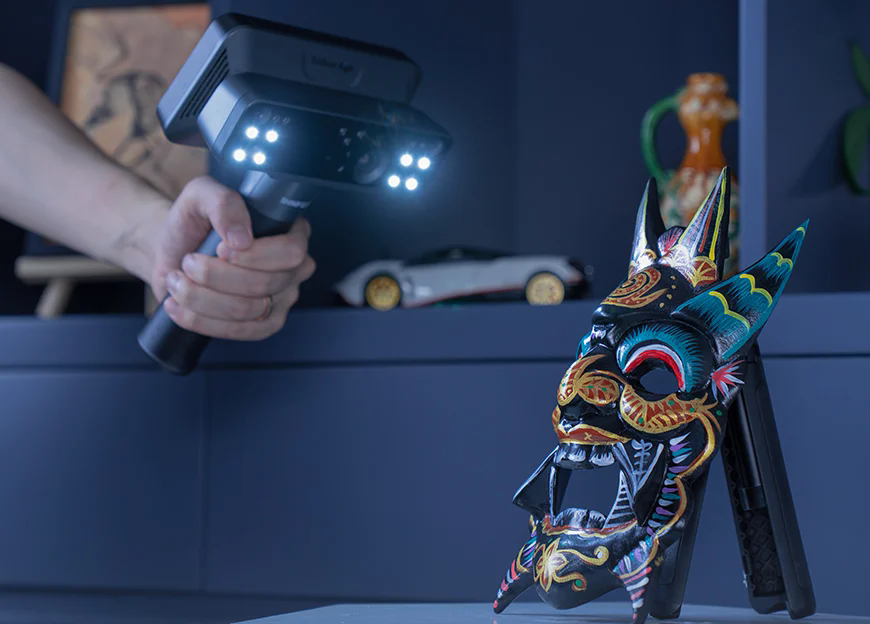

Full Color Texture Scanning Equipped with a 5MP high-deﬁnition camera that can restore high-quality texture details, allowing designers, engineers, and artists to maintain a high fidelity of the model during the digitization process, providing more precise information for subsequent analysis and creation.

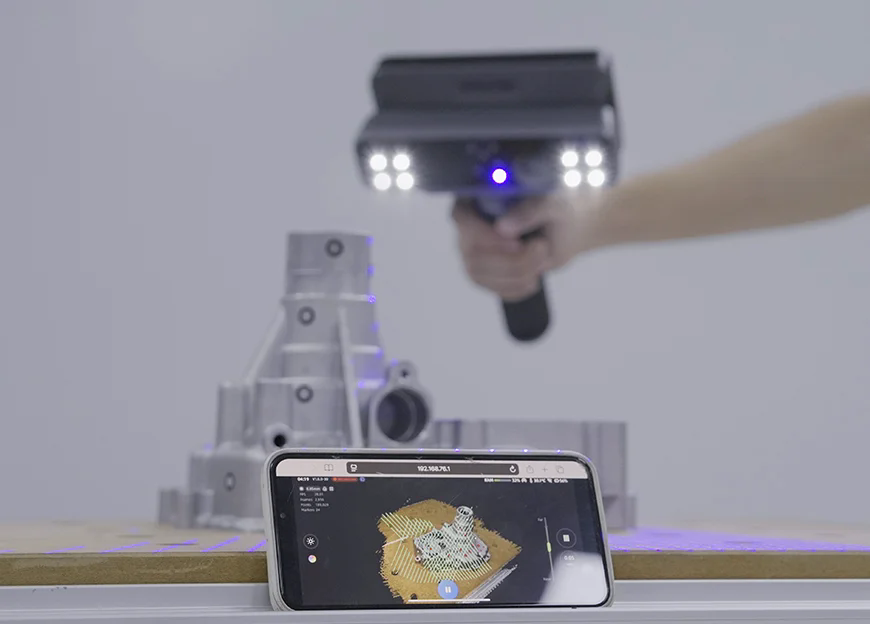

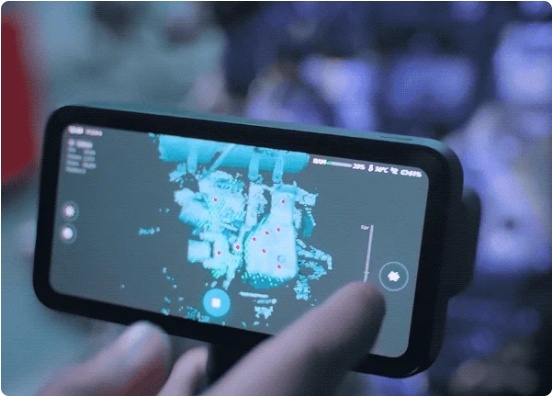

	Wireless Workflow Wireless scanning: Without connecting to PC Wireless transfer: Data sharing to SHINING 3D Cloud Wireless screen casting: Display on a second screen

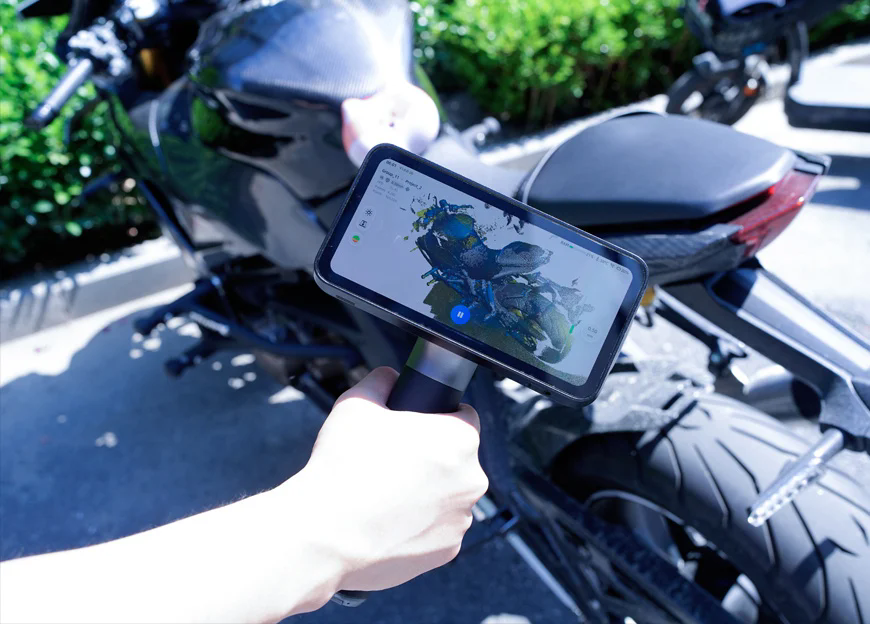

Reliable Scanning from Workshop to Outdoors Working eﬃciently in sunlight outdoors. Adaptable for dark and reflective metal surfaces without spray.
	Powerful Hardware 6.4'' 2K AMOLED 32GB DDR5 RAM 32GB eMMC + 1TB SSD ROM 6000mAh × 2 Replaceable Batteries
Scanner 3D Cloud Data sharing and collaboration Data storage and management Data measurement Free 5GB space to each SHINING 3D user

EinScan Rigil APP

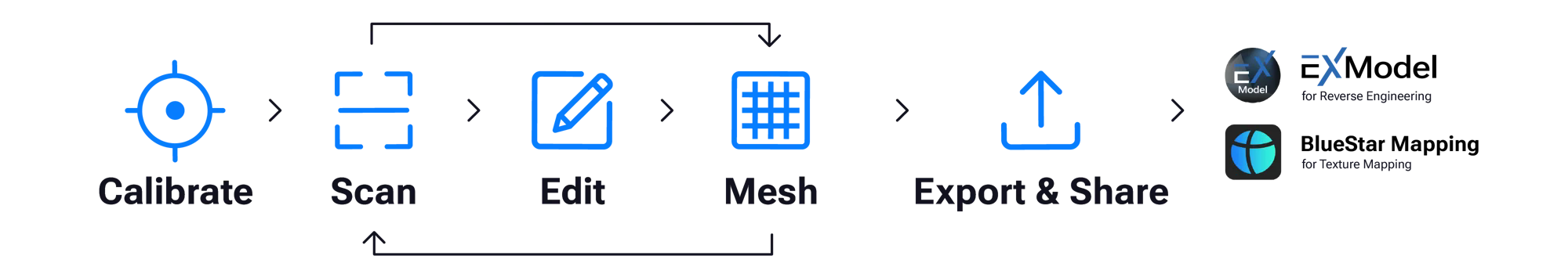

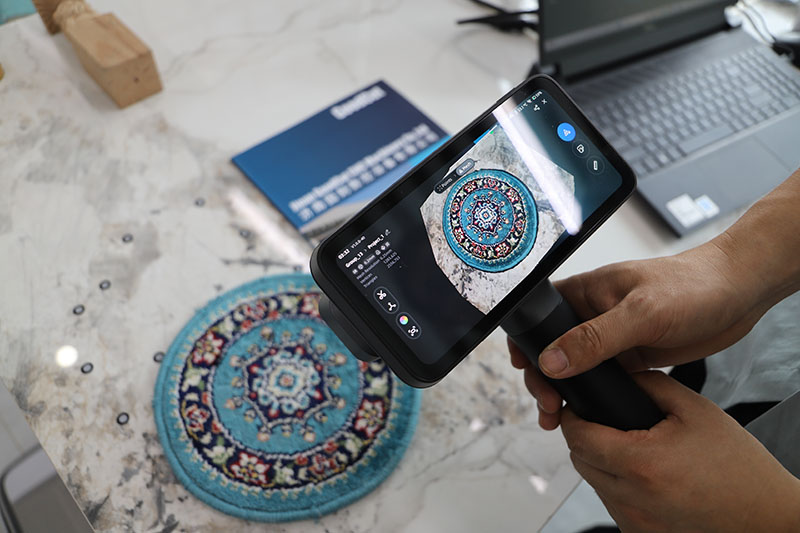

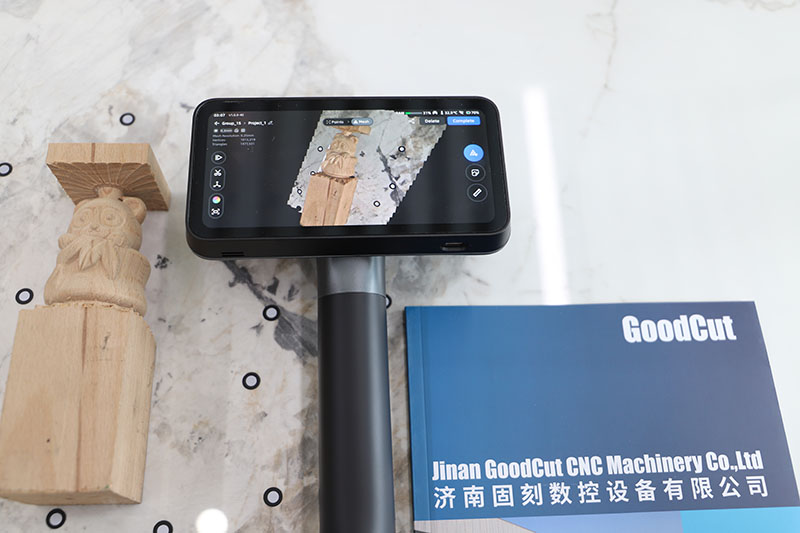

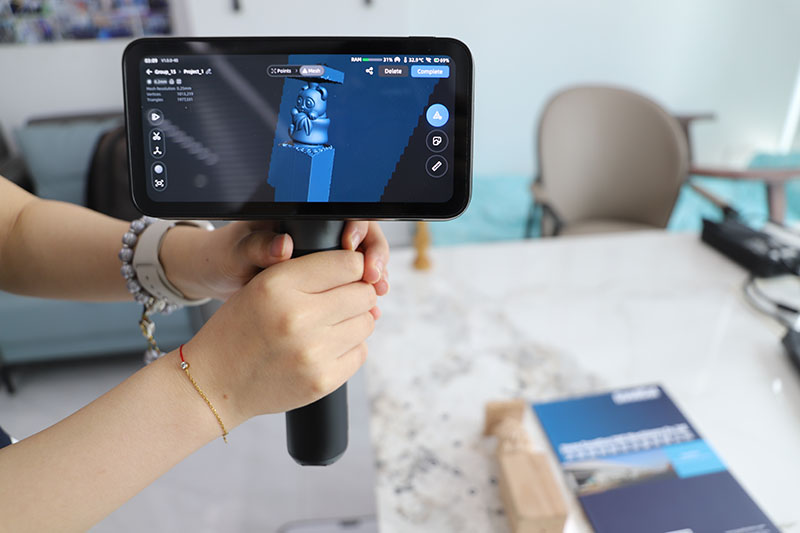

EinScan Rigil App supports full scanning workﬂows on the device from calibration, scanning, data modiﬁcation, closed surface generation, model editing, to export and sharing.
