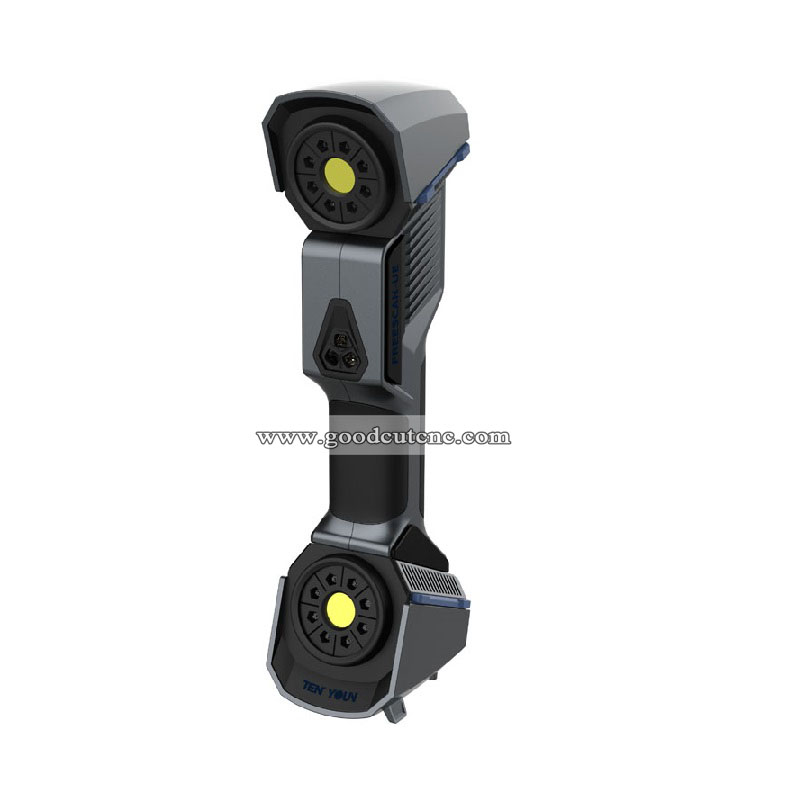

GoodCut Freescan UE7 UE11 3D Laser Scanner with High Precision


As the blue laser handheld 3D scanner of the FreeScan series, FreeScan UE inherits the iconic features of "high accuracy" and "high precision". At the same time ergonomic and lightweight equipment design, make it easier to hold and operate, providing metrology-grade, high-accuracy inspection solutions for the automotive, transportation, aerospace industry, moulding inspection, energy generation, machinery manufacturing and etc.



Parameter:


Product Model

FreeScan UE7

FreeScan UE11

Scan Mode

Multiple Lines Scan, Single Line Scan

Scan Accuracy

Up to 0.02mm

Volumetric Accuracy

0.02 mm+0.04 mm/m

Volumetric Accuracy

with DigiMetric*

0.02 mm + 0.025 mm/m

Scan Speed

650,000 points/s

1,020,000 points/s

Working Distance

500m

Scan Depth

(Depth of Field)

300mm-700mm

Max. Scan Range

510mm x 520mm

Point Distance

0.05mm-3mm

Light Source

14 lines+1 line blue laser

22 lines +1 line blue laser

Laser Class

Class 2M (eye safe)

Connection Standard

USB 3.0

Dimensions

298mm x 90mm x 74.5mm

Weight

670g

Powering

DC: 12V, 5.0A

Operating Temperature Range

0 °C-40 °C

Operating Humidity Range

10%-90%

Certifications

CE, FCC, ROHS, WEEE

Inspection Module

Compatible with multiple inspection software solutions such as EINSEN SE Q, Geomagic Control X/Control X Essentials, Polyworks, Catia etc.

Output Formats

OBJ ; STL ; ASC ; PLY ; P3 ; 3MF

Data Compatibility Software

3D System (Geomagic Solutions), InnovMetric Software (PolyWorks), Dassault Systemes (CATIA V5 & SolidWorks),PTC (Pro/E NGINEER), Siemens (NX & Solid Edge), Autodesk (Inventor, Alias, 3ds Max, Maya, Softimage) etc.

Recommended Computer Configuration

OS: Win10, 64 bit; Graphics Card: NVIDIA GTX/RTX seriescards, high er or equal to GTX 1080; GPU Memory: ≥4G; Processor: I7-8700; Memory: ≥32GB

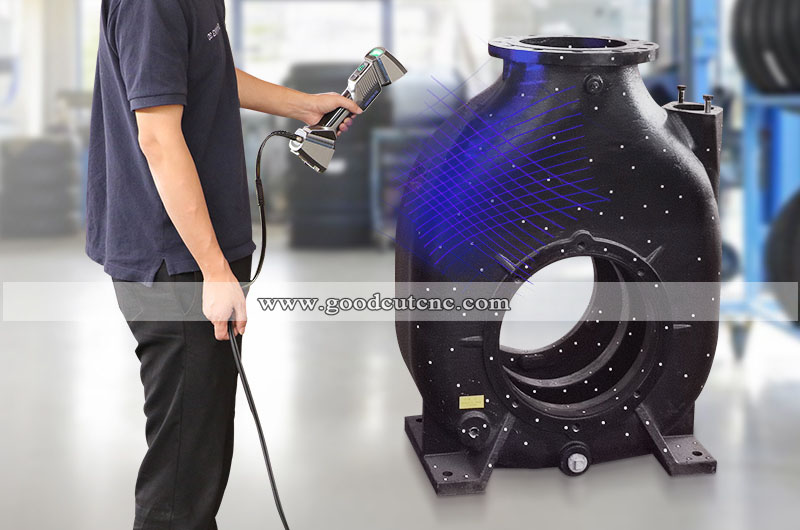

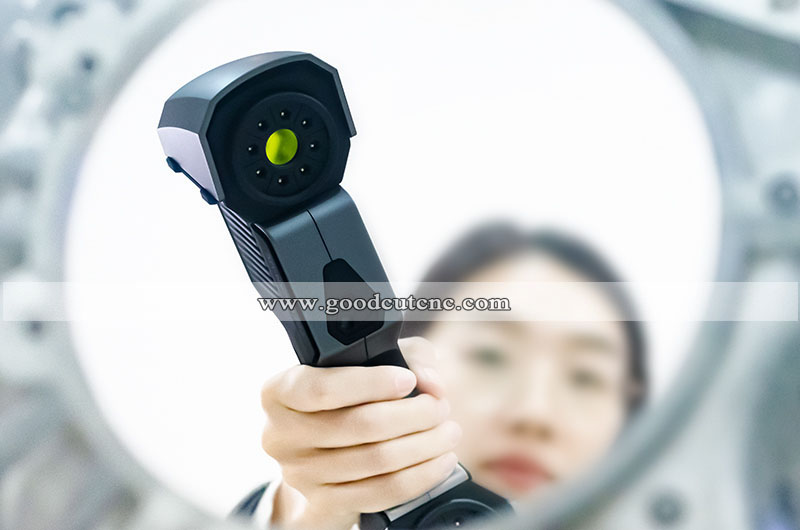

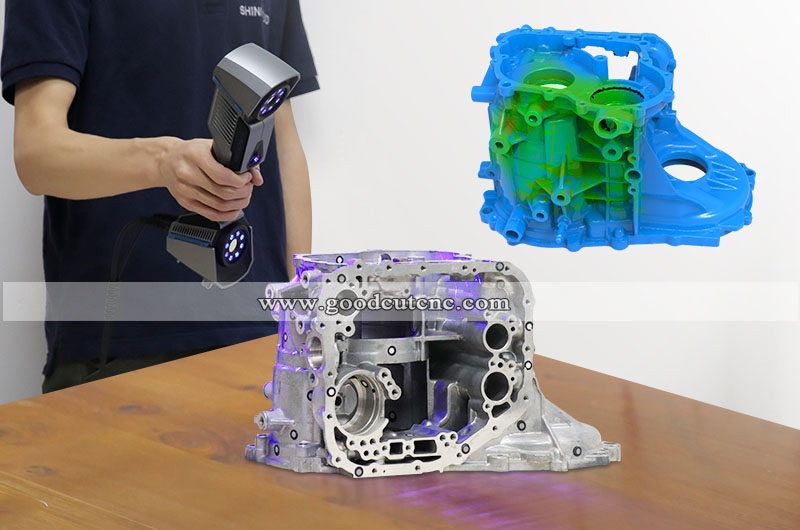

Portable and lightweighted

The device weights only 750g, facilitating handheld scanning more easily and avoiding fatigue due to long working time.

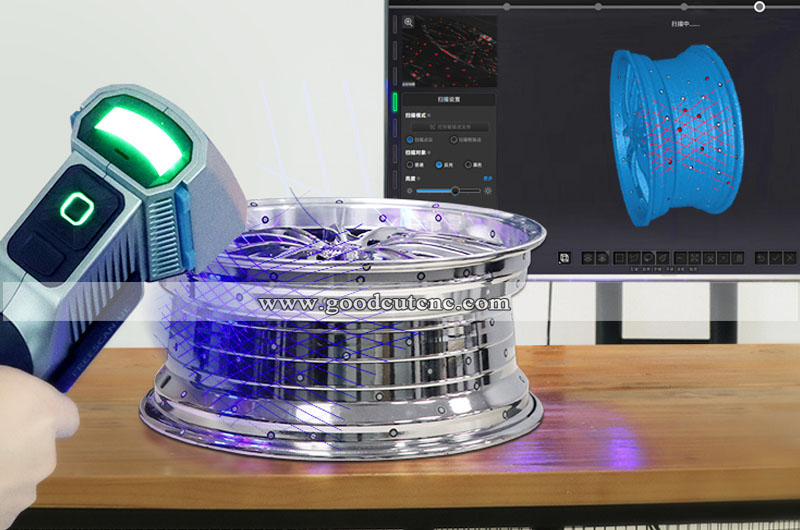

Wide range of material adaptations

Supporting the scan of black and reflective surfaces to accommodate a wider range of scanning applications.


High efficiency

The scan area can reach 510*520mm, providing larger field of view for a smoother and more efficient scanning experience.


Easy operation

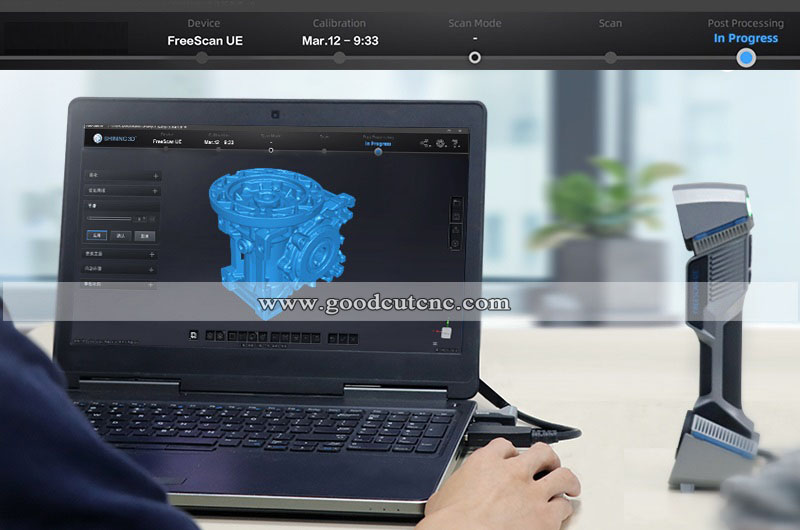

User-friendly operating system with simple software setup and guidance through the whole workflow process, allowing users to master the operation at ease.

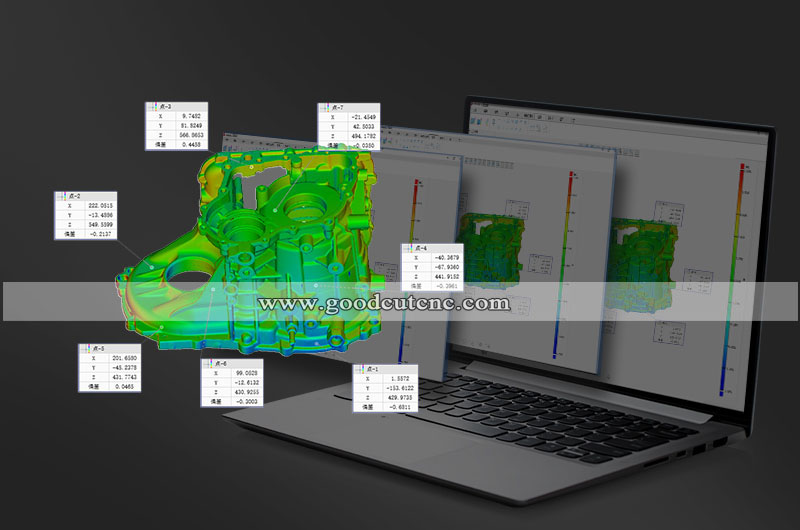

Seamless docking to inspection software

The scan data can be imported into inspection softwares like Geomagic Control X, Verisurf Inspect with one click, increasing the inspection efficiency.
