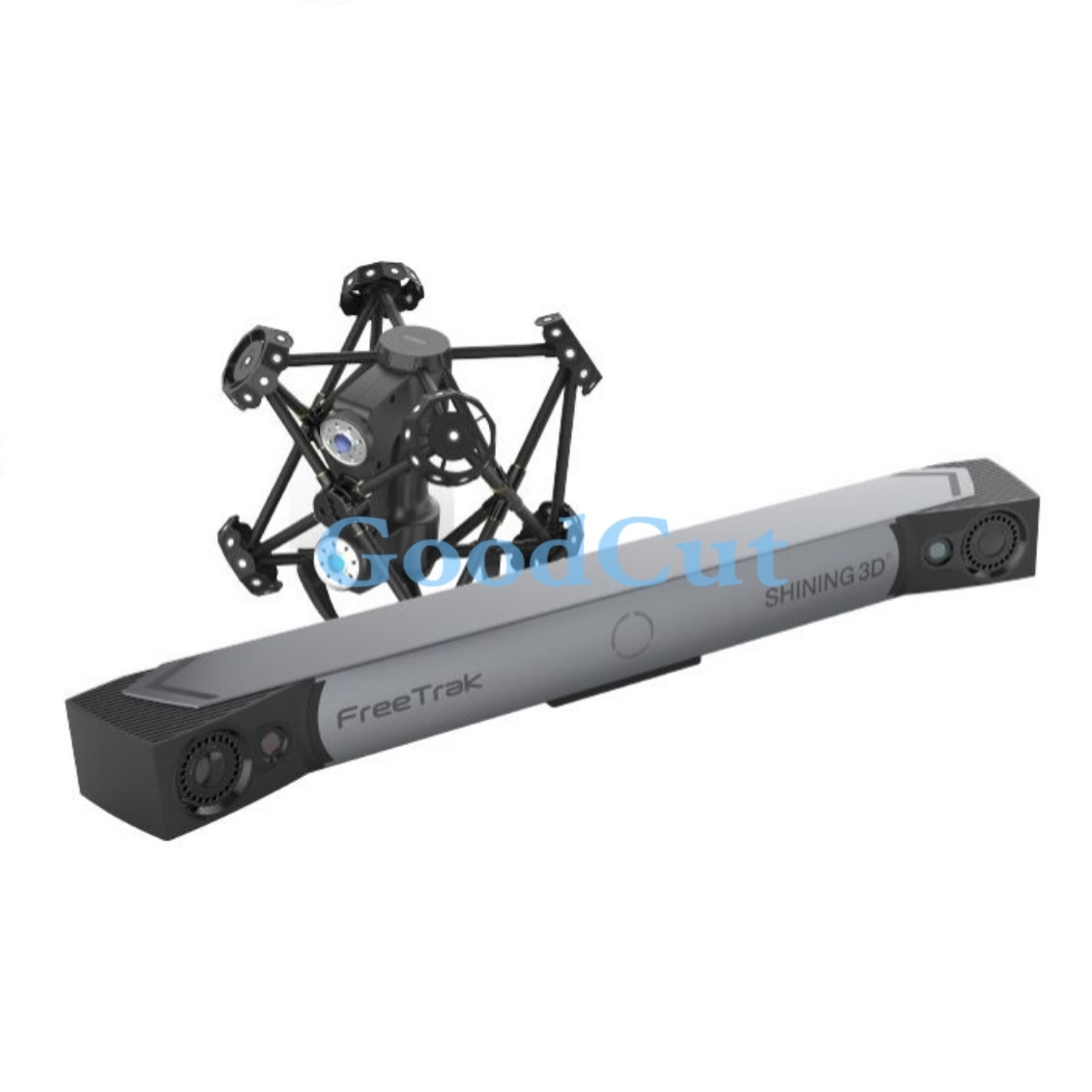

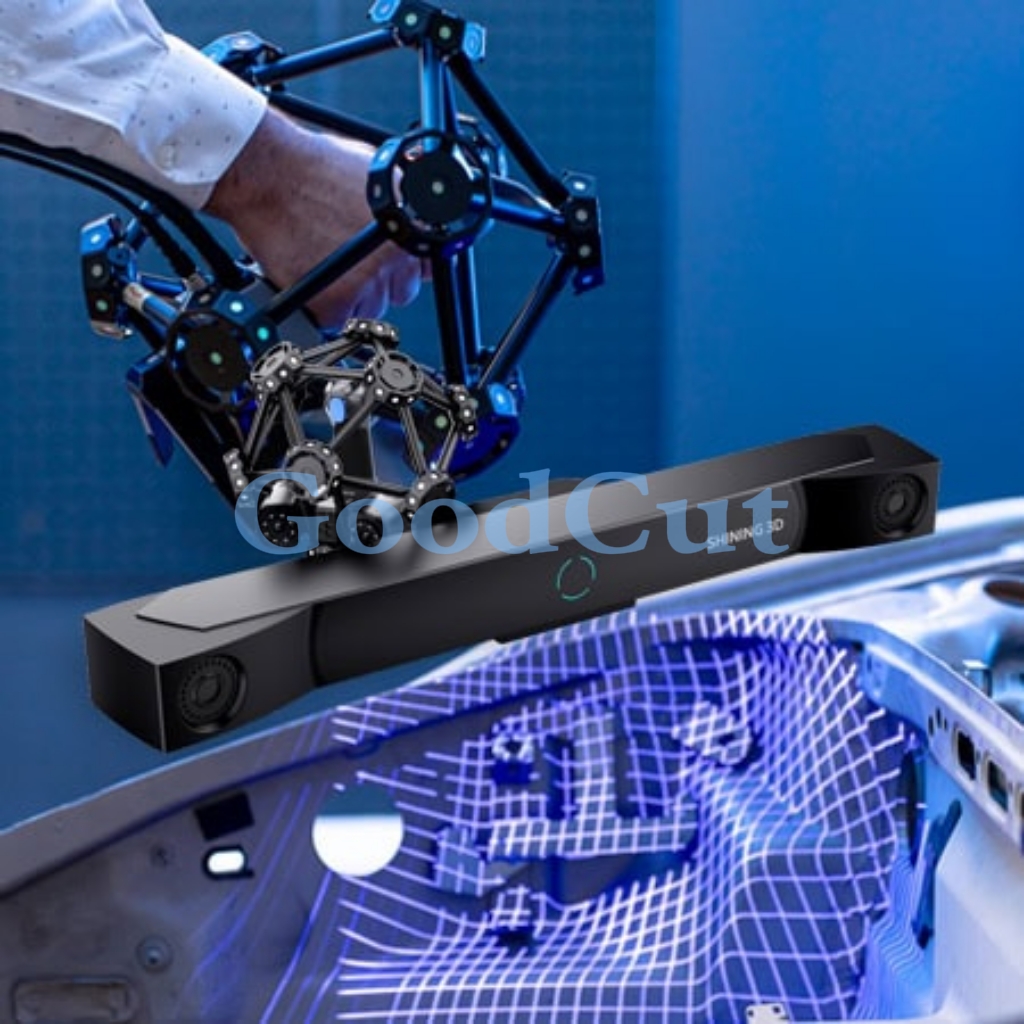

GoodCut FreeScan Trak W Wireless 3D Laser Scanner

GoodCut FreeScan Trak W Wireless 3D Laser Scanner

Scan Accuracy Up to 0.023mm
Scan Speed 5,500,000 points/s
Wireless Scanning
No Markers Needed
Product description:
INQUIRY EMAIL

FreeScan Trak ProW

Wireless 3D Dynamic Tracking & Scanning System with Expanded Range

Marker-Free & Wireless Scanning
Max. 8.6 m Tracking Distance & 206.7 m³ Tracking Volume
Integrated Video Photogrammetry (VPG)
Compatible with FreeProbe (Optional)

Track Smarter, Expand Further

FreeScan Trak ProW features an extended tracking range and an impressive expanded scanning volume, making it an ideal solution for large-scale 3D measuring tasks. With wireless operation, power bank supported, it offers unparalleled freedom and flexibility.

No Markers Needed

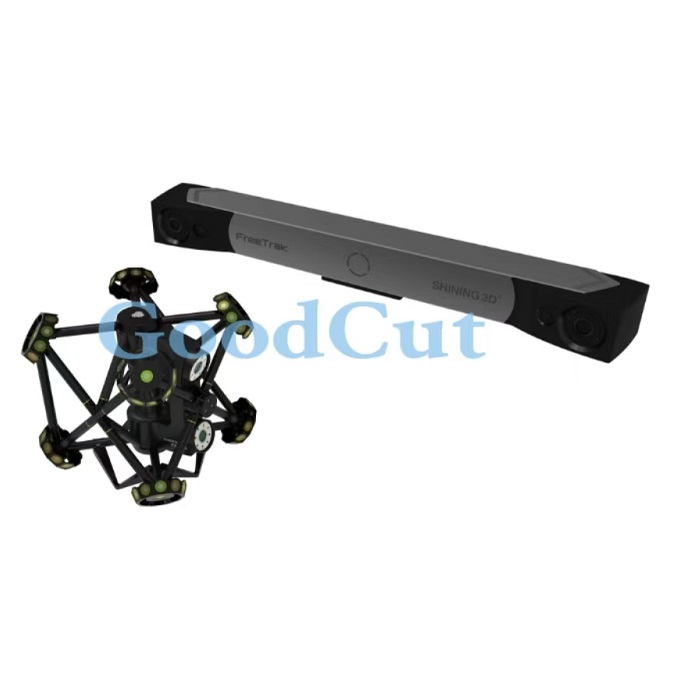

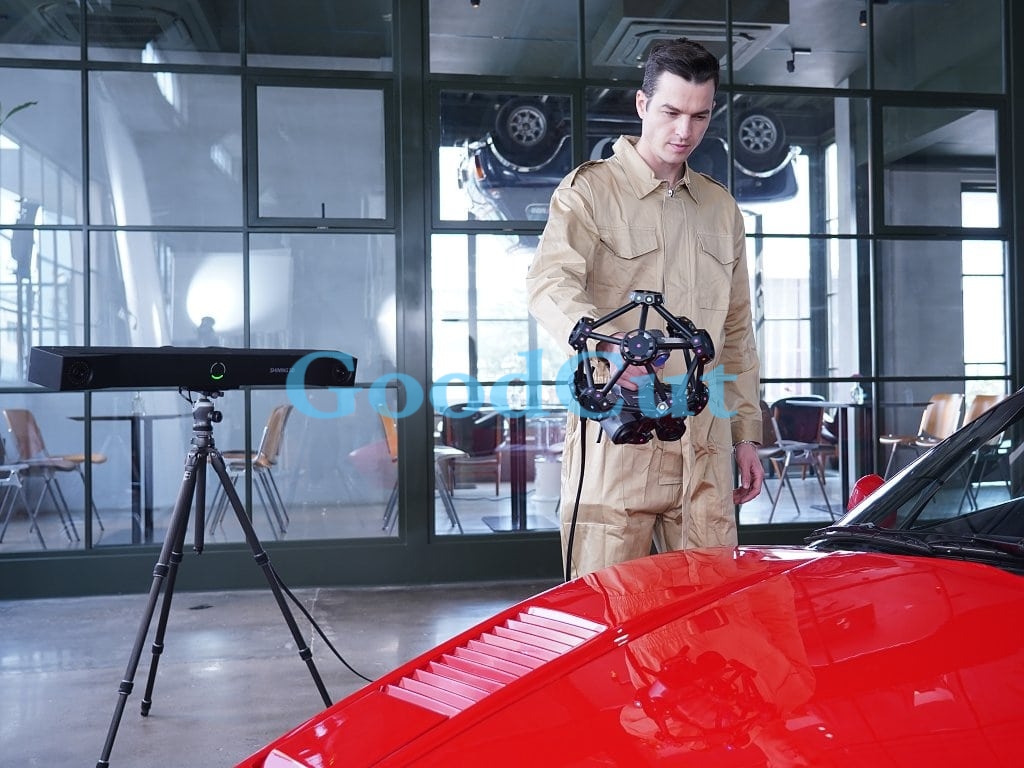

The FreeTrak W dynamically tracks the TE25W scanner using its tracking targets, eliminating the need to manually place markers on the scanned object.

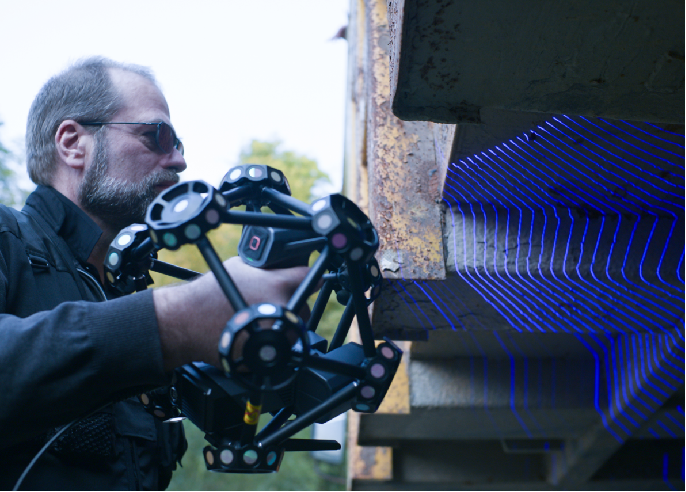

Fast Paced Scanning

FreeScan Trak ProW enables fast paced and smooth scanning tasks with a scan speed up to 5,500,000 points/s.

Exceptional Accuracy

FreeScan Trak ProW delivers metrology-grade scanning results with exceptional accuracy.

3 Modes for Versatile Applications

The TE25W features 3 scanning modes: High-speed scanning, Detailed scanning, Deep pockets scanning.

FreeScan Trak W Features

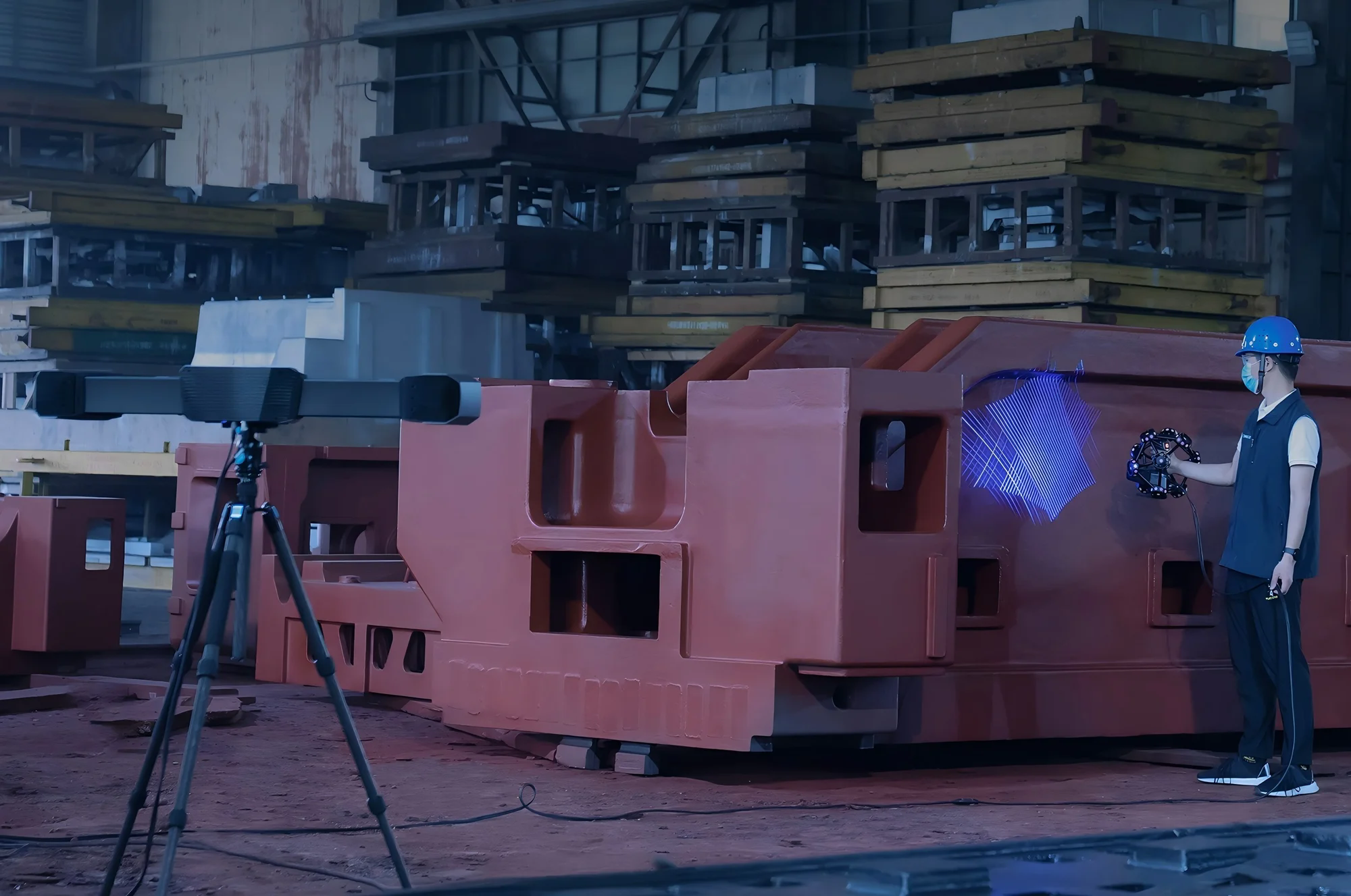

Ultra-Wide Measuring Range FreeScan Trak ProW features a groundbreaking design with an ultra-long 8.6 m tracking distance and widely expands the single-station tracking volume to 206.7 m³, significantly reducing the need for leapfrog* during large-scale object scanning. *(1) Leapfrog: Refers to the technique of relocating the measuring device to extend its working volume. This involves measuring reference geometries (artifacts) in one position, then repositioning the device and measuring the same reference geometries again. These reference points establish a link between the new device position and the original coordinate system, allowing measurements to be consistently reported in the same reference frame.

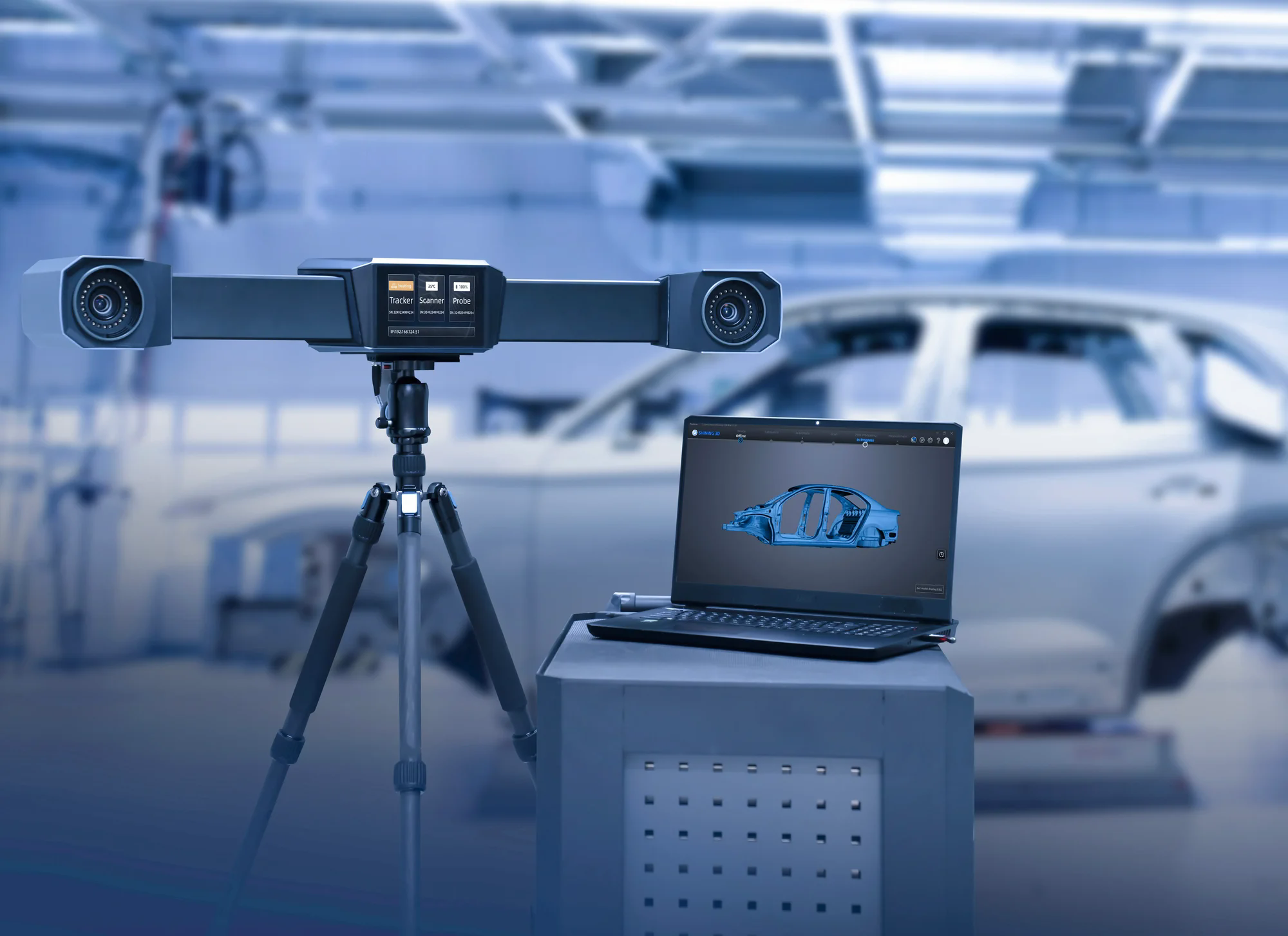

	Wireless Scanning Wherever You Go FreeScan Trak ProW delivers fast, wireless scanning anywhere. Its cable-free design enables real-time data transfer, with power bank support for unrestricted mobility. An integrated screen ensures seamless operation. Built-In Computing Modules Integrated Wireless Modules Flexible Power Supply Real-Time Display Screen
No Markers Needed, Fast Paced Scanning FreeTrak W enables real-time TE25W scanner recognition and positioning, eliminating the need for reference markers, which enhances scanning efficiency and streamlines the workflow, while ensuring rapid data acquisition with a scanning speed of up to 5,500,000 points per second.

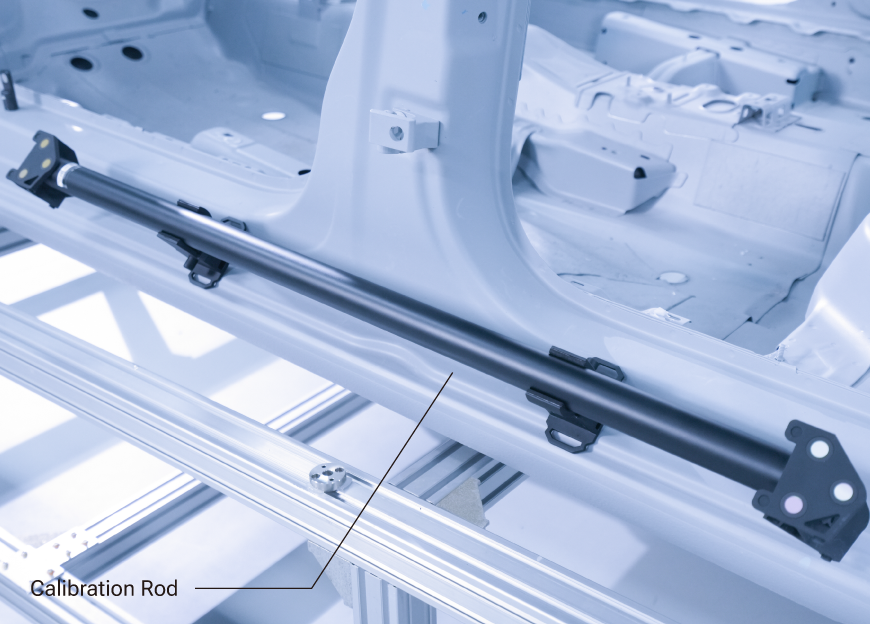

	Video Photogrammetry (VPG) FreeScan Trak ProW features SHINING 3D’s patented video-based photogrammetry, which eliminates the need for coded markers. By integrating photogrammetry technology with a calibration rod, it enables real-time marker verification through video capture. This ensures consistent volumetric accuracy and streamlines the setup process for efficient large-object scanning.
