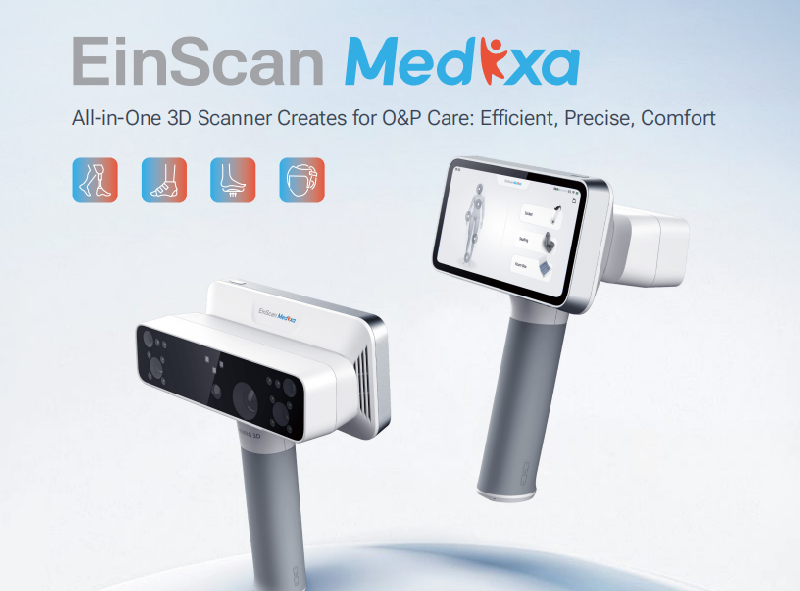

All-in-One 3D Scanner Created for O&P Care: Efficient, Precise, Comfort

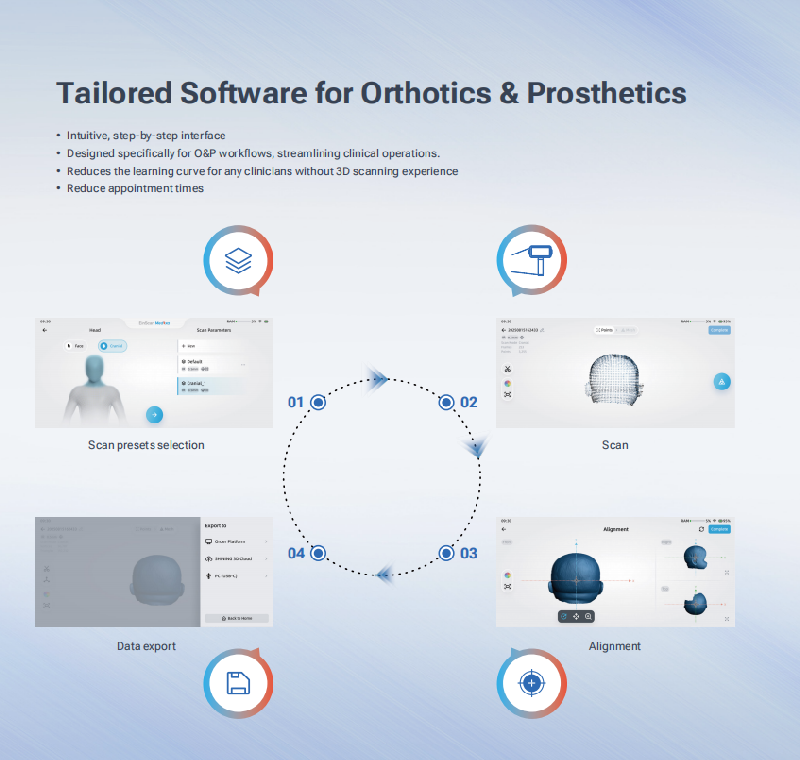

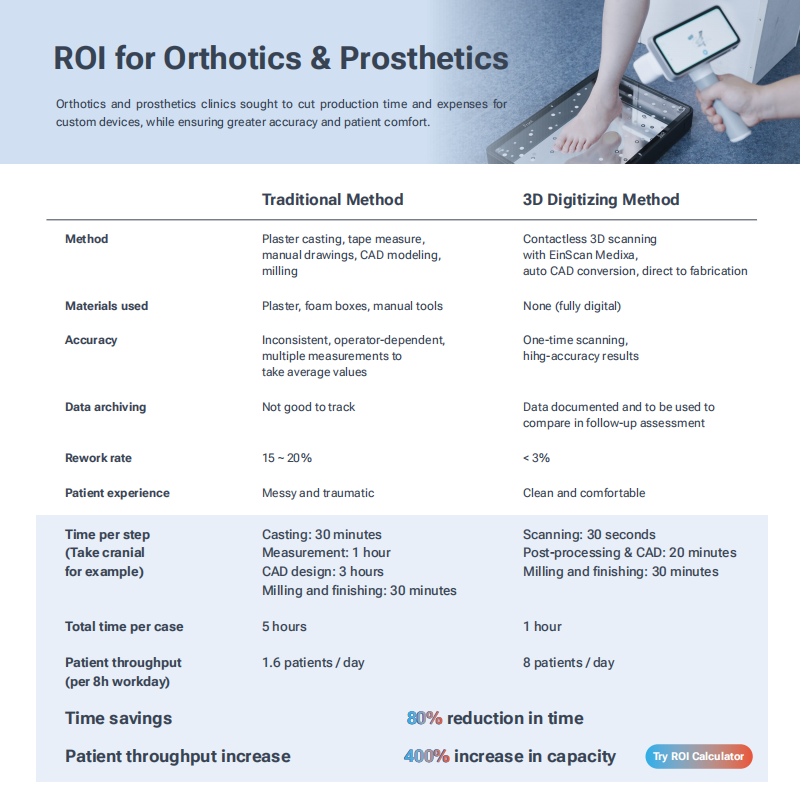

Tailored workflow for orthotics & prosthetics

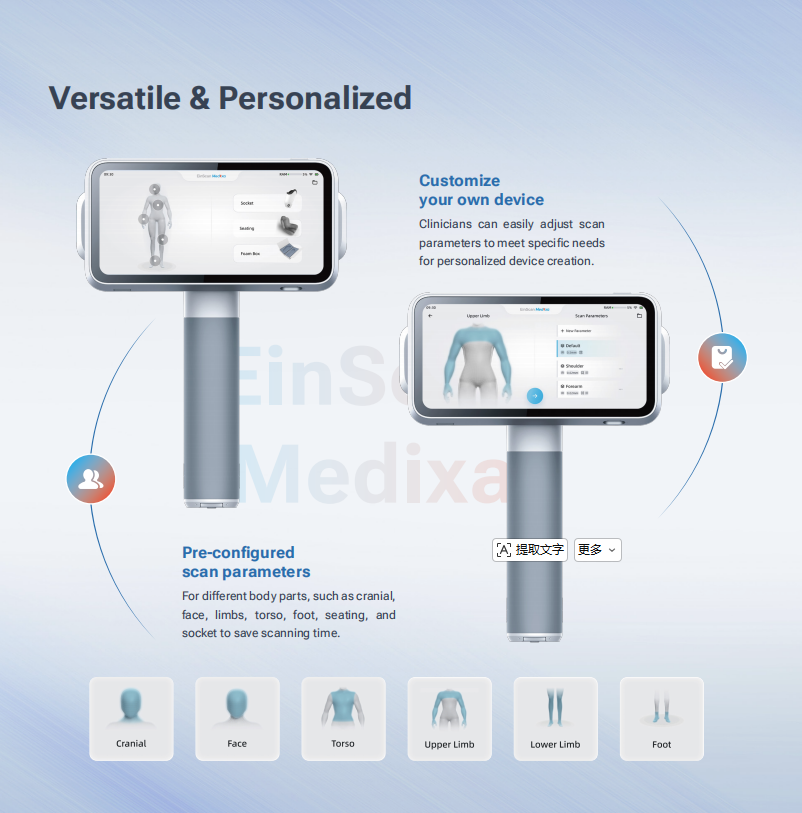

Versatile & personalized scan presets

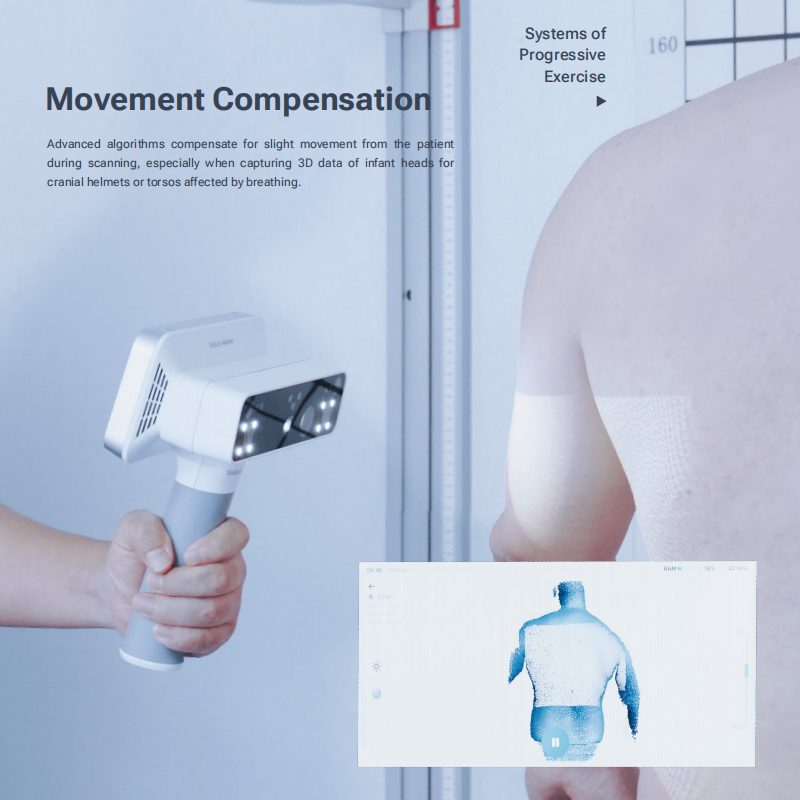

Movement compensation

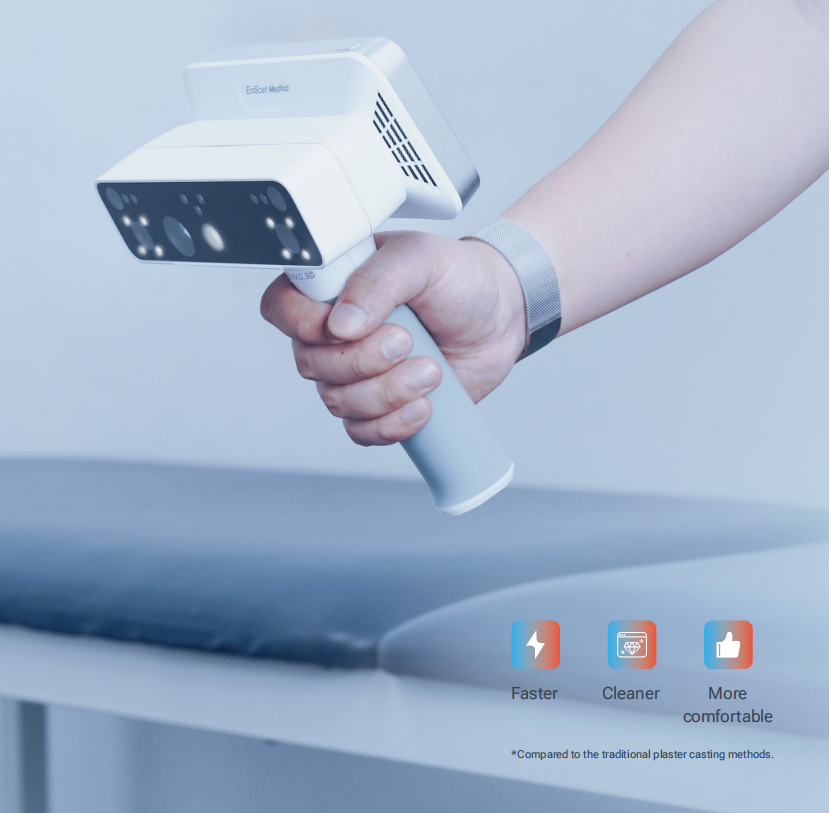

Contact-free and patient-friendly

Parameter	Specification
Scan presets	Face, Cranial, Torso, Upper limb, Lower limb, Feet, Socket, Seating, Foam box
Light source	White light / Infrared VCSEL
Working distance	200 – 600 mm / 160 – 1500 mm
FOV	475 × 360 mm / 1090 × 1260 mm
Point distance	0.2 – 3 mm
Safety	LED Light (Eye safe) / Class I (Eye safe)

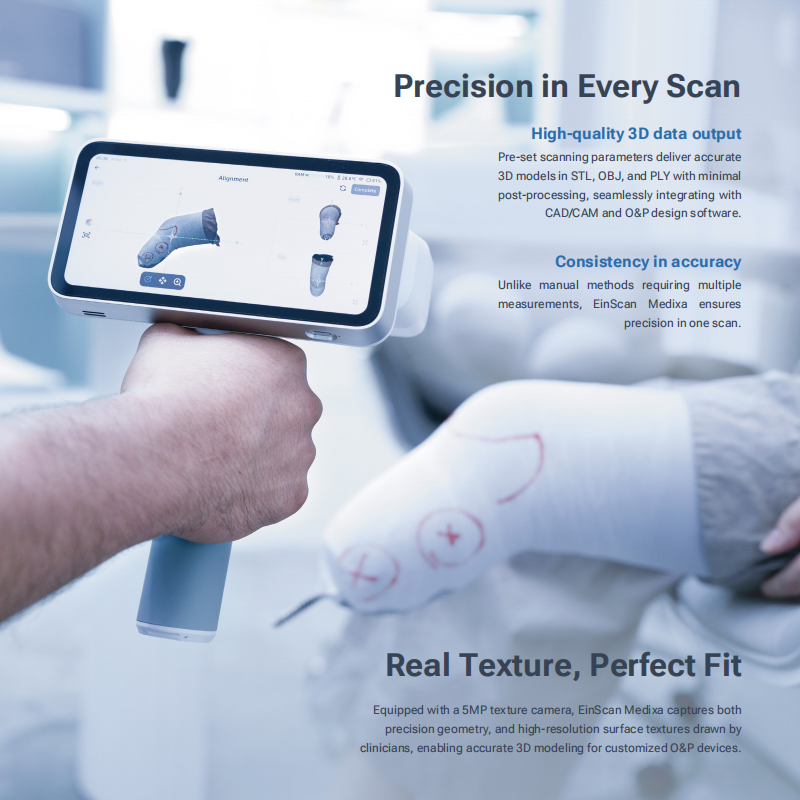

Texture camera resolution	5MP
Compatible accessory	FootStation 2*
Alignment	Features, Textures, Markers, Hybrid, Global Markers
Output formats	STL, OBJ, PLY
Hardware	CPU: 8 core, 2.4GHz; RAM: 32GB DDR5; Storage: 1T SSD; 6.4"2K AMOLED Touch Screen
Interface & power source	Wi-Fi 6; USB-C; Battery: 5500mAh × 2; Support USB-C 60W-PD3.0 Charger
Dimension	(HDW) 233 × 180 × 91 mm
Weight (with batteries)	953 g

Comfort for Patients Confidence for Clinicians

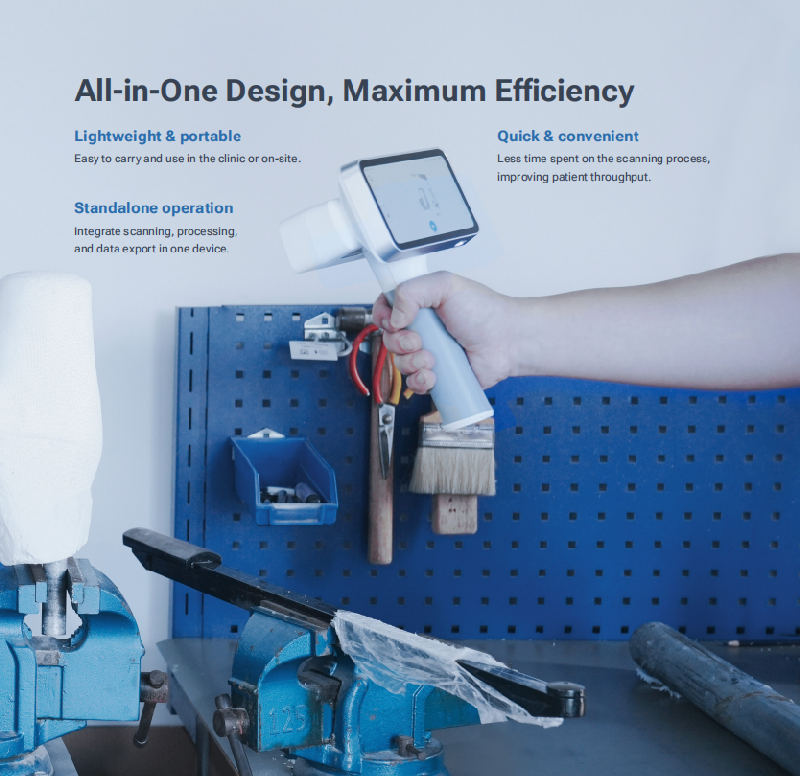

EinScan Medixa is a wireless, all-in-one body 3D scanner designed specifically for orthotics and prosthetics, integrating simplified workflows with
onboard processing to eliminate the need for an external computer during scanning. The contact-free, fully digital method
empowers O&P clinicians to deliver patient care with greater eﬃciency, precision, and ease.
