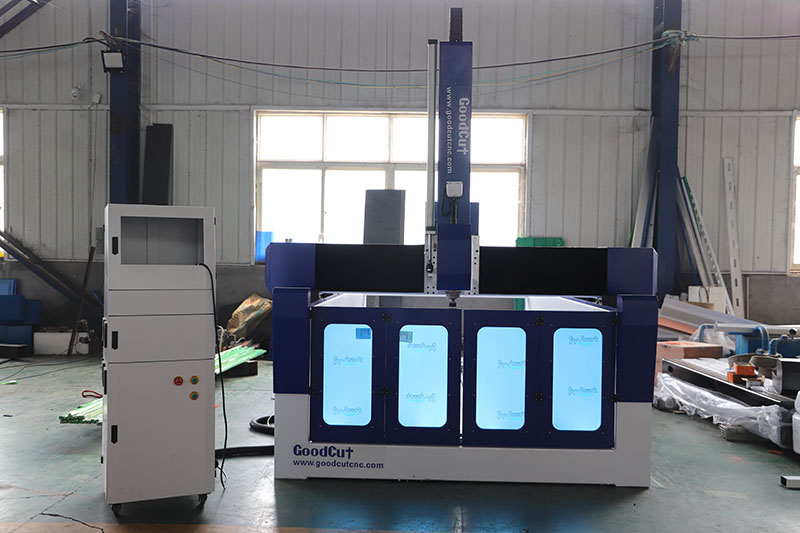

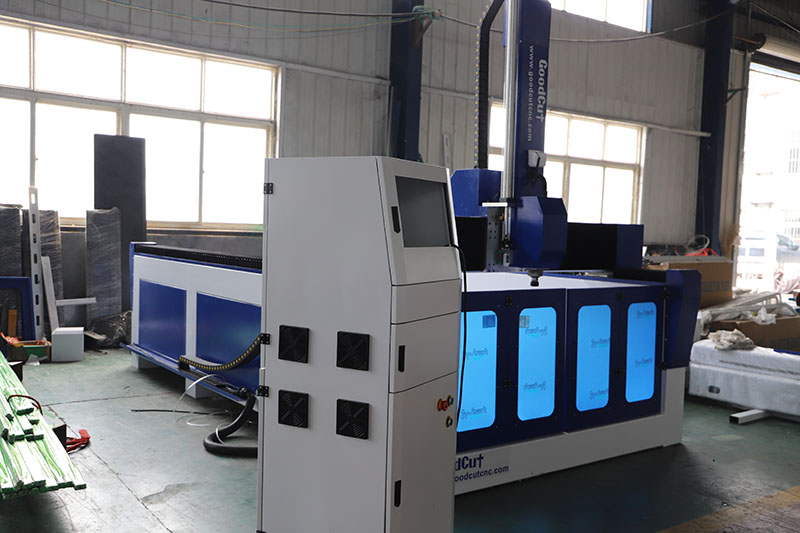

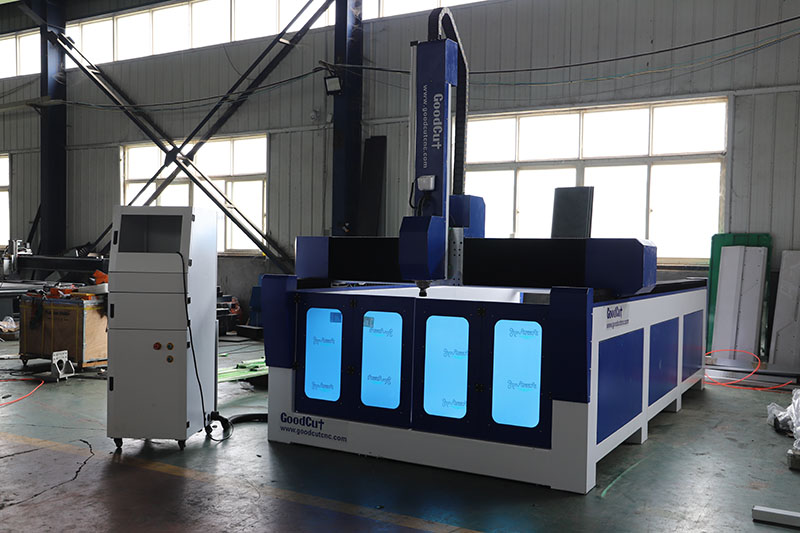

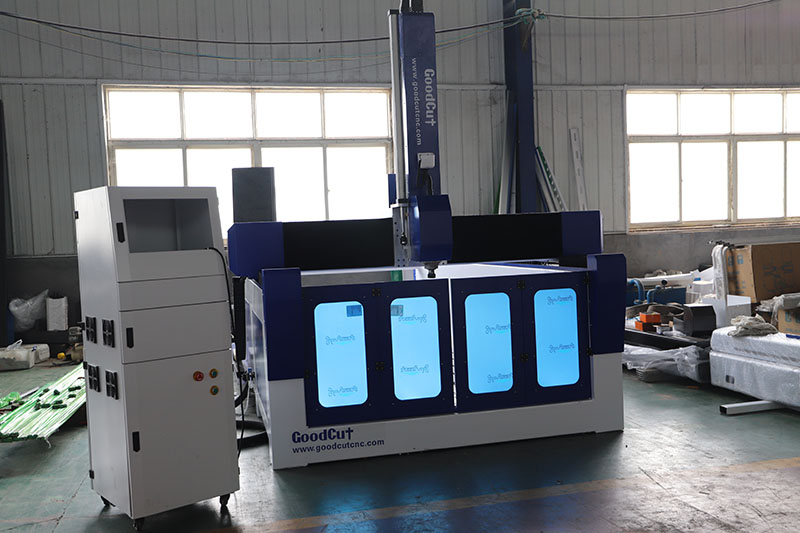

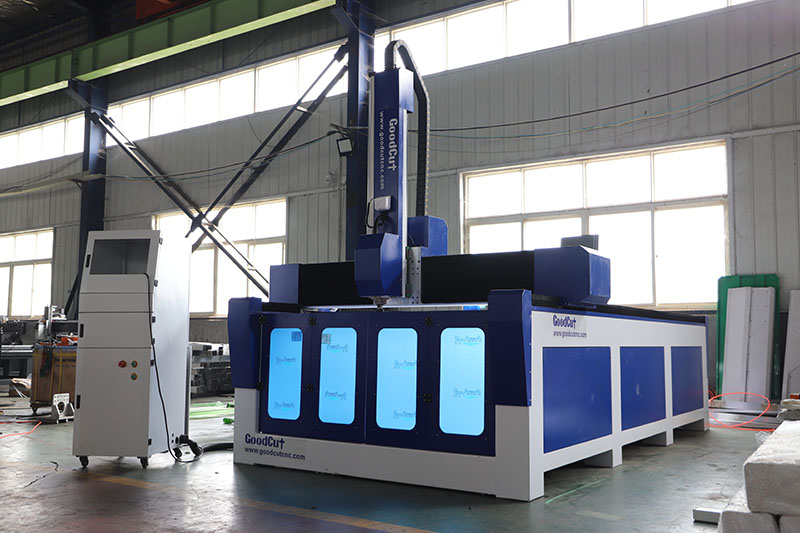

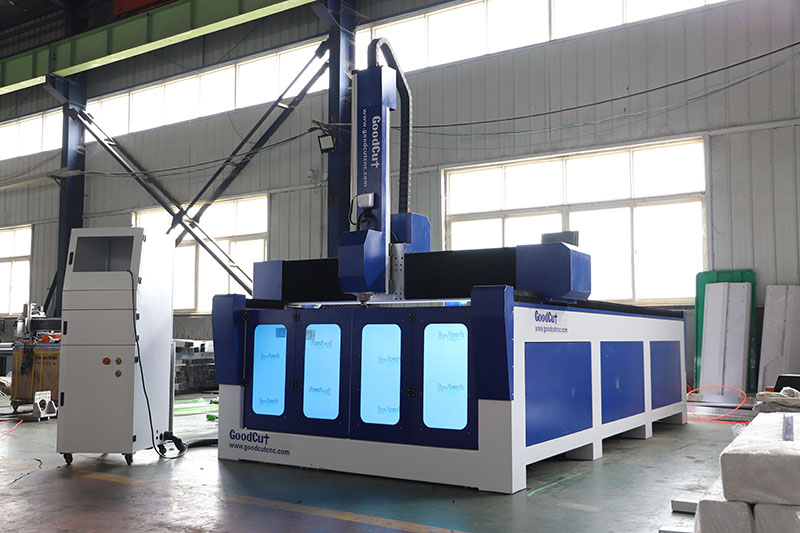

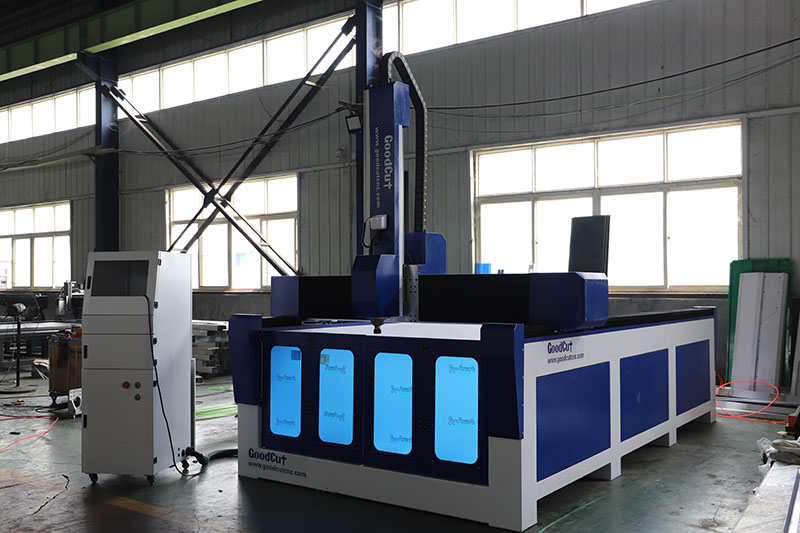

GC1325-4F 4 Axis CNC Router Machine with Rotary Device for Foam EPS

  • 5.5kw/7.5kw water cooling spindle
  • Servo / hybrid servo motor and driver

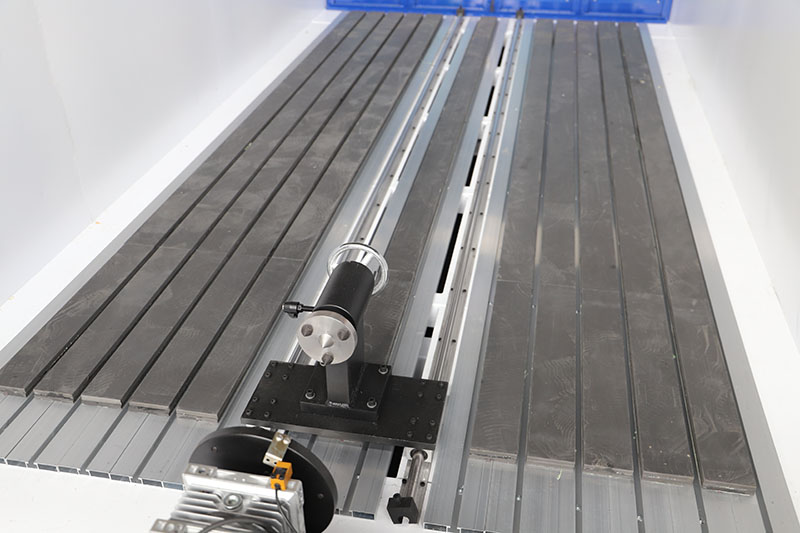

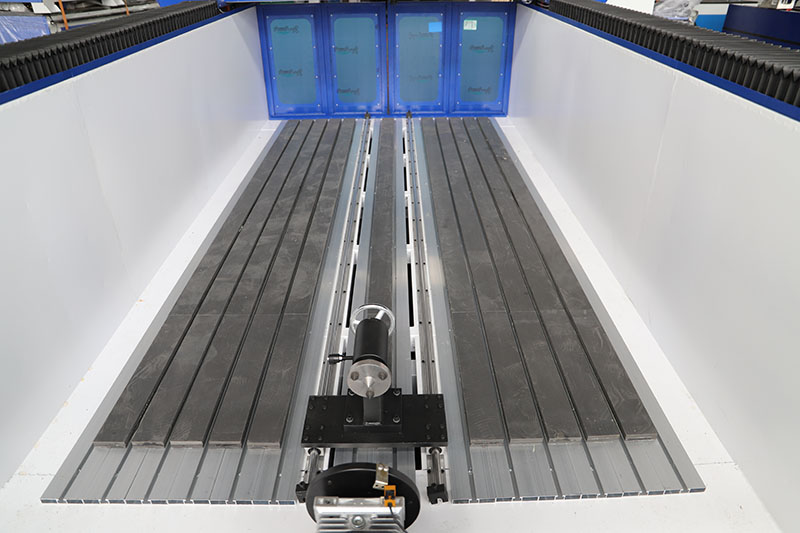

  • with 360 degree rotary device
  • High Z axis machine
  • Product description: Working area: 1300*2500mm Structures: heavy duty body design Mach3/NC-Studio / Richauto Panel control system Materials: Foam EPS
  • INQUIRY   EMAIL

Model

GC1325-4F

Working size

1300*2500*600mm

1500*3000*600mm

2000*3000*600mm

2000*3000*600mm

size can be customized

Structure

Whole steel welded

Control system

DSP/LNC/Syntec etc

Spindle

6kw/7.5Kw/9Kw etc

Spindle speed

0-18000rpm

Table Surface

T Slot Table

Driving system

Japan Yaskawa Servo System

Leadshine servo motor

Guide rail

Taiwan HIWIN

Inverter

Chinese Best/Fuling/ Delta

Z axis transmission

TBI Ball Screw Transmission

Collet

ER32/BT30/BT40

Rotary clamp

φ600X2500mm

Working Voltage

AC380 50HZ/60HZ 3 phase or AC220 50/60HZ single phase

Optional

Swing head with 180 degree

Rotary device

Package

Plywood




FEATURES

Compared with other foam engraving Machine, this machine's working size is much larger. And The Z axis can be heightened according to your special requirements; and the whole working size also can be customized.

1. With heavy-duty gantry and structure, which can guarantee the machine to be strong, reliable and durable.

2. Equipped with air cooling spindle, it has the features of low noise and easy operation.

3. With imported high-precision ball screw and Taiwan Hiwin linear square rails, which move smoothly to ensure the machining precision.

4. Many configurations and service can be available according to your requirement.

APPLICATION

The machine hes been widely used in these industry: Die and mold industries: The machine can engrave various large nonmetallic molds, especially for auto foam mold, wooden molds for ship,aviation and train. It is also suitable for precise manufacture of casting wooden mold, food mold (such as moon-cake mold) and other molds,etc. Musical instrument industry: The machine can also engrave large 3D curved surface instruments and contour cutting.

SAMPLE
