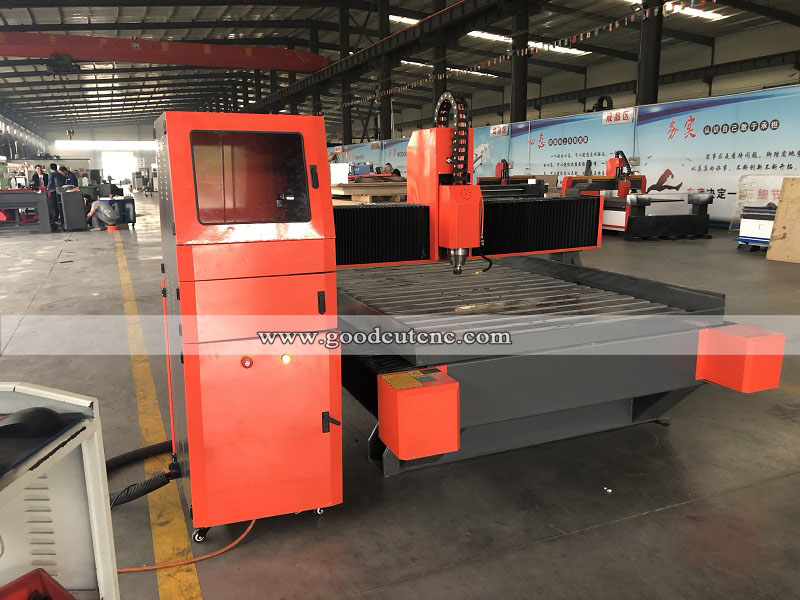

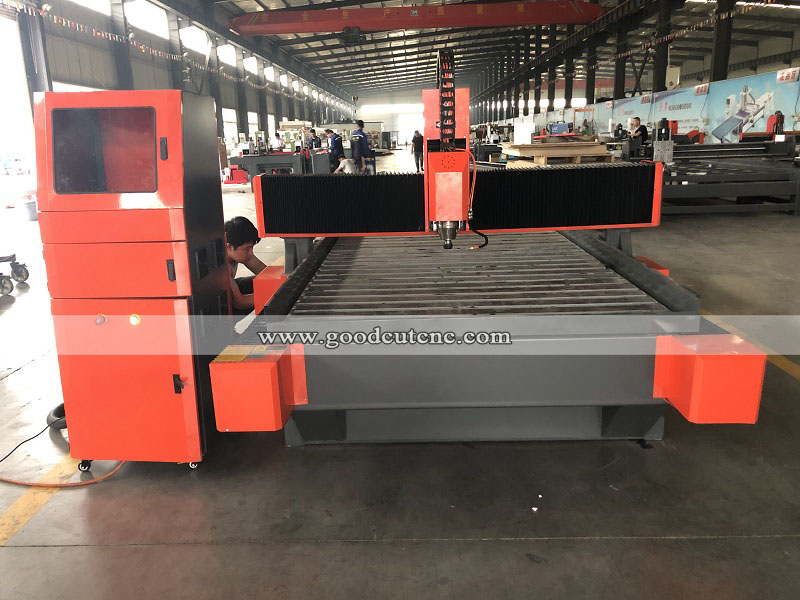

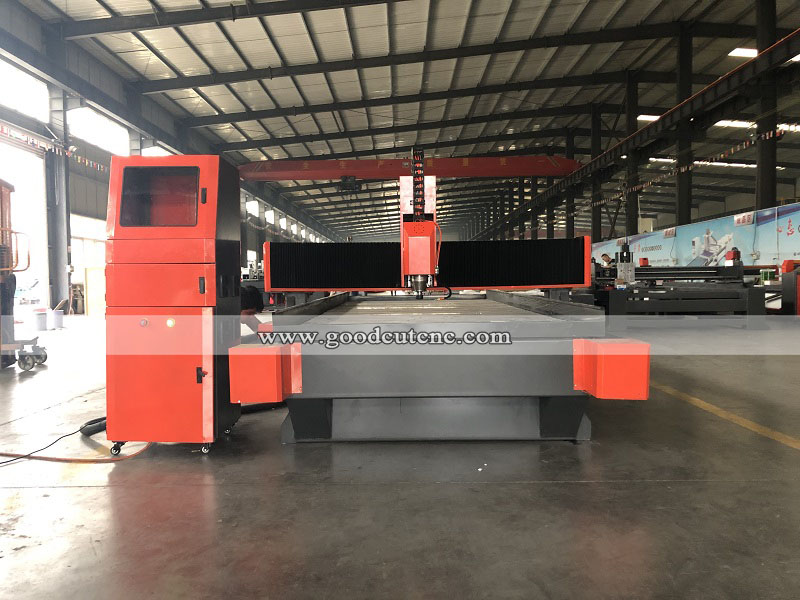

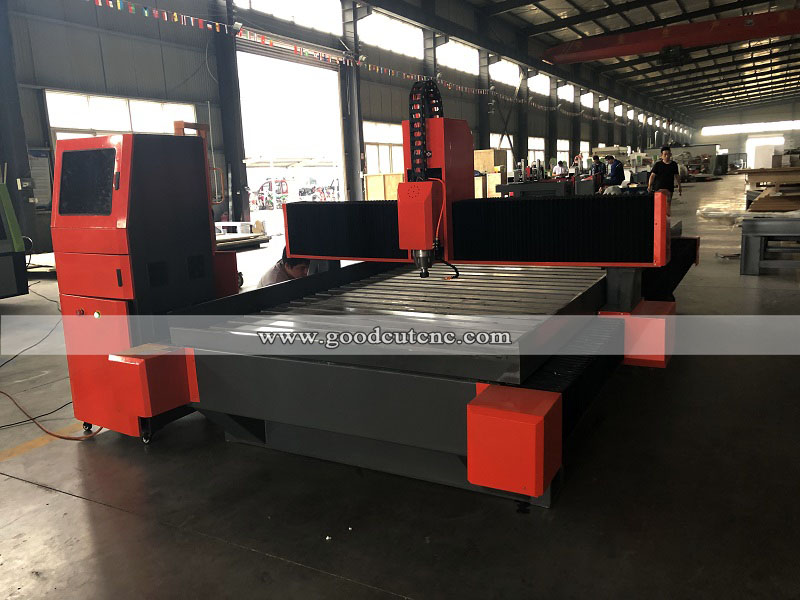

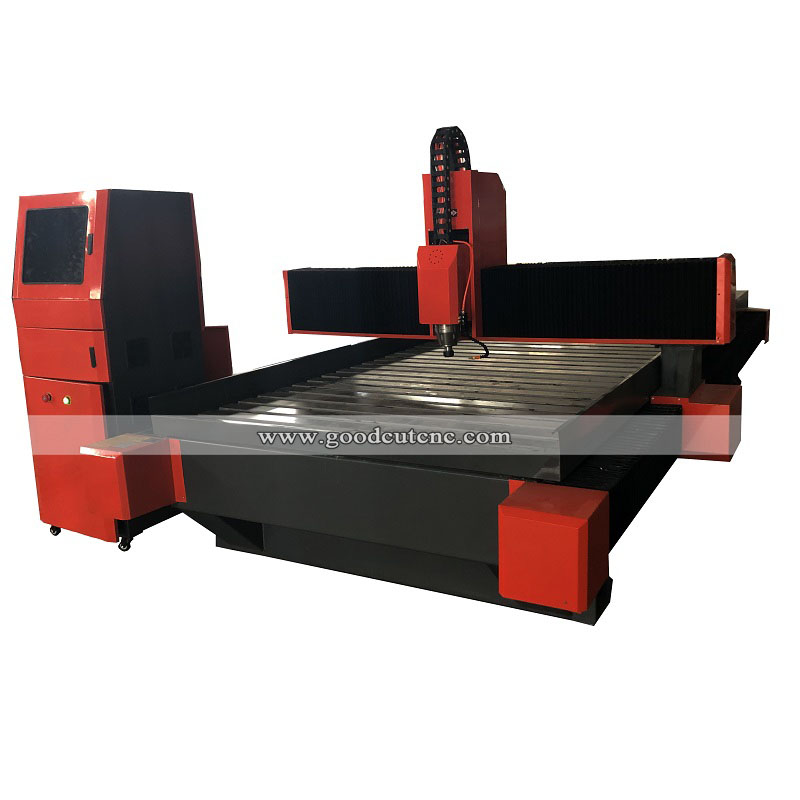

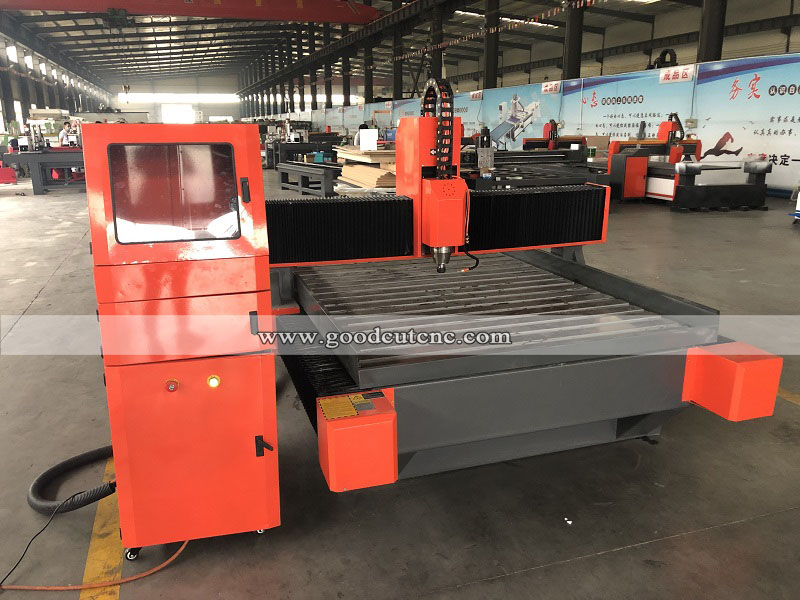

GC1540W Metal Cutting Engraving Cnc Router Machine For Aluminum

  • 1500*4000mm working area
  • Servo motor and drivers
  • X,Y,Z axis ball screw transmission
  • 5.5kw water cooling spindle
  • Product description: Working table: Aluminum pvc table T slot Motor: servo Transmission: X,Y,Z axis ball screw transmission This machine is suitable for cutting engraving soft metal.
  • INQUIRY   EMAIL

GC1540W Metal Cutting Engraving Cnc Router Machine For Aluminum



Main features :

1.1500*4000mm working area

2. Servo motor and drivers

3. X,Y,Z axis ball screw transmission

4. 5.5kw / 7.5kw water cooling spindle

5.This machine is suitable for soft metal, for example Copper and aluminum


Features of 1540 Metal Cutting Engraving Cnc Router Machine For Aluminum:


1.Adopt heavy duty machine frame, forming by CNC planer-type milling machine, more stronger, stability.

2.High accuracy X,Y,Z 3 axis ball screw transmission, high accuracy helical gear rack transmitting, more stability, high precision stability.

3.Configured advanced DSP control system on line special controlling system, indepent power supply, qualick calcaulation, strong anti-interferencess peroformance, Own more powerful application performance.

4. This machine adopt servo motor.

5.Has power off restoration,continue processing at break point, auto tool height adjusting device, repeat processing, support 9 coordinates setting, user friendly design.

6.Standard configured 380V 5.5KW /7.5kw water cooling spindle high power, high efficiency.

7.Be compatible with many CAD/CAM software like type3/Art-cam/Casmate/Proe/UG/Artgrave etc.

8.Independent control cabinet, Stronger power and weak power separate, maintenance easily.

9.Can optional the vaccum system and dust collector system.



Parameters of 1540 Metal Cutting Engraving Cnc Router Machine For Aluminum:

Model No.

1540 metal cnc router

Table Size

1500mm*4000mm

Max. feeding height of Z axis

200mm

Table Structure

Aluminum pvc table T slot

Machine body

heavy duty frame

X Y Z axis Transmission

3 axis by ball screw transmission

Spindle Power

5.5/7.5kw water cooling spindle

Max.Spindle Speed

24000 rpm/min

Max. Traveling Speed

25000mm/min

Max. Working Speed

12000mm/min

Processing Accuracy

±0.025mm

Reposition Accuracy

≤0.025mm

Driving System

Servo motor and driver

Command Language

HPGL, G Code

Control System

NCSTUDIO/MACH3/DSP

Working Voltage

AC110/220V, 50/60HZ

Net Weight/Gross Weight

1350KGS

Package Dimension

3300x1950x1950mm



Parts images


Working table: Aluminum pvc table T slot


Adopt heavy duty machine frame, forming by CNC planer-type milling machine, more stronger, stability.


5.5kw/7.5kw water cooling spindle, high power, high efficiency.



Lubrication system of all machine, just one press, easy to operation.

The Oil mist Coolant System  is ideal for coolant tools for cutting metal. The unit's micro-dispenser delivers a very small amount of high-performance vegetable-based lubricant to the cutting tool by atomizing the lubricant in a high-velocity air stream.

Independent control cabinet



Servo motor and drivers



Applictions of 1540 Metal Cutting Engraving Cnc Router Machine For Aluminum:

1. Wood Furniture Industry: Wave Plate, fine pattern, antique furniture, wooden door, screen, craft sash, composite gates, cupboard doors, interior doors, sofa legs, headboards and so on.


2. Advertising Industry: Advertising identification, sigh making, Acrylic engraving and cutting, crystal word making, blaster molding, and other advertising materials derivatives making.


3. Die Industry: A sculpture of copper, aluminum, iron and other metal molds, as well as artificial marble, sand, plastic sheeting, PVC pipe, wooden planks and other non-metallic mold.
