Laser Welding Cleaning Machine

  • GC-WL 1000w 1500w 2000w Handheld Laser Welding Machine with Wire Feeder
  • GC-WL 1000w 1500w 2000w Handheld Laser Welding Machine with Wire Feeder
  • GC-WL 1000w 1500w 2000w Handheld Laser Welding Machine with Wire Feeder
  • GC-WL 1000w 1500w 2000w Handheld Laser Welding Machine with Wire Feeder
  • GC-WL 1000w 1500w 2000w Handheld Laser Welding Machine with Wire Feeder
GC-WL 1000w 1500w 2000w Handheld Laser Welding Machine with Wire FeederGC-WL 1000w 1500w 2000w Handheld Laser Welding Machine with Wire FeederGC-WL 1000w 1500w 2000w Handheld Laser Welding Machine with Wire FeederGC-WL 1000w 1500w 2000w Handheld Laser Welding Machine with Wire FeederGC-WL 1000w 1500w 2000w Handheld Laser Welding Machine with Wire Feeder

GC-WL 1000w 1500w 2000w Handheld Laser Welding Machine with Wire Feeder

  • Handheld
  • Raycus laser source
  • High quality
  • Good price
  • Product description: 1000w 1500w 2000w Raycus laser source With wire feeder Handheld laser welding machine
  • INQUIRY   EMAIL

GC-WL 1000w 1500w 2000w Handheld Laser Welding Machine with Wire Feeder

Parameter:


Model

GC-WL

Fiber Laser source

Raycus 1000w 1500w 2000w

Spare parts

Focus lens and Protective lens only

Welding head

WSX

Laser wavelength

1064nm

Weling min molten pool

0.1mm

Welding depth

≤3mm

Spot size adjustable range

0.3-3.0mm

Workbench repeatability

±15kw

Viewing system

Red light positioning

Working table type

Optional

Cooling

Water cooling

Maximum pulse

100J

Peak power

9.9KW

Operating Temperature

0-45℃

Operating humidity

5%-95%

Graphic Format Supported

BMP,GIF,JPEG,PCX,TGA,TIFF,PLT,CDR,DWG,DXF

Opearation System

Win98/Win2000/WinXP

Net Weight

200KG

Dimensions

1200x700x950mm

Warranty

Two year

Voltage

AC220V±10%/50Hz/60A

Machine Size

1200*700*950mm


Feature:

1. The weld seam is smoothe and beautiful, it doesnot need to be polished or the  workboard of the polish is very small.

2. Through control the laser energy, the welding will not defrom or very few deformation.

3. Handheld  laser welding machine is easy to handle and needn't to  require the  professional welders.

4. The wobble welding machine can handle the hard welding material easily, such as aluminum, brass.

5. Long life span up to 100,000 hours and low comsumption.

6. the Auto wire feeding handheld welding machine can weld parts with wider gap.

7. With a 8-15m fiber line, It can weld long-distance and large- area parts.

8. Various welding processes, such as spot welding, seam welding and overlap welding.

9. The welding efficiency is around 5 times of TIG welding.

10. It is welding used in electronics, sheet metal, air condiction industry etc.


Deatiled parts:

1. Automatic Wire feed
No consumables, small size, flexible processing, low operating and maintenance costs.
2. Water Chiller
High cooling rate, which can weld fine weld structure and good joint performance.
3. Laser Welding Head
Smart high frequency swing welding head. Can be widely used in metal equipment, stainless steel home and other industries complex irregular welding process.

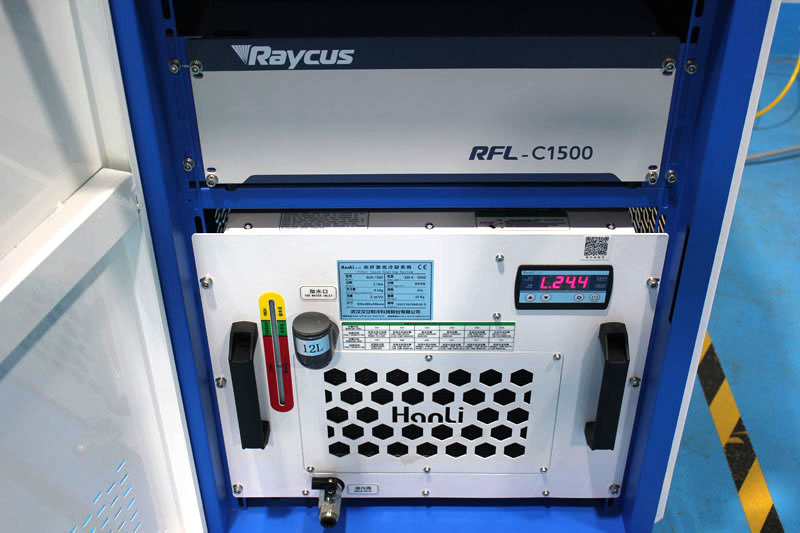

4. Laser Source
Chinese top brand fiber laser source Raycus, high power. The energy density is high, the heat input is low, the amount of thermal deformation is small.
5. Control Panel
With auto layout optimization, ensure high speed operation of whole machine.



Application:

1. Material

Stainless steel, copper, aluminum, gold, chromium, silver, titanium, nickel and other metals or alloys, it can also be used for a variety of welding between different materials, such as: copper - brass, titanium - molybdenum, titanium - gold, nickel - copper and so on.

2. Welding

Kitchen cabinets, staircase elevator, shelf, oven, stainless steel door, window guardrail, distribution box, medical equipment, communications equipment, craft gifts, household and other industries.
