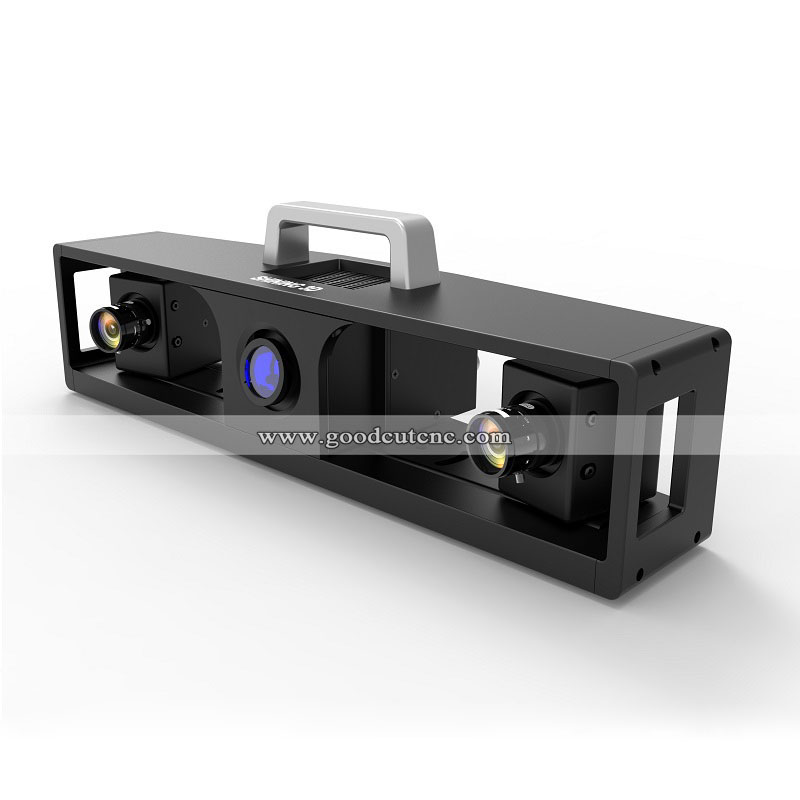

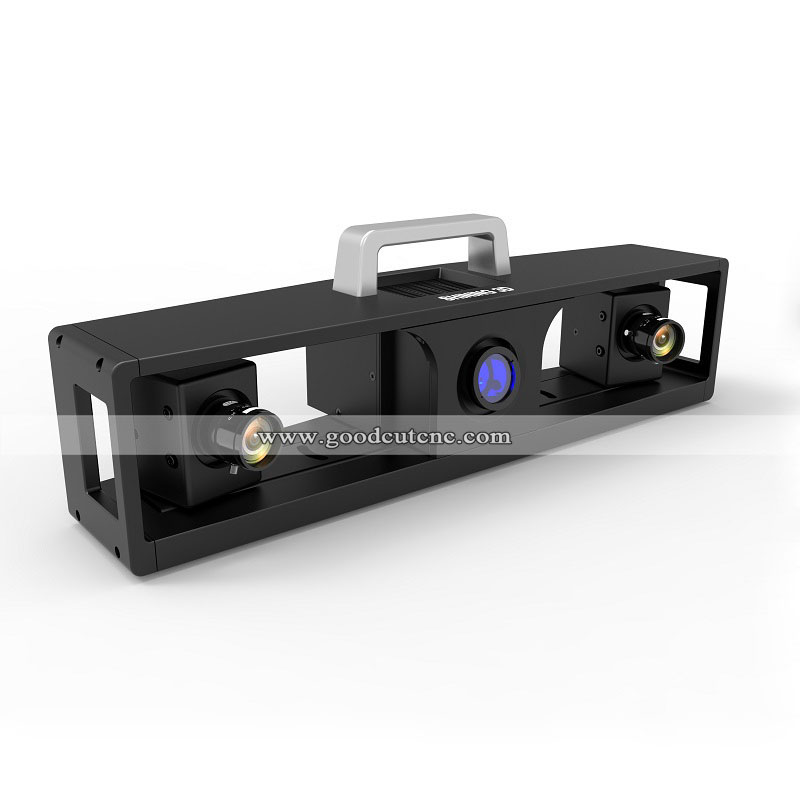

High Precision Blue Light OKIO-E 3D Scanner for Industrial

  • High speed
  • High accuracy
  • Blue ligh
  • Easy to operate
  • Product description: Blue light LED high precision digital grating machine Single Scan <0.5 s Scanning accuracy 0.035mm-0.015mm
  • INQUIRY   EMAIL

High Precision Blue Light OKIO-E 3D Scanner for Industrial





Product Description:
the newly developed blue light 3D scanner adopts blue light grating, which can be used in complex halo of workshop
Scanning in the environment; using high brightness LED cold light source, the life is greatly extended, the heating is small, and the scanning accuracy stability is high; using low distortion lens, the scanning accuracy is further improved.

Why choose blue ray:
The blue light scanner adds a filter to the lens to allow only specific wavelengths of blue light to pass through.
The content of blue light in natural light and illumination light source is very small, most of the light is filtered by filter, but the light of blue light projection light source can be collected by lens cup image sensor. In this way, most of the interference of ambient light is eliminated. It can be scanned in the complex light environment of the workshop; with high brightness LED cold light source, the service life is greatly extended, the heating is small, and the scanning accuracy stability is high; with low distortion lens, the scanning accuracy is further improved.


Parameter:

Model

GoodCut-OKIO-E blue light

Single-sided measuring range

400x300mm²—100x75mm²

Single width measuring accuracy

0.035mm-0.015mm

Average sampling point distance

0.31mm-0.07mm

Data acquisition sensor

High-precision industrial camera 1.31 million pixels

Grating generator

Blue light LED high precision digital grating machine

Scanning speed

Single measurement time≤5 seconds

Scanning method

Non-contact surface scanning

Splicing method

The system integrates a "one-click" automatic sign point splicing module

Accuracy control method

System integrates GREC global error control module

Data input and output

The export results are in ASC, STL and other formats, with a wide range of data output interfaces.

The results can be compared with CATIA, Geomagic Studio, Imageware Reverse engineering software to exchange data freely

Computer configuration requirements

Support windows 7 system, windows 10 system

(Configuration requirements: Intel I5 and above processors, 8G and above memory,

NVIDIA 1G and above graphics card, 40G and above hard disk)







GoodCut-OKIO-E camera-type three-dimensional optical scanning system integrates a "one-click" mark point automatic splicing module, no external software is needed for data splicing, system accuracy real-time detection function, splicing quality is automatically reported after each scan splicing, and You can view the accuracy of the corresponding mark points in real time, and the GREC global error control module can perform global control on the error after splicing.
