3D Scanner

  • Handheld Freescan X7 3d Laser Scanner with High Precision
  • Handheld Freescan X7 3d Laser Scanner with High Precision
  • Handheld Freescan X7 3d Laser Scanner with High Precision
  • Handheld Freescan X7 3d Laser Scanner with High Precision
  • Handheld Freescan X7 3d Laser Scanner with High Precision
Handheld Freescan X7 3d Laser Scanner with High PrecisionHandheld Freescan X7 3d Laser Scanner with High PrecisionHandheld Freescan X7 3d Laser Scanner with High PrecisionHandheld Freescan X7 3d Laser Scanner with High PrecisionHandheld Freescan X7 3d Laser Scanner with High Precision

Handheld Freescan X7 3d Laser Scanner with High Precision

  • 3d laser scanner
  • Freescan X7
  • High precision
  • Fast speed
  • Product description: Laser 3d scanner High precision, fast speed
  • INQUIRY   EMAIL

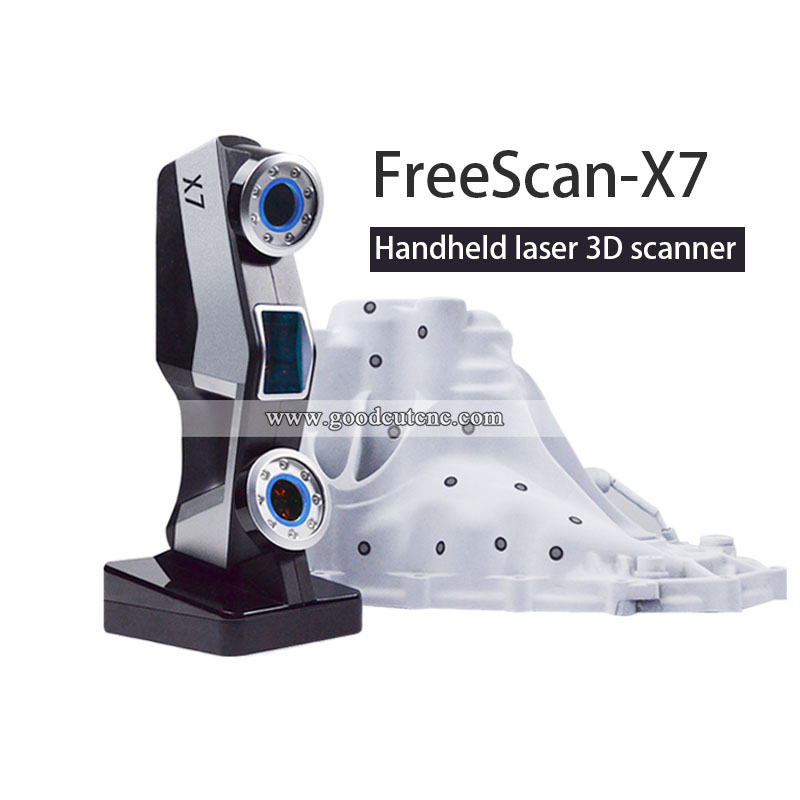

Handheld Freescan X7 3d Laser Scanner with High Precision


High precision
-No need to work with photogrammetry system
- Volumetric accuracy is up to 0.02mm+0.035mm/m

Fast speed
-Cut half quantity of sticker
-Double scan area

Large measurement range
-double scan area
-efficiently complete 3D reconstruction of large volume



1.Light body and easy operation: Light and handy (0.95kg), narrow space operation accessible. FreeScan X7 can operate without any external clamping positioning.


2.Large measurement space: Almost unlimited 3D scanning size, not affected by size, texture and color of the object.


3.High accuracy, high speed: Accuracy up to 0.03 mm, measured under the German VDI/VDE 2634 standard. The 3D scanning speed can reach up to 240000 points/s.


4.High compatibility: Compatible with 3D photogrammetric systems, which allows the measuring of very large parts (0.1 - 6 m, extendable).


5.Interface with CAD packages: FreeScan X7 is compatible with the most renowned CAD packages; including 3D System (Geomagic Solutions), InnovMetric Software (PolyWork), Dassault Systemes (CATIA V5 & SolidWorks), PTC (Pro/ENGINEER), Siemens (NX Solid Edge), Autodesk (Inventor Alias, 3ds Max, Maya, Softimage).
