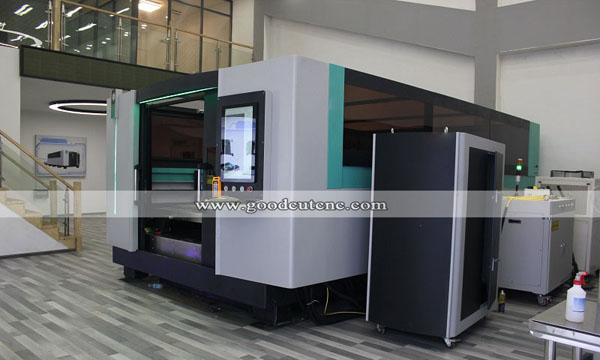

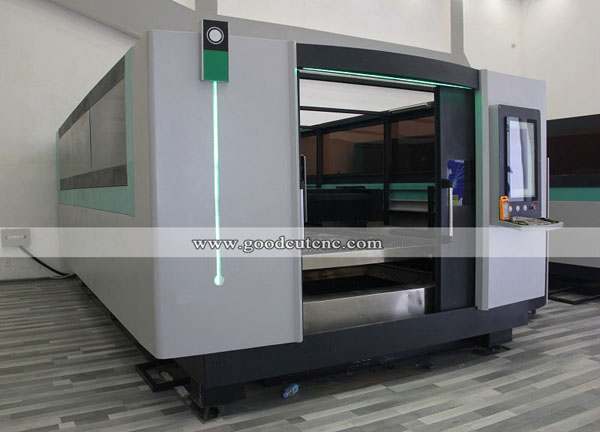

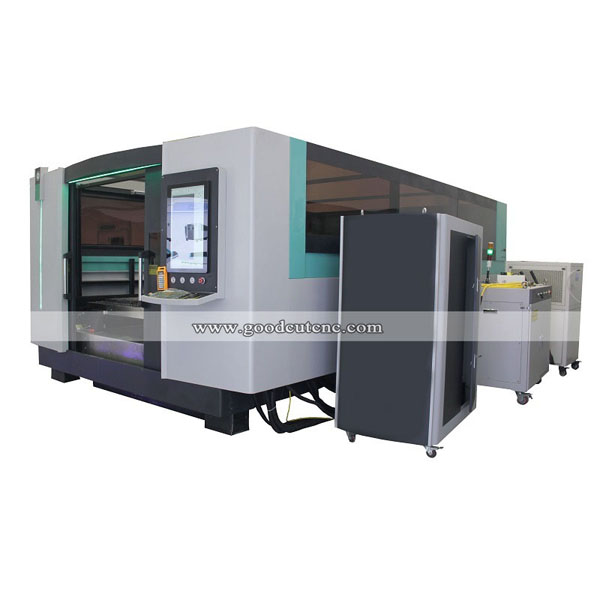

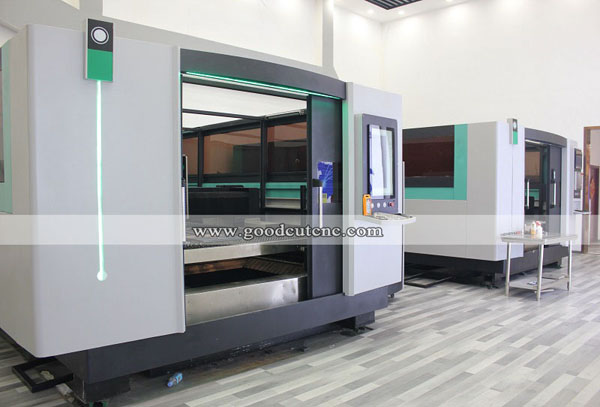

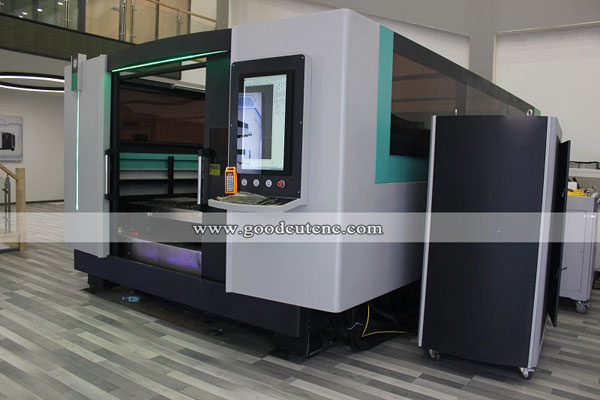

  • GC1530FC GoodCut 1500*3000mm Fiber Laser Cutting Machine with Cover Protective
  • GC1530FC GoodCut 1500*3000mm Fiber Laser Cutting Machine with Cover Protective
  • GC1530FC GoodCut 1500*3000mm Fiber Laser Cutting Machine with Cover Protective
  • GC1530FC GoodCut 1500*3000mm Fiber Laser Cutting Machine with Cover Protective
  • GC1530FC GoodCut 1500*3000mm Fiber Laser Cutting Machine with Cover Protective
GC1530FC GoodCut 1500*3000mm Fiber Laser Cutting Machine with Cover ProtectiveGC1530FC GoodCut 1500*3000mm Fiber Laser Cutting Machine with Cover ProtectiveGC1530FC GoodCut 1500*3000mm Fiber Laser Cutting Machine with Cover ProtectiveGC1530FC GoodCut 1500*3000mm Fiber Laser Cutting Machine with Cover ProtectiveGC1530FC GoodCut 1500*3000mm Fiber Laser Cutting Machine with Cover Protective

GC1530FC GoodCut 1500*3000mm Fiber Laser Cutting Machine with Cover Protective

  • with safe protective cover, exchange platform
  • Raycus IPG laser source
  • Tiwan HIWIN 30mm guide rails
  • Cypcut control system
  • Product description: Stainless Steel Carbon Steel Etc( Metal Laser Cutting Machine ) with safe protective cover, exchange platform 1000w 2000w 3000w laser source Japan Yaskaw servo motor
  • INQUIRY   EMAIL

GC1530FC GoodCut 1500*3000mm Fiber Laser Cutting Machine with Cover Protective



Adopted Original German IPG fiber laser source or RAYCUS Fiber laser source, with long using life up to 150000 hours and high cutting speed up to 15m/min;



Japan YASKAWA Servo motor with double ball screw driving system, can make sure the cutting high precision especially comparing with the single driver system.


Imported Famous Raytools laser head with auto focusing height follower, which can ensure the constant same distance between the head and cutting material

♦ The cutting slot is very slim, can reach up to 0.05mm. The machine is very suitable for processing precision parts with high efficiency.

Automatic Lubrication System for Mechanic, which can lubricate the linear guiderail nearly 500 times per minute to make sure the high precision.

Convenient Collecting System, which has the special funnel design to make collecting more easy

♦ Free of any maintenance, because of Fiber optical transmission, fiber line transmission, no need reflect lens, without optical adjustment, save maintenance cost.



Paramenter:

1
Machine Name
GoodCut 1500*3000mm fiber laser cutting machine with cover protective
2
Model
GC1530FC
3
Laser machine cutting area
3000x1500mm
(Other size can be customized,such as 4500x1500/6000x1500/6000x2000mm)
4
Tube Cutting Range
Tube diameter range:20-200mm
Tube length:6000mm
(Other size can be customized,detailed confirmed with sales)
5
Fiber Laser Power
500w/750w/1000/1500/2200/3300/4000/
6000/8000/12000/25000W
6
Laser wave length
1064nm
7
Transmission system
Gear + rails
(we have standard brand,we can also produce as your requirements)
8
X.Y axis location accuracy
±0.01mm
9
X.Y axis repeat location accuracy
±0.01mm
10
X.Y axis max moving speed
30m/min
11
Max cutting speed
1--30m/min(it will according to metal material and laser power and machine configuration)
12
Cutting thickness
Detailed in the cutting thickness
13
Application Material
Metal sheet
Iron/CS/SS/Aluminum/Copper and all kinds metal
14
Advantages
>Excellent beam quality
>Simple , compact, electrically and optically efficient
>Compatibly powerful and reliable
>Maintenance free
>multilingual, more than 11 foreign languages
>3 years warranty .
15
Gross weight
10000KG(About)
16
Net weight
9500KG(About)
17
Machine size
Rotary size:8000*1600*1150mm
Machine size(without rotary):
5200*3000*2600mm
Detailed machine size will be according to detailed configuration.this size for your reference.
18
Transport
40 container + 20 shell frame

1. The Segmented Rectangular Tube Welded Bed

The internal structure of the bed adopts the aircraft metal honeycomb structure, which is welded by a number of rectangular tubes.

Stiffeners are arranged inside the tubes to increase the strength and tensile strength of the bed, it also increases the resistance and stability of the guide rail so as to effectively avoid the deformation of the bed.

High strength, stability, tensile strength, ensuring 20 years of use without distortion;

Thickness of rectangular pipe wall is 10mm and weights 4500 kg.

2.The Third Generation Aviation Aluminum Gantry

It is manufactured with aerospace standards and formed by 4300 tons press extrusion molding. After aging treatment, its strength can reach 6061 T6 which is the strongest strength of all gantries. Aviation aluminum has many advantages, such as good toughness,light weight, corrosion resistance, anti-oxidation, low density, and greatly increase the processing speed.

3.Switzerland RAYTOOLS Laser Head

 Optimization of the optical configuration Smooth and efficient air flow design

 Rotary Knob focus adjustment. More easy and flexible. Adjust range 20mm, accuracy:0.05mm.

 Drawer style mirror stand, changing protect glass faster and more easily.

 Collimating lens and focal lens adopt compound lens, to obtain the optimal optical quality and the cutting effect;





4.Taiwan TBI Guideway

It can absorb the assembly error of the Mounting surface and obtain the demand of high precision, high speed. Strong and durable, small friction running resistance is small can effectively improve the working speed








5.Independent Control Cabinet


6.Dust-proof

All electrical components and laser source are built-in to the independent control cabinet with a dust-proof design to prolong the lifespan of the electrical components.


7.Automatic Thermostat

The control cabinet is equipped with air conditioner for automatic constant temperature. This can prevent excessive temperature damage to components in summer.


8. Optional parts

Exchange table, save time to increase efficiency.


Application


Mainly used for cutting carbon steel, silicon steel, stainless steel, aluminum alloy, titanium alloy, galvanized steel sheet, pickling board, aluminum zinc plate, copper and many kinds of metal materials cutting and so on.

Applied Industry:

Applied in sheet metal processing, aviation, spaceflight, electronics, electrical appliances, subway parts, automobile, machinery, precision components, ships, metallurgical equipment, elevator, household appliances, gifts and crafts, tool processing, adornment, advertising, metal foreign processing various manufacturing processing industries.
