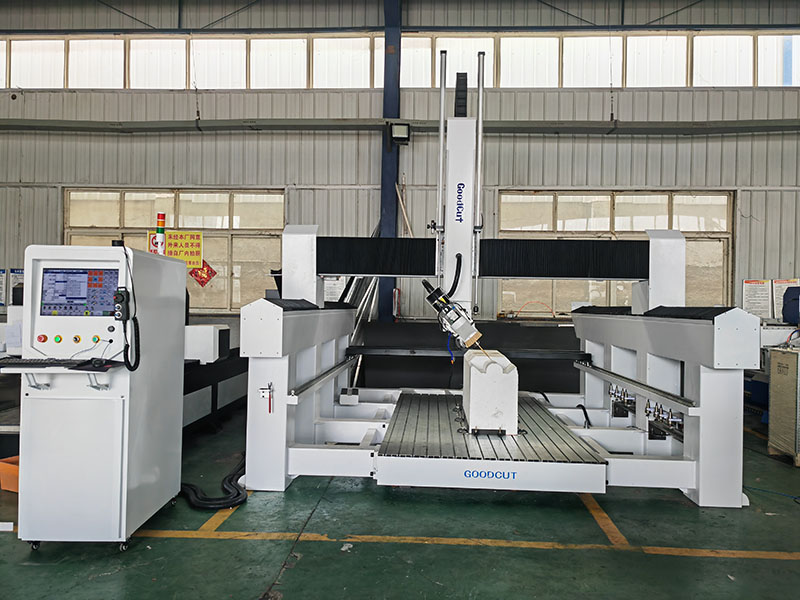

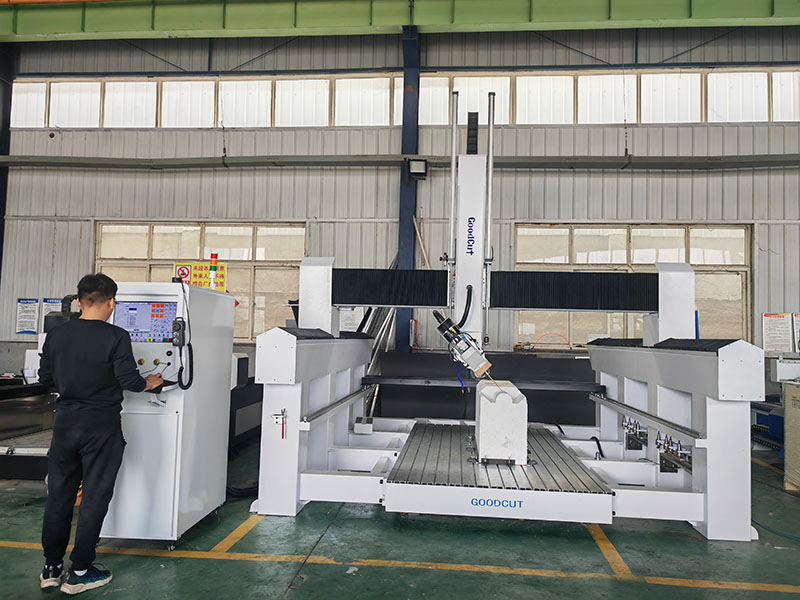

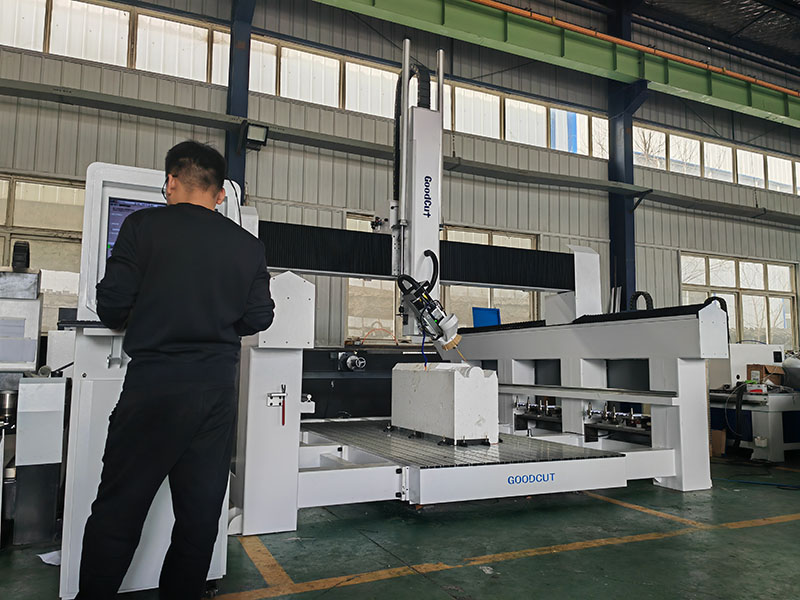

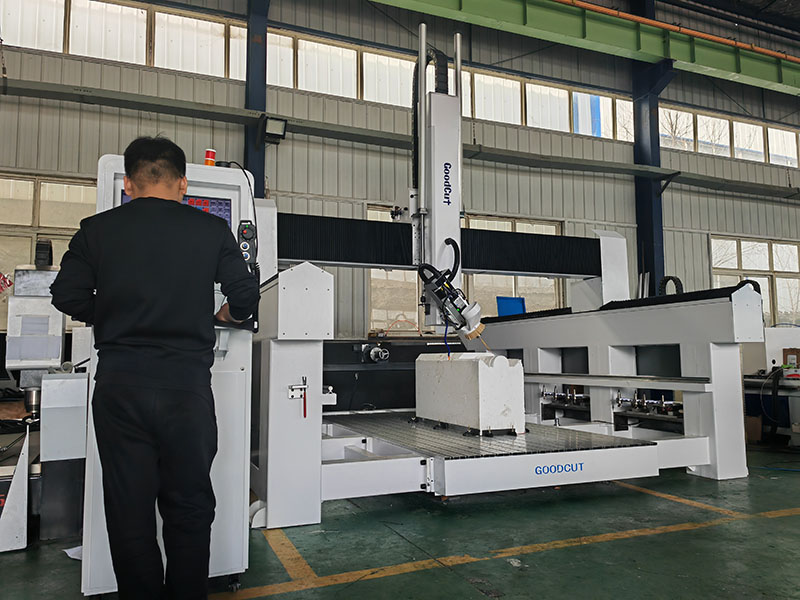

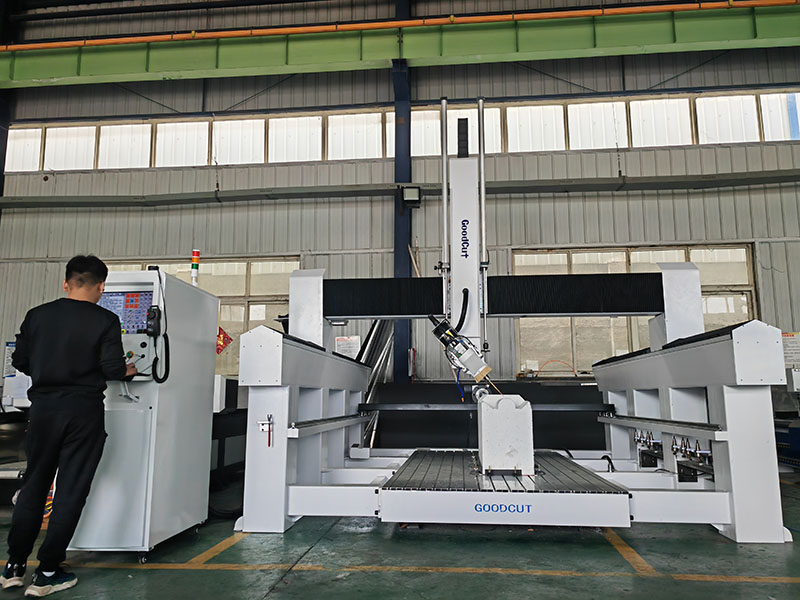

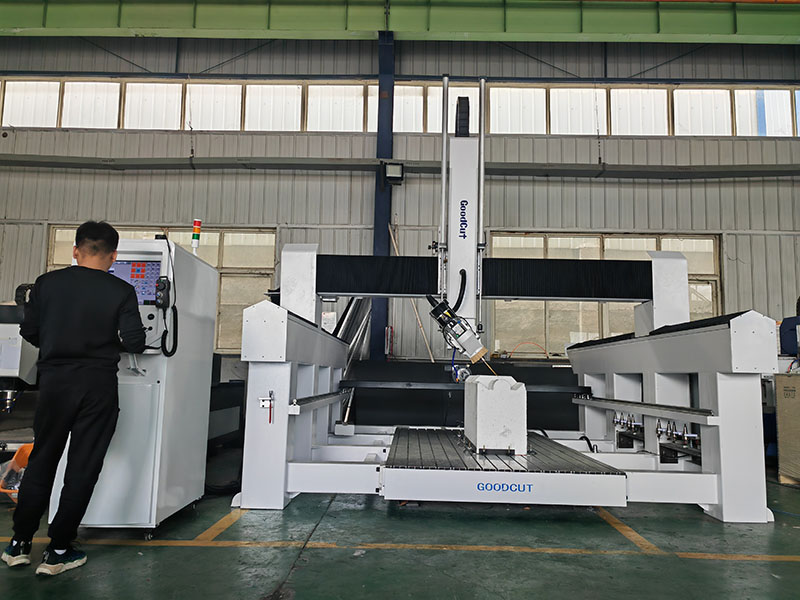

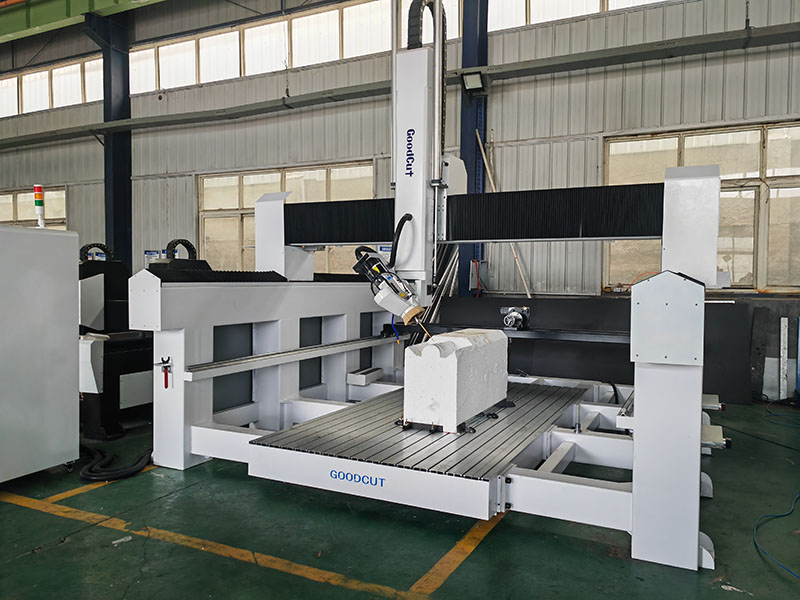

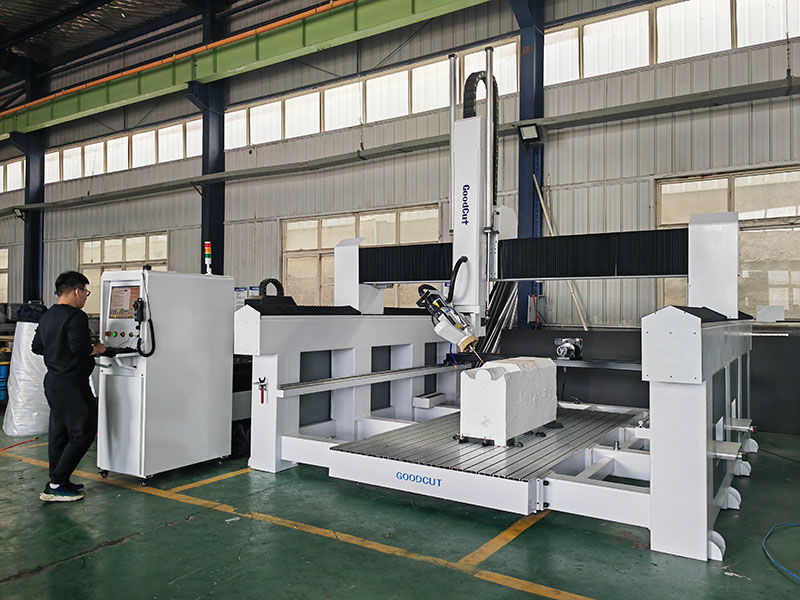

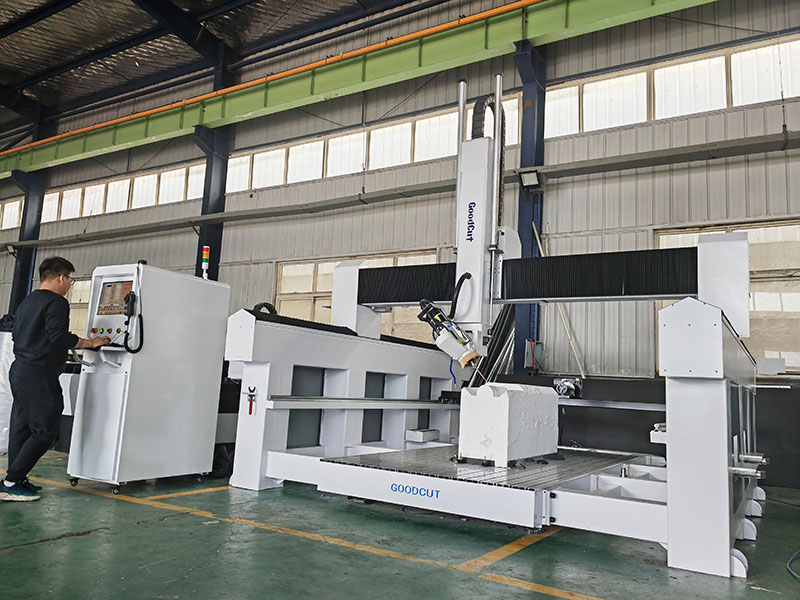

GC2040ATC-4 Axis Big Size Wood Foam EPS CNC Router Machine

Linear atc device
180 degree spindle
High Z axis
rotary device
Product description: Big size for optional 10/12 pcs linear auto tool change magazine Rotary decive for cylinder material working HQD 9kw rotated spindle for engraving 3d work Servo motor and driver Taiwan HIWIN guid
INQUIRY EMAIL

Compared with other foam engraving Machine, this machine's working size is much larger. And The Z axis can be heightened according to your special requirements; and the whole working size also can be customized.

1. With heavy-duty gantry and structure, which can guarantee the machine to be strong, reliable and durable.

2. Equipped with air cooling spindle, it has the features of low noise and easy operation.

3. With imported high-precision ball screw and Taiwan Hiwin linear square rails, which move smoothly to ensure the machining precision.

4. Many configurations and service can be available according to your requirement.

5.With 360 degree rotary device and 180 degree swing head

6.With auto tool changer, 12 pcs tools magazine.

Parameter

Description	Parameter
working area	1300x2500mm/15003000mm/20003000mm etc
Table structure	Weld Steel Heavy thick table and frame
Z Structure	Taiwan Guide rail: Z #30 Ball screw (3210)
X, Y Structure	Taiwan Guide rail:#40 Ball screw (4040)
Control system	Taiwan Syntec control system etc
Spindle	180 degree swing head
Inverter	Fuling inverter
Motor and driver	Leadshine / Taiwan Delta / Janpan Yaskawa servo motor and driver
Reducer	Japan SHIMPO
Software	Artcam Type2 JDpaint Powermill
Rotary device	Yes
ATC	auto tool changer, with 12 pcs tools magazine

Application:

The machine hes been widely used in these industry: Die and mold industries: The machine can engrave various large nonmetallic molds, especially for auto foam mold, wooden molds for ship,aviation and train. It is also suitable for precise manufacture of casting wooden mold, food mold (such as moon-cake mold) and other molds,etc. Musical instrument industry: The machine can also engrave large 3D curved surface instruments and contour cutting.

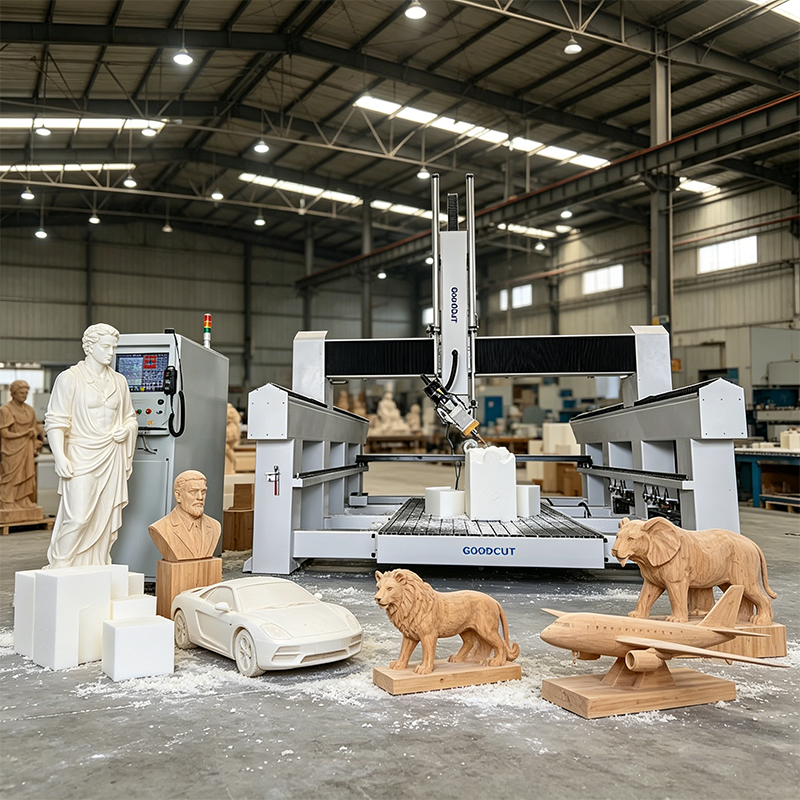

Samples:
