GC1325-BS Blade Saw CNC Router Machine with Double Heads

  • Optional: ATC
  • T-slot table with PVC
  • DSP / LNC / Weihong control system
  • Fuling brand Inverter
  • Product description: CNC router with blade saw Can add auto tool changer Double heads, spindle head and blade saw head
  • INQUIRY   EMAIL

GC1325-BS Blade Saw CNC Router Machine with Double Heads

Features:


1. This cnc router machine designed with saw, high speed cutting . Machine body design with high strength and double driving motors of Y axis, which have more reasonable design, fast processing speed, easy-operated maintenance and low fault rate.

2. Advanced CNC processing system has powerful functions and humanized operation, as well as can receive data through U disk or network.

3. Imported and high precise linear guide ways have features such as stable operation, high precision and steady support, which prolong service life of machines.

4. Z axis adopts imported ball screw with industrial level can positioning accurately and make processing effects more perfect.

5. Energy-saving vacuum absorption table function and dust collectors can protect the environment.

6. Software has good compatibility. The machine can be compatible with various CAD/CAM design & making software such as TYPE3, Artcam, JD, Artcut, UG, MasterCAM, PowerMill and so on.


7. Panel saw blade, can cut the plate material with high speed and easy.


8. Optional: Auto tool changer part.

Parameters:

1

Working area

2500*1300*300mm

2

Spindle

6kw / 9kw HQD air cooling spindle

3

Machine structure

8mm thickness welded steel tube,cast iron vertical shafts and steel gantry

4

Spindle speed

0-24000rpm/min

5

Guide rail

Taiwan Hiwin linear square guide rail

6

Driving method

X,Y axis by helical gear rack,Z axis by TBI ball screw

7

Motors and drivers

Leadshine hybrid servo motor / servo motor and driver

8

Control system

DSP / LNC / Weihong / Mach3

9

Inverter

Fuling inverter

10

Max.idling speed

25m/min

11

Max.working speed

12m/min

12

Machine structure

8mm thickness Heavy duty thicker welded steel tube

13

Panel saw blade

Yes

14

Control cabinet

Independent

15

Auto tool changer

optional

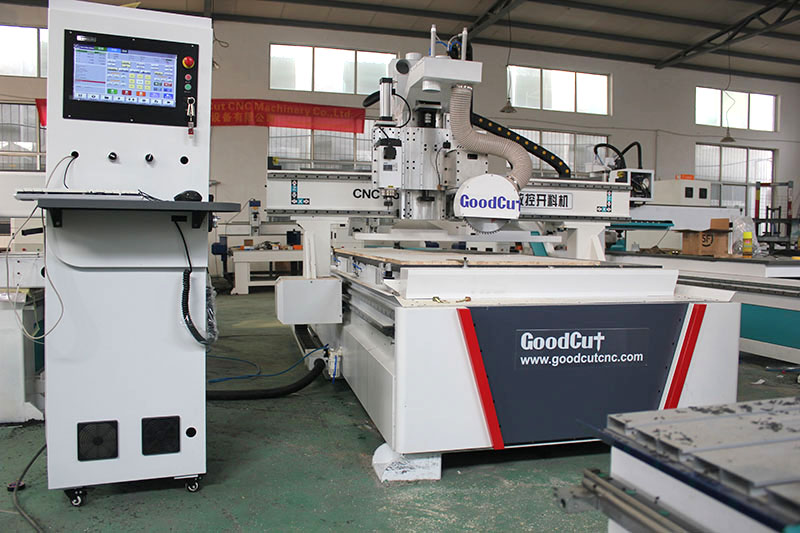

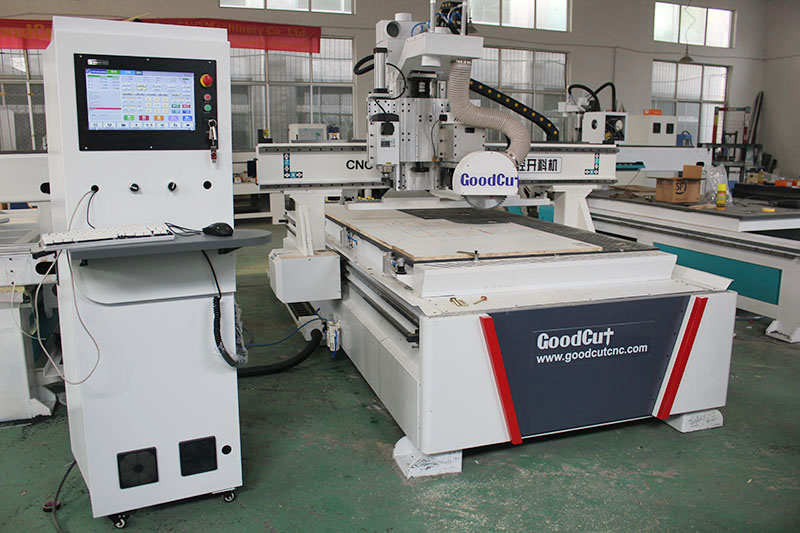

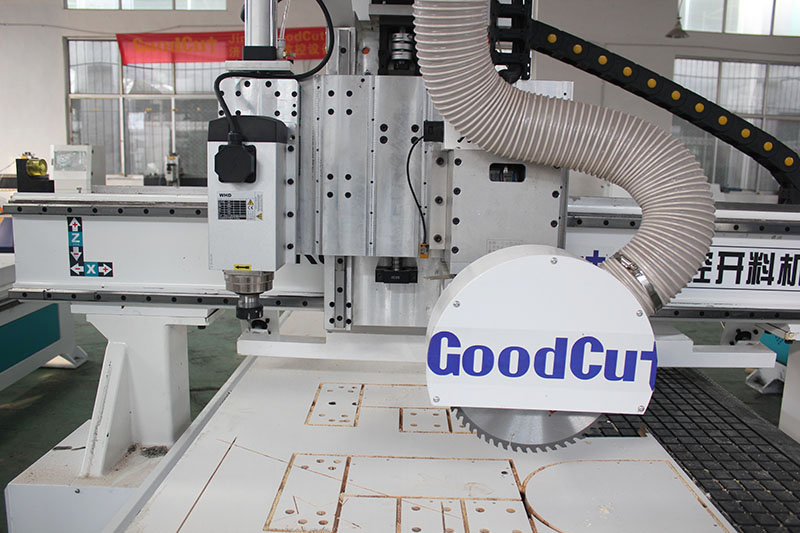

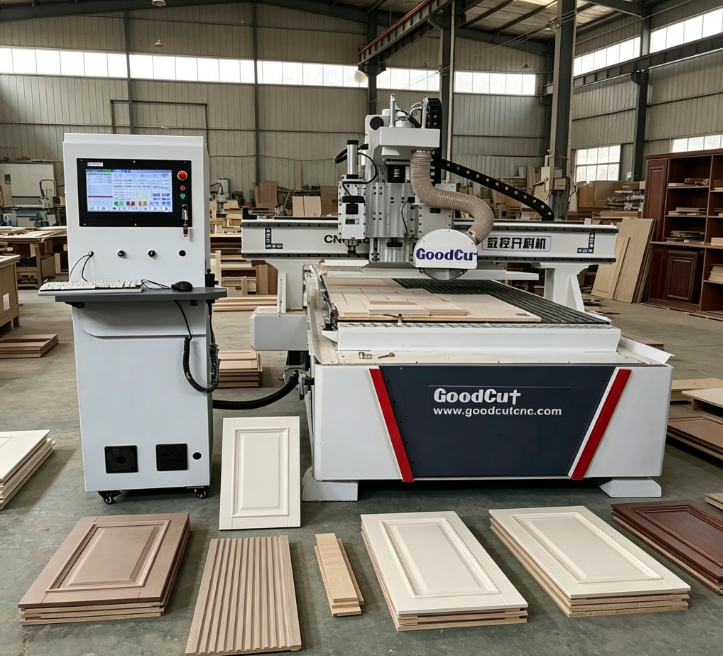

Machine details:


Application:

Industries:

Furniture &Decoration industry(Woodworking, door, curtainwall, decorative partition)

Sign& Advertising (Signage Indoor & Outdoor, Engraving& Bas-Relief, 3D Letters)

Models & Prototyping

Plastics & Composites (ACP, ACM and solid surface material etc)

Non-ferrous metals & Marine

Materials:

Wood: Plywood, Soft Wood, Hard Wood, MDF, Chipboard, etc.

Plastic: Acrylic, ABS, HDPE, PVC, UHMW, HDPE, etc.

Metal: Aluminium, Brass, Copper, etc.

Composite: Aluminium Composite, Copper Composite, Titanium, Composite, Zinc Composite, etc.
