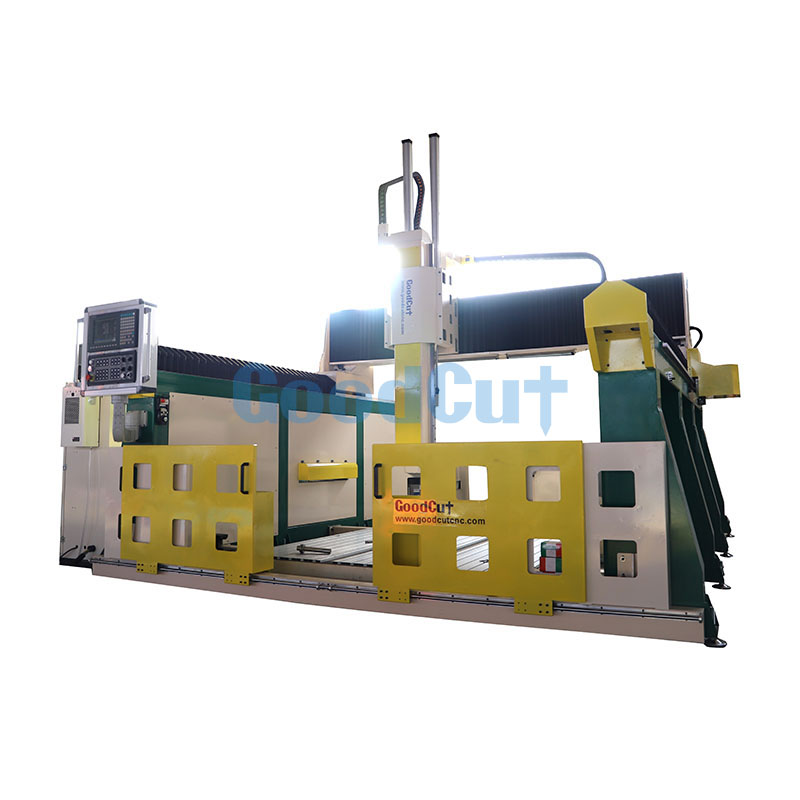

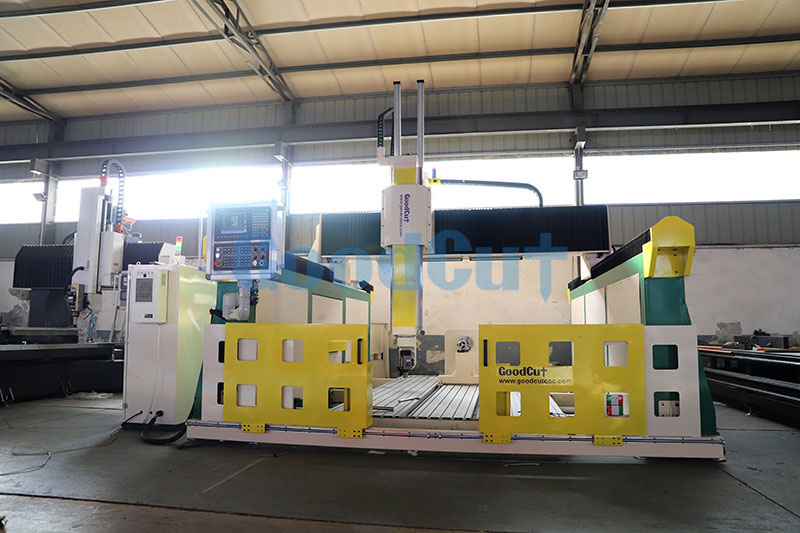

GC-1325-5 Axis 6 Axis CNC Router With Rotary Big Size High Z Axis Industrial Machine For Wood Foam EPS 3D Milling Carving


GC-1325-6Axis CNC Router:

GC-1325-6Axis series is a powerful high performance production machine for large format 6 axis CNC machining.

It comes as standard with a 12kw HSD spindle, Yaskawa digital closed servo transmission, helical rack and pinion with a moving gantry design. It also has the option of a precision machined cast steel T-Slot work table for accurate fixturing of large moulds.

The 6 axis CNC machine is used extensively in the mold making, boat building/marine and pattern making industry.

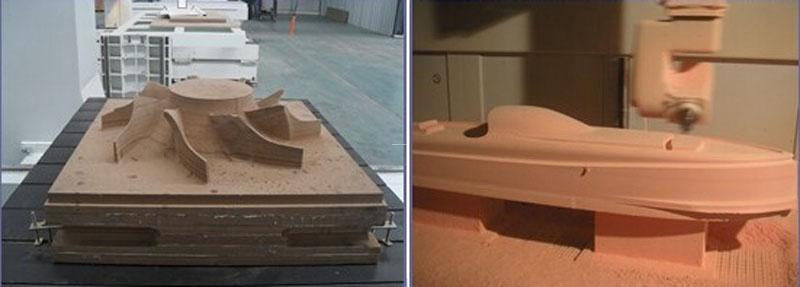

Mold industries: sculpture, large non-metallic mold, car lost foam pattern, wooden ship model, wooden model aviation and other wood mold.

Non-ferrous metals: aluminum, copper, alloys and other ligh non-ferrous metal processing.


Parameters:

NO.
Description
Parameter
1
Model
GC1325-6Axis
2
Table Size
1300×2500*600mm
3
ATC

Linear / Disk auto tool changer, 12pcs Tool Magazine

4
Head
5 Axis Chinese DEMAS head
5
Spindle

HQD/ HSD 12kw air cooling spindle

6

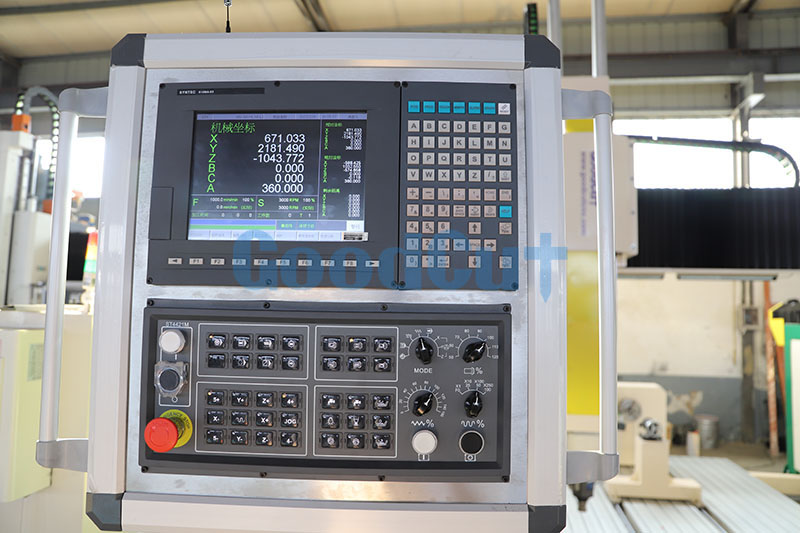

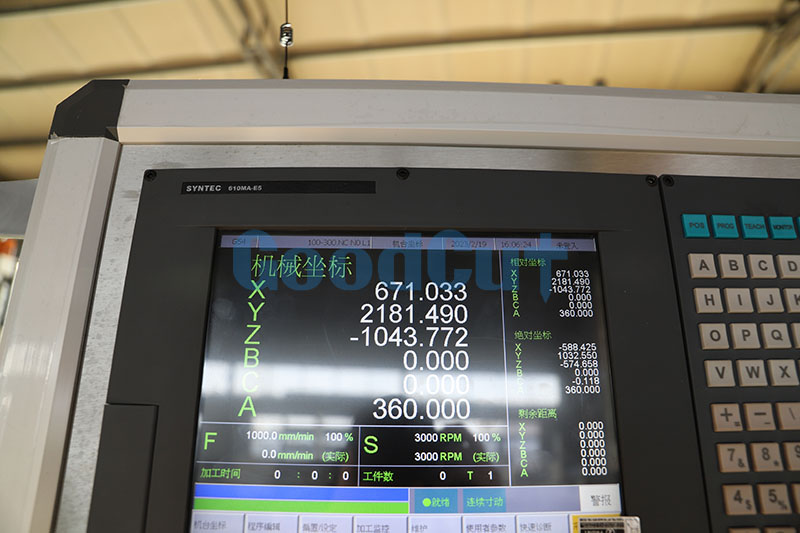

Controller
Taiwan LNC controller / Taiwan Syntec controller
7
Motor

Leadshine servo motor 1500w / Japan Yaskawa servo motor

with Japan Shimpo reducer

8
XYZ transmission

  Taiwan HIWIN 30mm rail and ball screw

YYC Rack

9
Inverter
Fuling inverter
10
Table
Aluminum table with T-slot
11
Bed
Heavy duty frame and bed
12
Oil system
Auto oil system
13
Sensor
Auto sensor

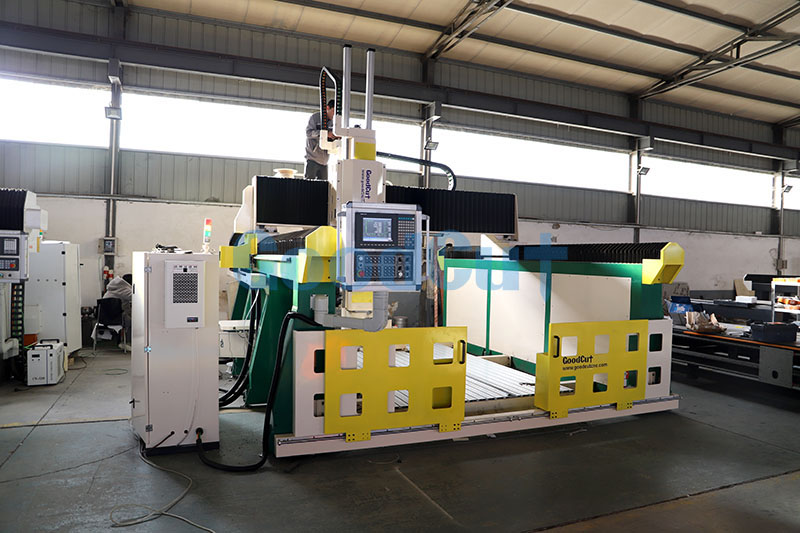

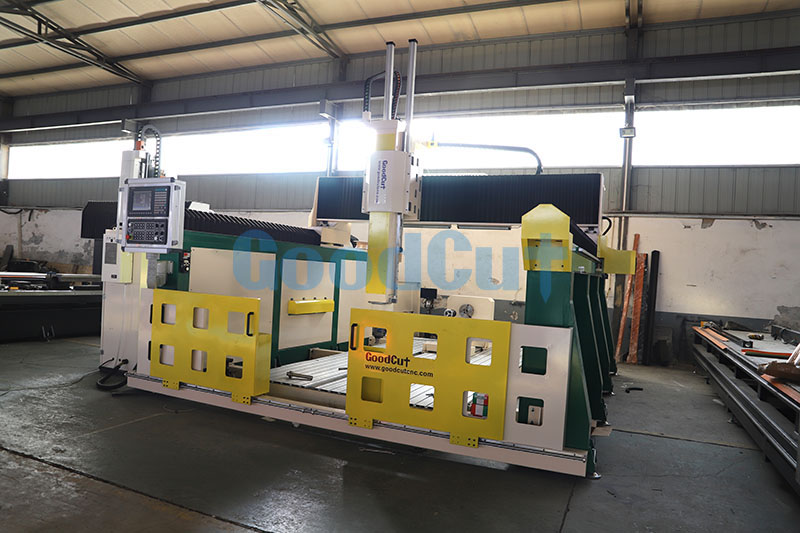

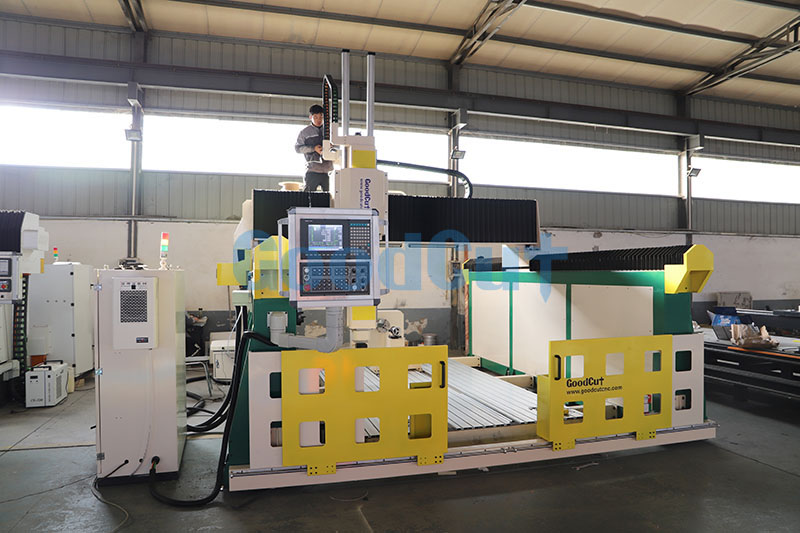

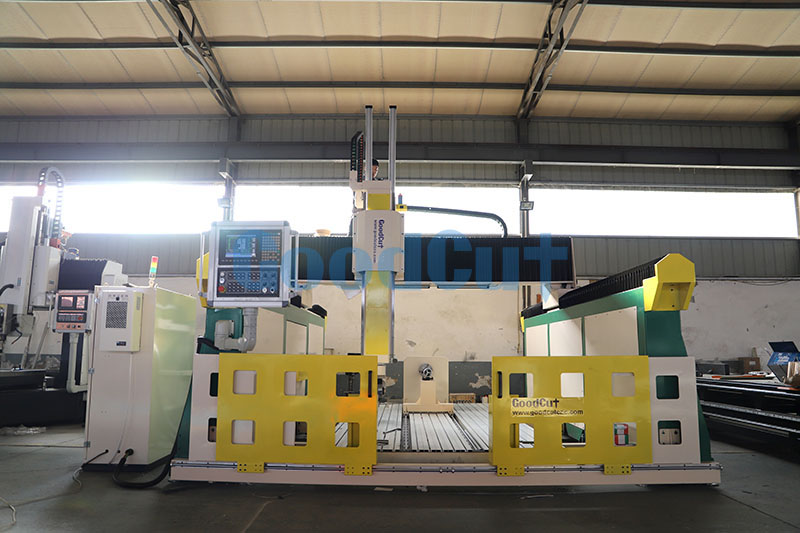

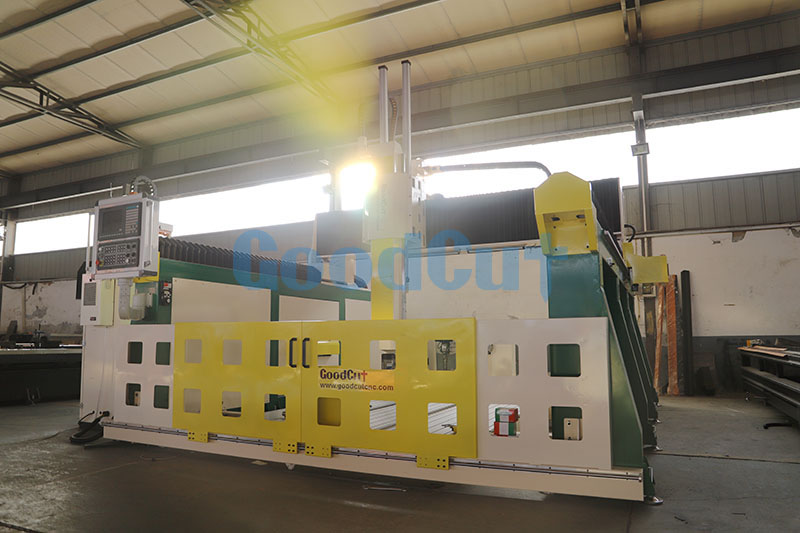

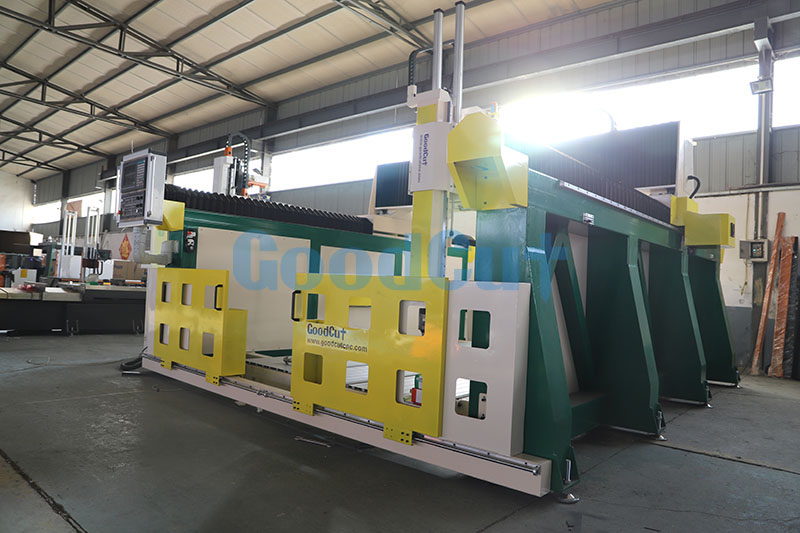

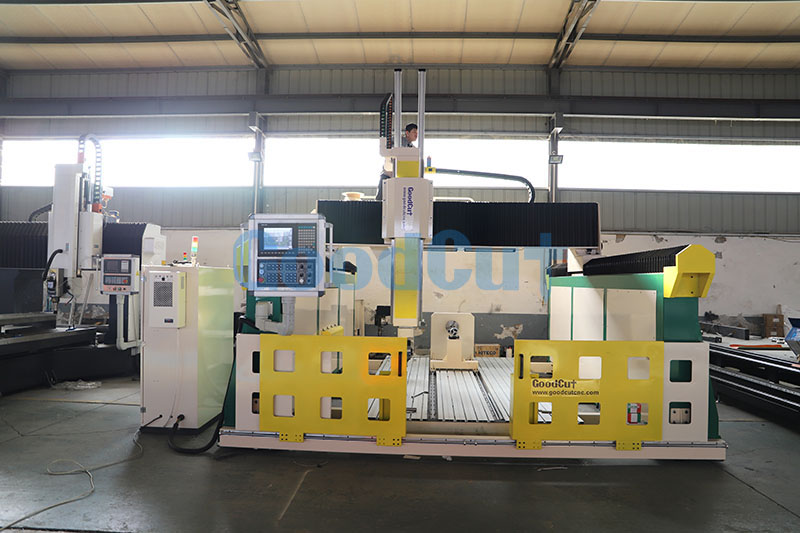

Machine details:



6 Axis CNC Router Machine Optional Items

1. Precision machined cast steel T-Slot work table for accurate fixturing of large moulds.

2. Oil Mist cooling system for cutting non-ferrous metals.

3. Automatic machine lubrication system.

4. Extra tool holders.



Application:
