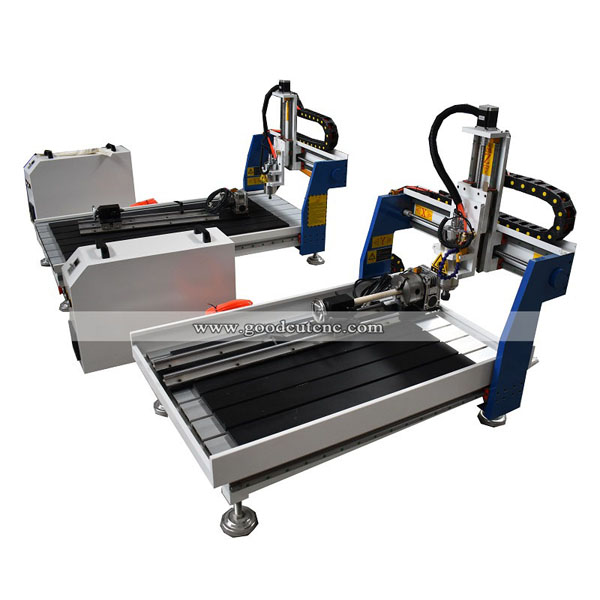

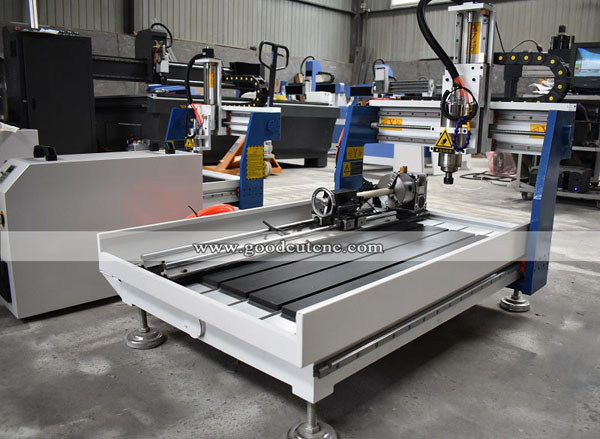

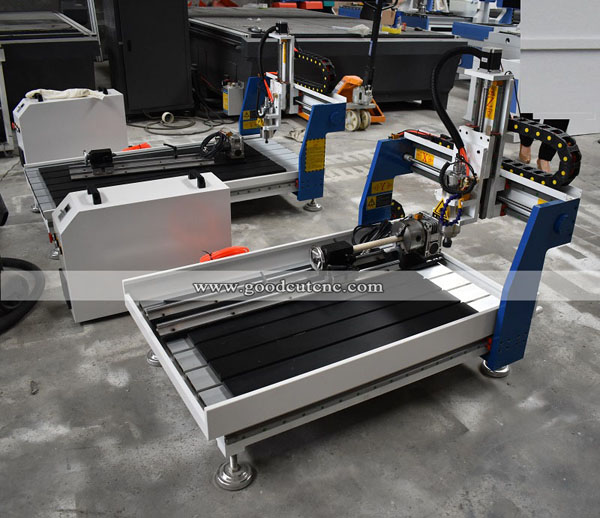

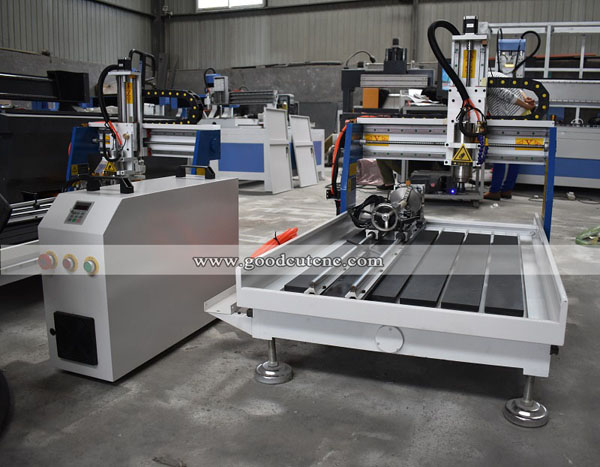

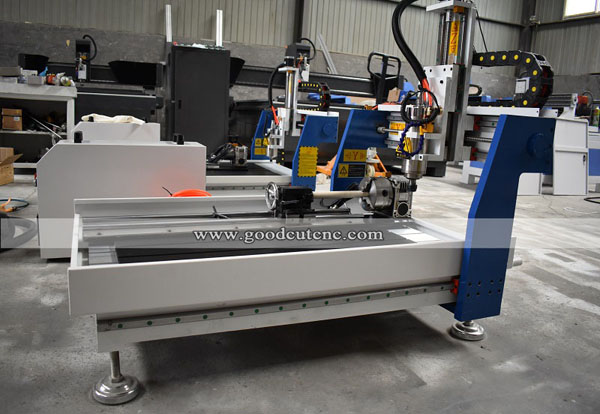

Desktop Machine CNC GC6090D Mini CNC Router For Wooden

  • Aluminum pvc table T slot
  • DSP/Mach3 control system
  • 600x900mm working area
  • Leadshine motor
  • Product description: Working area: 600*900mm Control system: DSP/Mach3 Inverter: Fuling brand Spindle: 1.5kw/2.2kw/3kw HQD/ Italy HSD spindle
  • INQUIRY   EMAIL

Desktop Machine CNC GC6090D Mini CNC Router For Wooden

Features of Desktop Machine CNC GC6090D Mini CNC Router For Wooden:


1. Maximum working area: 600*900*150mm

2. 1.5kw top quality water cooling spindle, with 1.5kw high quality inverter

3. Taiwan TBI ball screw for all axis transmission: X, Y 2510 model ball screw, Z axis 1605 model ball screw.

4. Stepper motor: X, Y axis with 86BYG450A model stepper motor, Z axis with 57BYG76 model stepper motor.

5. Drive: Leadshine driver top brand in China.

6. Control system: Mach3 control system.

7. Commond code: G code, HPGL

8. Working speed: 0-15m/min

9. Collet: 3.175-6mm (depending on your spindle power)

10. Type3, Artcam software

11. 220v, 1 phase, 50-60HZ

12. Advanced auto tool sensor

13. Plywood case package



Parameters of Desktop Machine CNC GC6090D Mini CNC Router For Wooden:


Description

Parameters

Model

GC-6090

X, Y working area

600mm*900*150mm

Feeding height

150mm

Structure

Aluminum casting structure Gantry moving type

Movement part

X Y Z-----1605 ball screw;

X &Y axis: 20 round rails;   Z axis:12 round shaft

Motor

X Y:57BYG76;    Z:57BYG56

Driver

YOKO 2608/ Leadshine860H

Spindle power

1.5kw water cooling spindle

Working speed

0-4000mm/min

Control system

Mach3 controller

Command code

HPGL, G-code

Working precision

0.05mm/300mm

Repeatability

0.01mm

Power

AC220V+10% 50-60Hz

Compatible software

Type3/Artcam/UG/pro-E/Mastercam/UcancamV8 etc



♦ 600x900x150mm working size

♦ 1.5 kw water cooling spindle

♦ T-slot vacuum working table

♦ NC Studio controller

♦ Stepper motor and drive

♦ Beta interver

♦ ArtCam software

Option:

♥ Dust Collector system

♥ AC Servo motors

♥ HSD Spindle

♥ Rotary Axis




Applications of Desktop Machine CNC GC6090D Mini CNC Router For Wooden:


Advertising industry, seal industry, craft and gift, art mould, wood working, mould etc. applicable material including on acrylic, double-color board, PVC, ABS board, stone, imitation stone, metal,Aluminum Mold etc.

Woodwork industry: sewing machine table, machine cabinet panel, sporting equipment, wooden door etc.

Advertising industry: engrave and cut various signboards, marble, copper, character mold, font. And various metal sign, brand.

Craft & gift industry: engrave various word or graph on the souvenir and handicraft, ironwork engraving, dials.

Mould industry: architecture, Gilt membrane, electric machinery, high frequency mold, moulding on shoes, badge, embossed mould, biscuit, candy, chocolate mould.

Stamp industry: it is easy and convenient to seal on various materials such as ox horn, plastic, organic board, wood etc.
