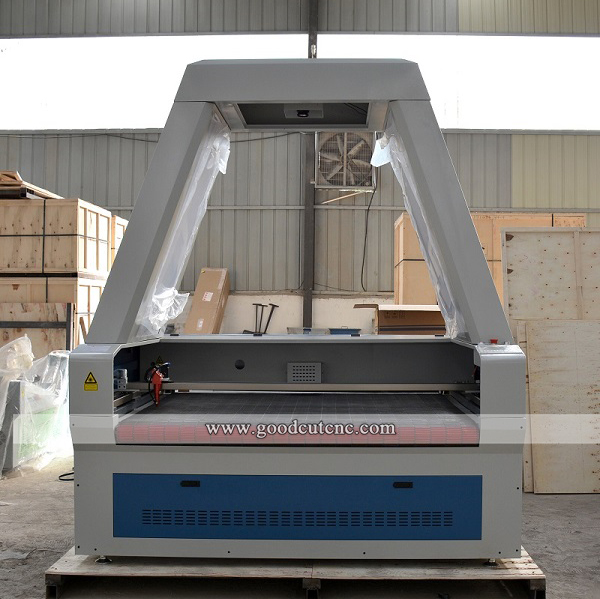

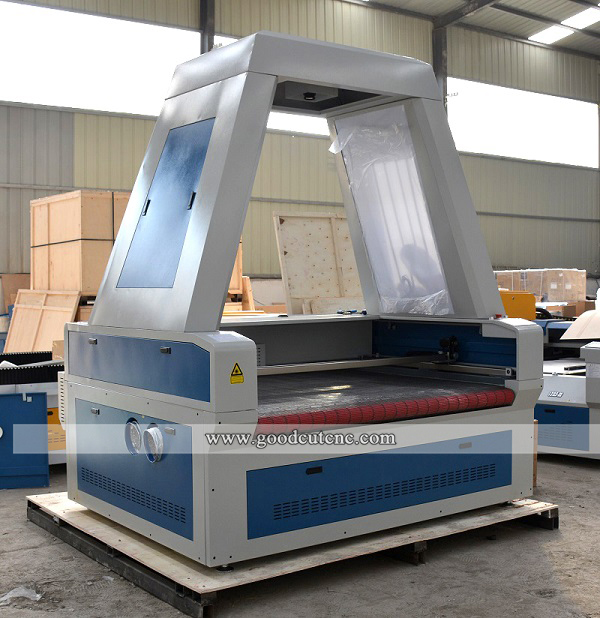

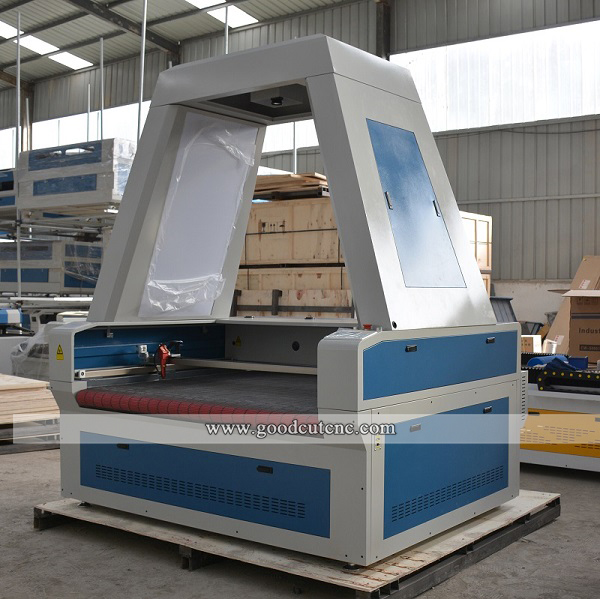

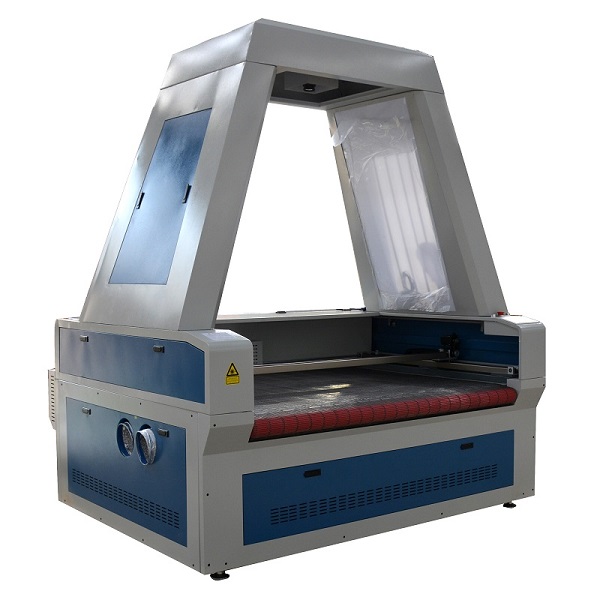

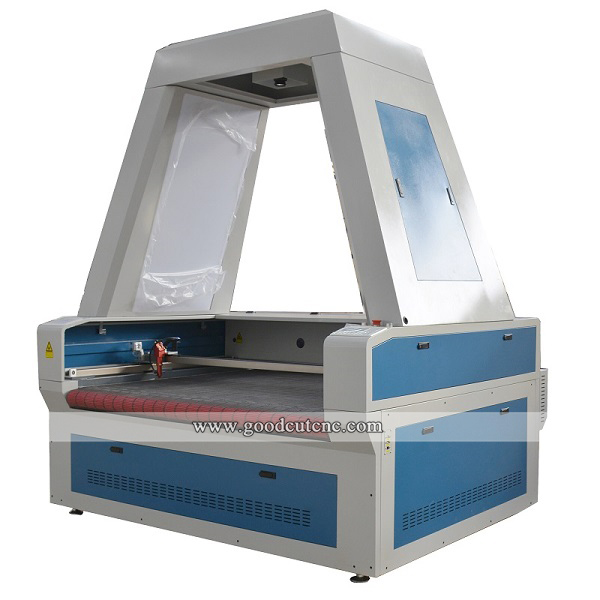

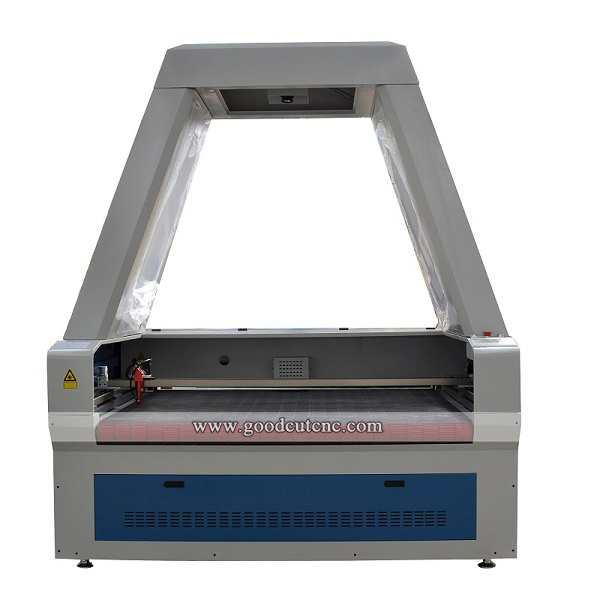

GC1390LA CCD Camera Co2 Laser Cutting Machine With Optical Image and Label Recognition System

  • Model: GC1290LA, GC1390LA, GC1610LA
  • CCD Camera Laser Cutting Machine With Optical Image and Label Recognition System
  • Laser tube brand: Beijing Reci EFR
  • Control system: DRW/ Ruida controller
  • Product description: CCD CO2 Leather Laser Cutting Machine with Auto Feeding big vision camera ccd scanner laser machine
  • INQUIRY   EMAIL

GC1390LA CCD Camera Co2 Laser Cutting Machine With Optical Image and Label Recognition System





This model is CO2 laser cutting machines with full frame CCD camera designed for efficient processing of printed fabric, leather, textiles and many more,to cut T-Shirt,Logo,shoe upper,leather wallet,key wallet,and many more. Available in different workstations sizes with several power options, these laser cutting systems provide high-quality results at maximum speed.


Model GC1390LA
Laser type RECI CO2 tube
Working area 1600*1000mm/1600*2500mm
Working table Blade or honeycomb table
Laser power Reci 130w/150w/180w/260w optional
Power Supply 220V/50Hz, 110V/60Hz
Min line width ≤0.15mm
Positon accuracy 0.01mm
Repetition accuracy 0.02mm
Cutting speed 600mm/s
Guide rail Hiwin from Taiwan
Transmission method Shanghai Fulong Belt Transmission
Drive motor Leadshine stepper/Panasonic servo for optional
Cooling system Water-cooling with industrial water chiller
Control system Ruida DSP off-line
Control software Coreldraw, Photoshop, AutoCAD, RDCAM
Graphic format support PLT, DXF, BMP, JPG ,AI ,ect
Working environment 0-45ºC,
Operating Humidity 5-95%
Optional parts Rotary device for cylinderical materials
Motorized up-down/lift table


Configuration Instructions
1.laser head type:single head,double head, three-head,four-head.
2.laser power:80w,90w,100w,120w,130w,150w.
3.machine plate:honeycomb plate and knife plate.Different size could be custom-made.
4.motor :two-phase hybrid stepping motor and servo motor.
5.motor driver: two-phase hybrid stepping motor driver and servo motor driver.

Water Cooler

Model: CW3000/CW5000/CW5200


RECI laser tube W6 model:

Unique Mirrors and Lens Cooling Technology




>>Applicable Materia

Non-metal materials such as fabrics, label, rubber, marble, granite, tiles, paper boards, leather,

embroidery, acrylic, glass, plastic, MDF, wooden plates and paper ware etc.
>>Applicable Industry:

Advertising, Embroidery, garments, shoemaking, label processing, arts and crafts, etc
